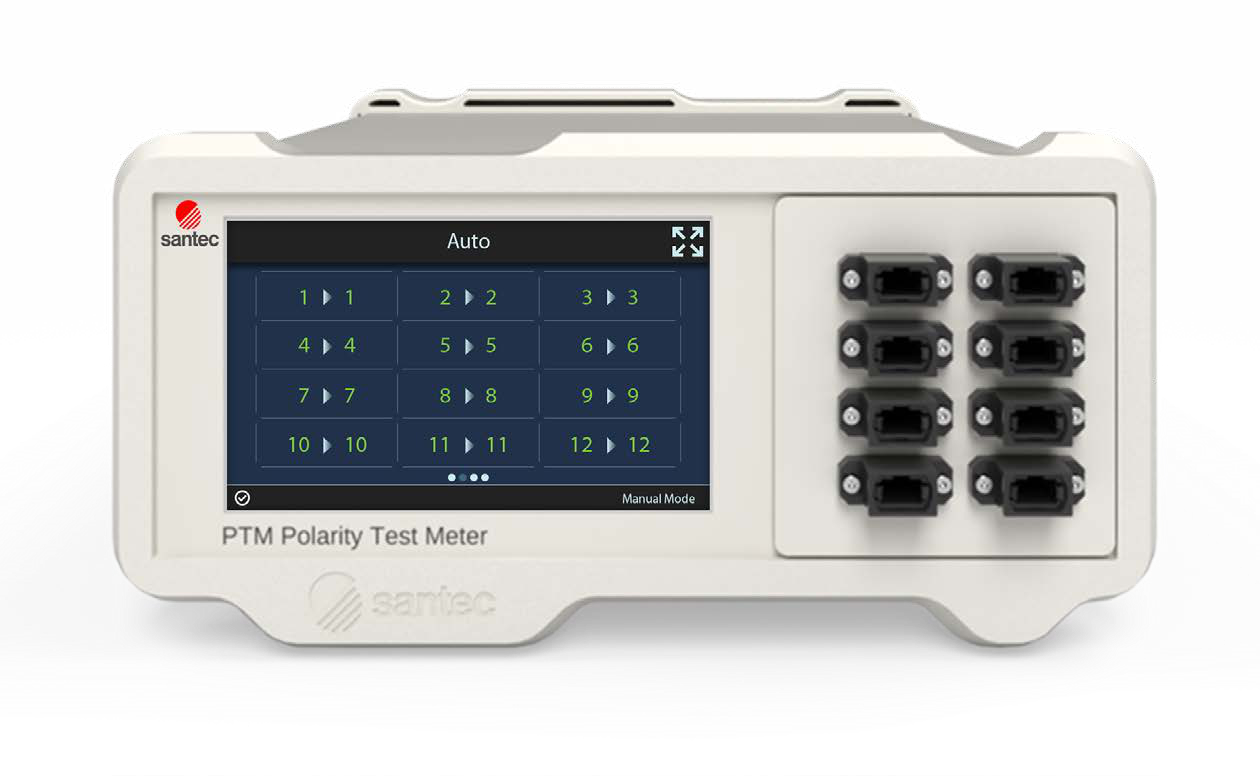

PTM-100 Polarity Test Meter
The PTM-100 is an easy-to-use instrument designed to check the polarity of multifiber cable assemblies. It features a touchscreen interface, fast pass/fail resets, and supports up to 288 channels in one chassis. The device is equipped with a visual fault locator for manual identification of errors and offers traceable testing within seconds.
Save to Favorites
Overview
Specifications

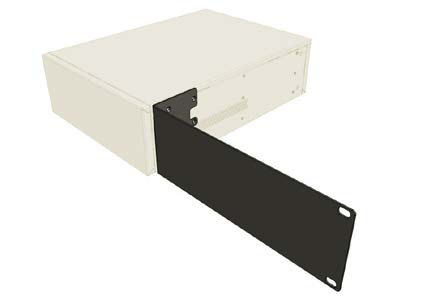

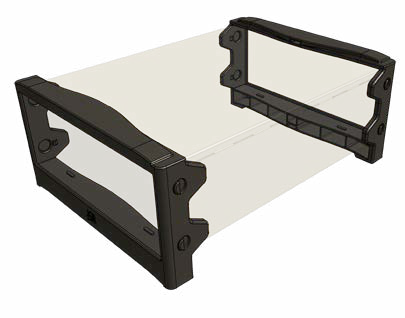

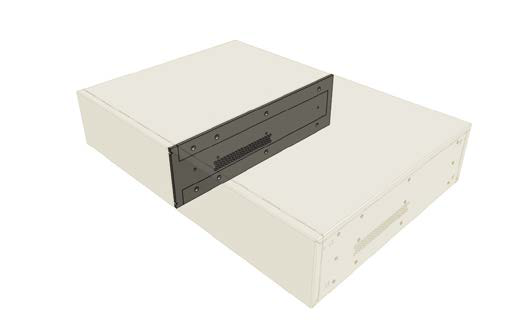

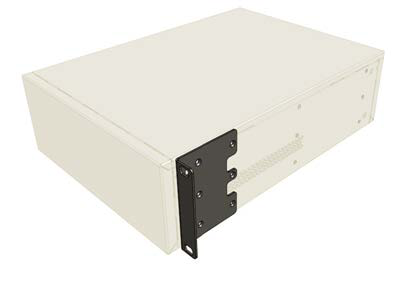

| Parameter | Value |
|---|---|
| Operating Wavelength (nm) | 650 |
| Laser Class | Class 1 |
| Optics Interface | Output: MTP/MPO APC Male (SM), Input: MTP/MPO UPC Male (MM) |
| Detected Polarities | A |
| Detected Polarities | B |
| Detected Polarities | C |
| Detected Polarities | D |
| Detected Polarities | crossed |
| Insertion Loss (dB) | ≤6 |
| Return Loss (dB) | ≥45 |
| Interface | Ethernet/USB |
| Input Voltage | 100-240VAC, 50-60Hz |
| Power Consumption (W) | 80 |
| Max Channel Count | 48 (2U Half Rack), 288 (3U Full Rack) |
| Unit Dimensions (W x H x D cm) | 23.6x12.3x13 (2U Half Rack), 44.8x13x13 (3U Full Rack) |
| Shipping Box Dimensions (W x H x D cm) | 38.5x30x33 (2U Half Rack), 65x55x33 (3U Full Rack) |
| Unit Weight (kg) | 3.5 (2U Half Rack), 6.5 (3U Full Rack) |
| Total Shipment Weight (kg) | 8 (2U Half Rack), 12 (3U Full Rack) |
| Operating Temperature (°C) | 0 to 40 |
| Storage Temperature (°C) | -10 to 40 |
| Humidity (Non-Condensing) (%) | Maximum 95% RH from 0 to 40 |
