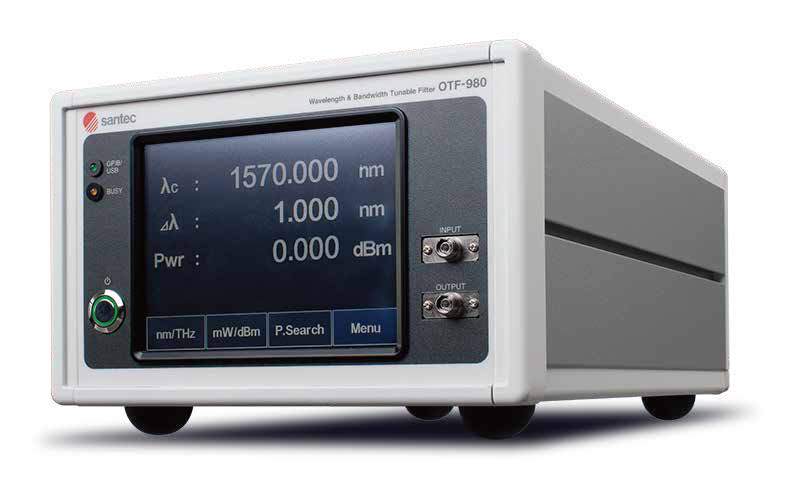

OTF-980
The OTF-980 is a versatile programmable optical tunable filter that allows simultaneous and independent tuning of center wavelength and bandwidth over C & L bands. It is built with novel free-space optics combined with an ultra-fine tuning mechanism to ensure precise filter control and a flat-top passband shape. The device features an integrated power meter, peak search function, and supports GPIB, Ethernet, and USB interfaces for remote control and measurement automation.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Wavelength Range | 1525-1610nm |
| Accuracy | ±0.05nm (typ.±0.03nm) |
| Repeatability | ±0.01nm (typ.±0.005nm) |
| Setting Resolution | 0.001nm |
| Bandwidth @3dB | 0.1 to 15nm (Standard), 0.08 to 4nm (Ultrafine), 0.05 to 3nm (Ultrafine-Plus) |
| Filter Accuracy | ±0.05nm (typ.±0.03nm) |
| Filter Repeatability | ±0.01nm (typ.±0.005nm) |
| Filter Setting Resolution | 0.001nm |
| Filter Slope | 200dB/nm (Standard), 500dB/nm (Ultrafine), 1000dB/nm (Ultrafine-Plus) |
| Maximum Input Power | 27dBm |
| Insertion Loss (Bandwidth ≥0.2nm) | 5±1dB (typ.3.5dB) |
| Insertion Loss (Bandwidth <0.2nm) | 7±1dB (typ.5dB) |
| Crosstalk | 50dB |
| Polarization Dependent Loss | 0.2dB |
| Peak Search Function | Yes |
| Communication | GP-IB (IEEE488.2), USB & Ethernet |
| Display | 5.6 inch resistive touch-screen (640x480) |
| Optical Fiber | SMF |
| Optical Connector | FC or SC |
| Optical Polish | SPC or APC (Angled PC) |
| Operating Temperature | 15 to 35°C |
| Operating Humidity | <80% |
| Voltage | AC100-240±10% |
| Frequency | 50/60Hz |
| Power Consumption | 100VA |
| Dimensions (W×D×H) | 210×350×133mm |
| Weight | 8.5kg |
