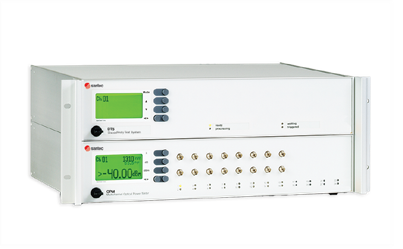

DTS-100 Discontinuity Test System
The DTS-100 Discontinuity Test System provides a method for testing a broad variety of passive and active fiber optic components for susceptibility to discontinuities, signal dropouts, transient outputs, or transmission fluctuations during application of external stimuli such as temperature, vibration, or physical shock. It allows users to capture short optical power interruptions and dropouts every 0.8 to 1 second, and the user-friendly software logs all the events into a spreadsheet for analysis in accordance with EIA/TIA-FOTP-32A.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Detector Type | 300μm InGaAs |
| Wavelength Range (nm) | 830-1600 |
| Power Range (dBm) | -40 to 0 |
| Receiver Bandwidth (MHz) | ≥20 |
| Linear Amplifier Output | 0 to 2.5V |
| Event Distortion | 0.8 to 1.0s |
| Event Amplitude (dB) | 0.5 to 5.0 (selectable) |
| Sampling Interval | 0.4μs |
| Event Trace | 750 samples |
| Data Interface | USB |
| Power Supply | US or European Standards |
| Unit Dimension W×H×D (cm) | 42.5×9.7×25.4 |
| Operating Temperature (°C) | 0 to 50 |
Applications
Key Features
Datasheet
