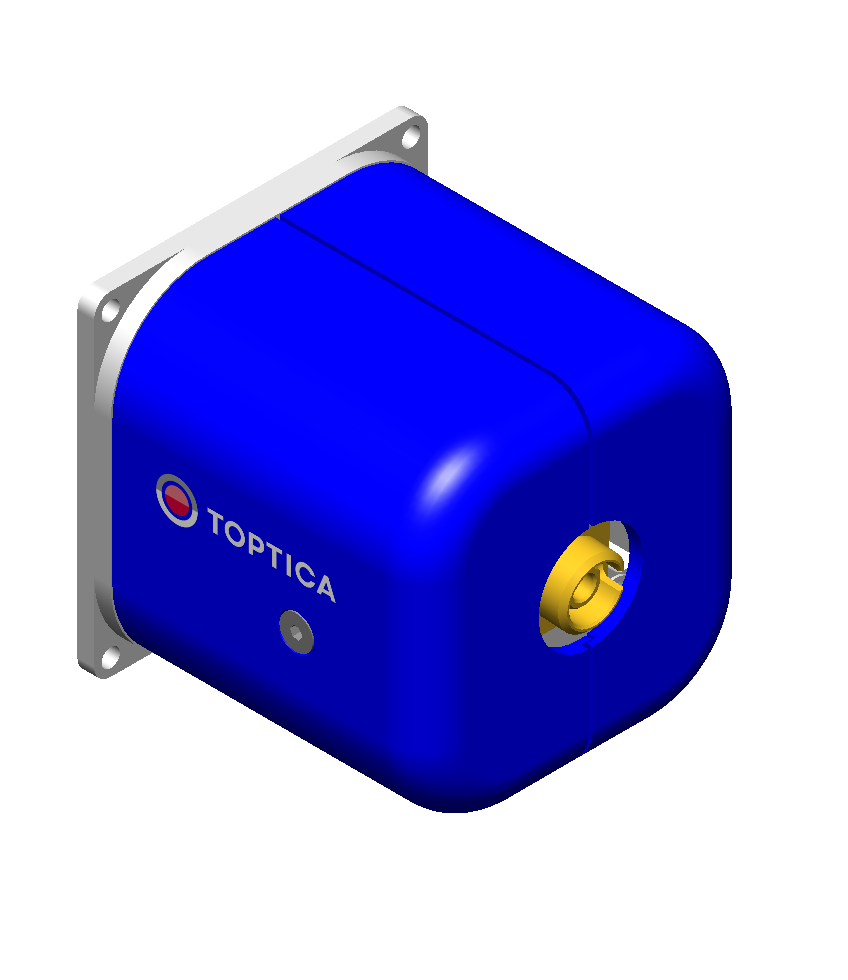

FiberDock
FiberDock is a compact and rugged fiber coupler designed for maximum coupling efficiency and long-term stability. Its modular design accommodates a wide range of lenses and standard fiber types, making it versatile and reliable.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Fiber Type | MM |
| Fiber Type | SM |
| Fiber Type | PM |
| Connector | APC |
| Connector | PC |
| Lens Focal Length | up to 30mm |
| Wavelength Range | 350nm to 2000nm |

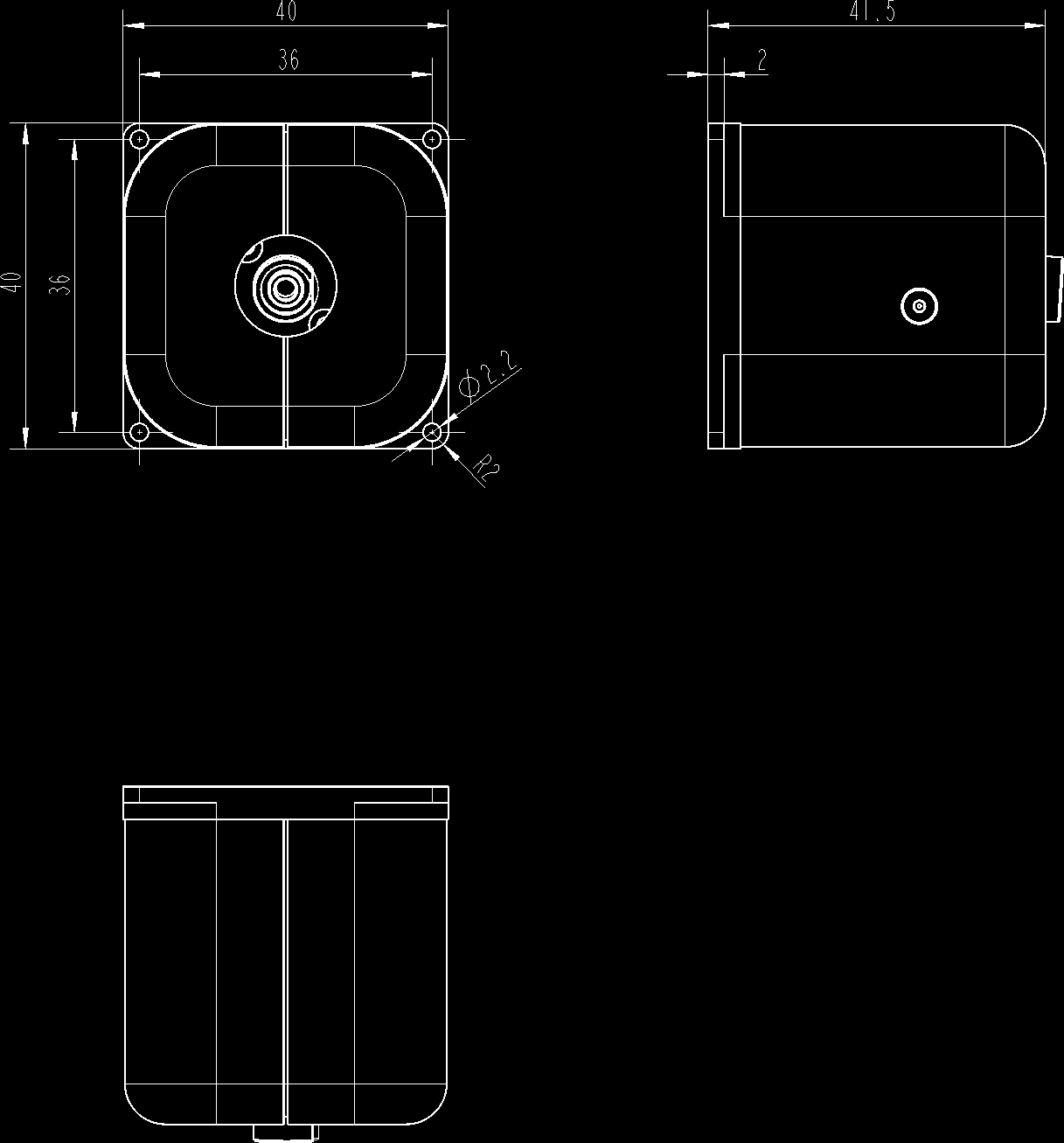

| Size (WxHxL) | 40mmx40mmx41mm |
| Coupling Efficiency | up to 85% in SM Fiber, up to 90% in MM Fiber |
| Beam Diameter | up to 6mm |
| Environmental Conditions | +15°C to +30°C, relative humidity non-condensing |
| Operation Temperature | +15°C to +30°C |
| Transport/Storage Temperature | 0°C to +40°C, relative humidity non-condensing |
| Weight | 230g |
