TITAN™ Multi-Contact Probe

TITAN™ Multi-Contact Probe

Supplier
Ybsemi-Solution
Part Number
TITAN™ Multi-Contact Probe
Category
Probe Station Accessories
Origin
China

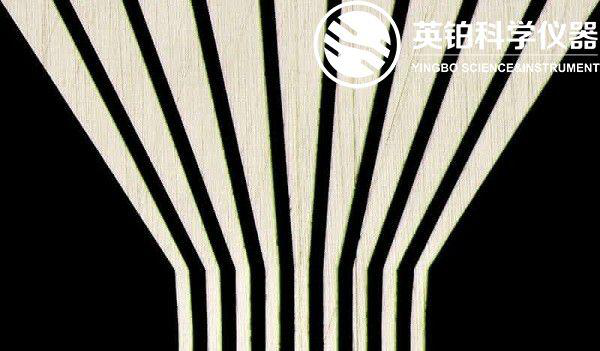

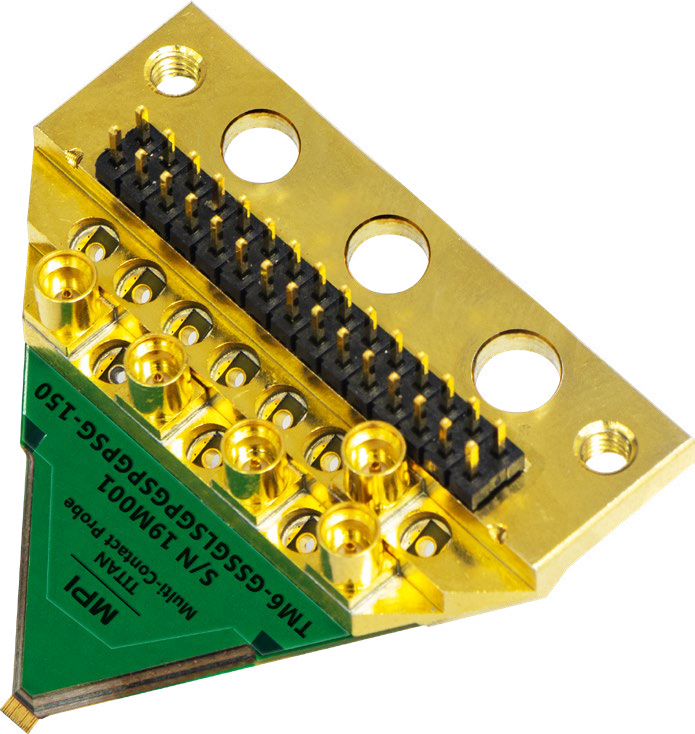

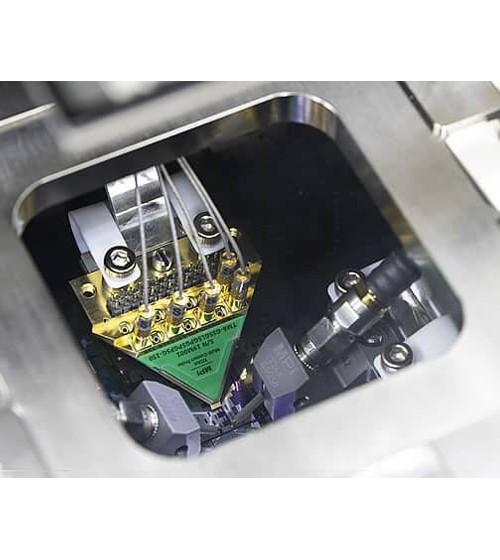

The TITAN™ Multi-Contact Probe is an advanced RF probing technology designed for the characterization of RF ICs. It supports up to 15 contacts that can be individually configured for RF, logic signals, or bypass power supply, offering excellent impedance matching, electrical characteristics, and unique tip visibility.

Specification Snapshot
Standard RF (GSG, GS) Frequency Range
Up to 6GHz
Standard RF Insertion Loss (Without cable assembly)
3dB
Standard RF Insertion Loss (With cable assembly)
5dB
Standard RF Return Loss
10dB
Minimum IC Pad Size (Width×Length)
从25×20μm到70×40μm,取决于触点Quantity and 间距
Request a Quote Download Datasheet Chat
Save to Favorites Save to Favorites

Overview

The TITAN™ Multi-Contact Probe is an advanced RF probing technology designed for the characterization of RF ICs. It supports up to 15 contacts that can be individually configured for RF, logic signals, or bypass power supply, offering excellent impedance matching, electrical characteristics, and unique tip visibility.

Specifications

ParameterValue
Number of contacts3-15
Pitch50μm至150μm,步进25μm;150μm至300μm,步进50μm
Temperature range-40至150°C
Contact width20μm
Quadrant compatibleYes
ShieldEnvironment™ compatibleYes
Recommended overtravel25μm
Contact Resistance<45mΩ
Lifetime>1,000,000次触点
Types of contactG: Ground, S: RF signal (6GHz), L: Logic signal (500MHz), P: Bypass power (DC), X: No contact
DC Contact Type Current (Imax)1.2A
DC Contact Type Voltage (Vmax)300V (S, L), 50V (P)
DC Contact Type Series Resistance (Without cable assembly)0.2Ω

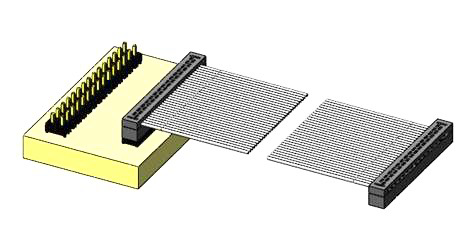

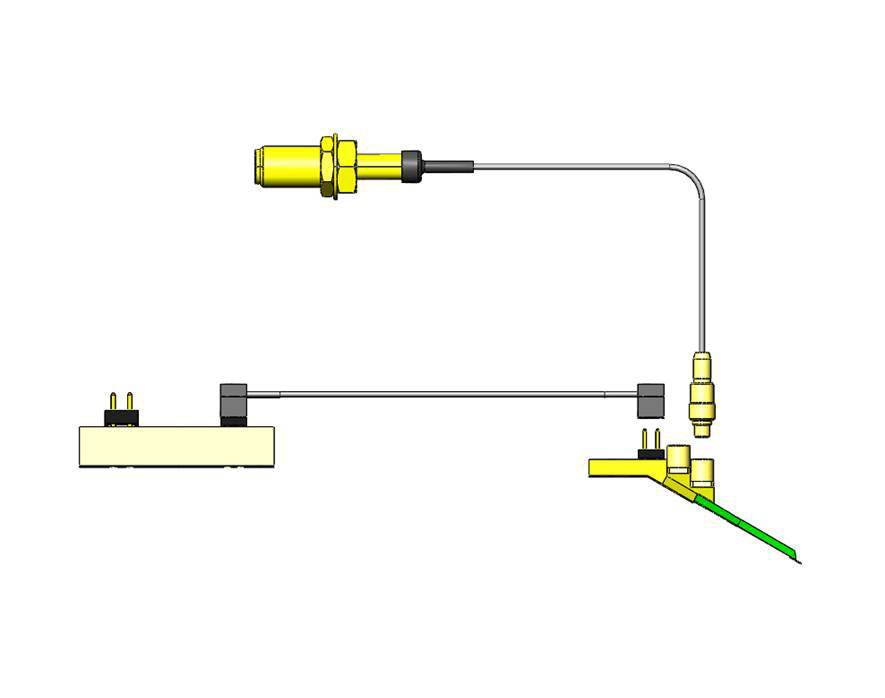

DC Contact Type Series Resistance (With cable assembly)0.7Ω (S, L), 0.4Ω (P)
Standard RF (GSG, GS) Frequency RangeUp to 6GHz

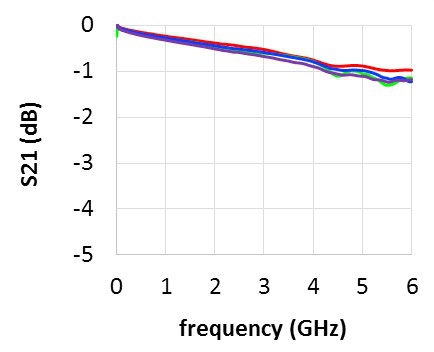

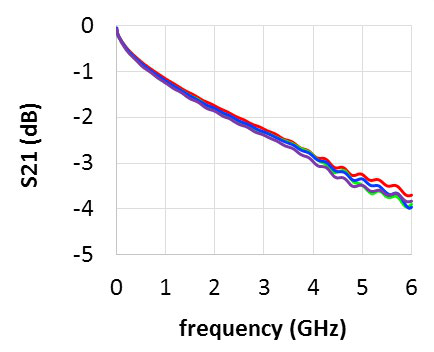

Standard RF Insertion Loss (Without cable assembly)3dB
Standard RF Insertion Loss (With cable assembly)5dB

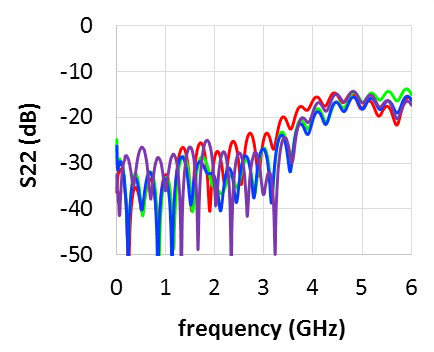

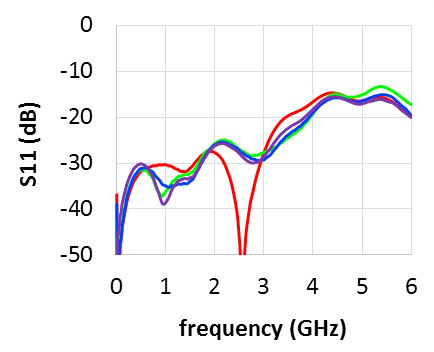

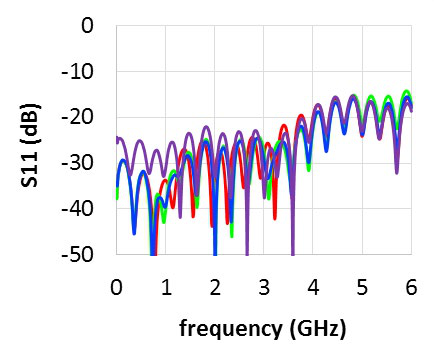

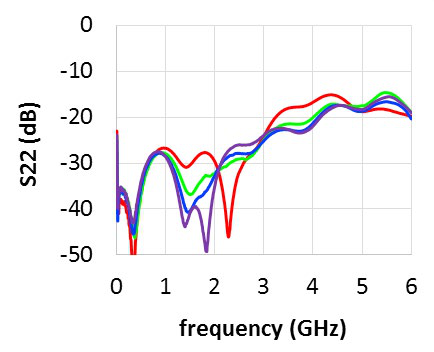

Standard RF Return Loss10dB
Bandwidth for Logic & Nonstandard RF (Without cable assembly)500MHz
Bandwidth for Logic & Nonstandard RF (With cable assembly)70MHz (L), 500MHz (S without adjacent G)
Isolation (50μm to 150μm pitch)20dB (SGS), 15dB (SS)
Isolation (200μm to 300μm pitch)25dB (SGS), 15dB (SS)

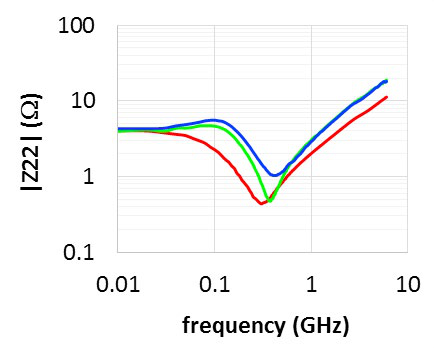

Bypass Power (DC) Impedance6Ω (GPG, G+P+G), 7Ω (GP, G+P)

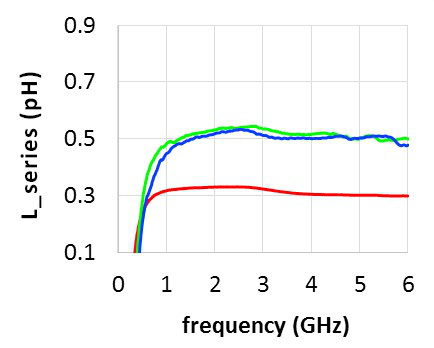

Bypass Power (DC) Series Inductance0.4nH (GPG, G+P+G), 0.7nH (GP, G+P)
Minimum IC Pad Size (Width×Length)从25×20μm到70×40μm,取决于触点Quantity and 间距

Applications

1. Characterization of RF ICs 2. Testing of high-speed digital circuits 3. Power supply and control of modern multi-stage PAs 4. Characterization of large ICs in shielded environments

Key Features

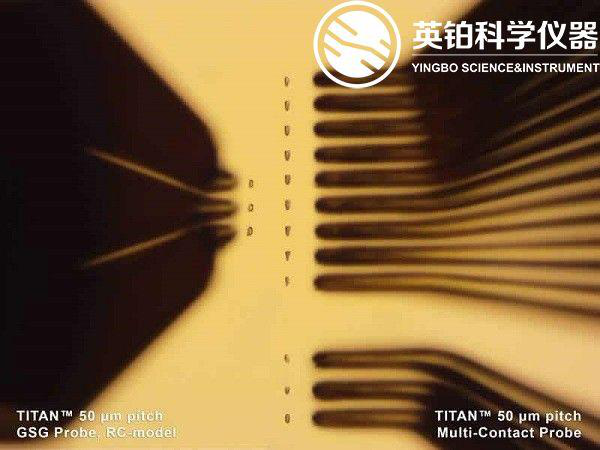

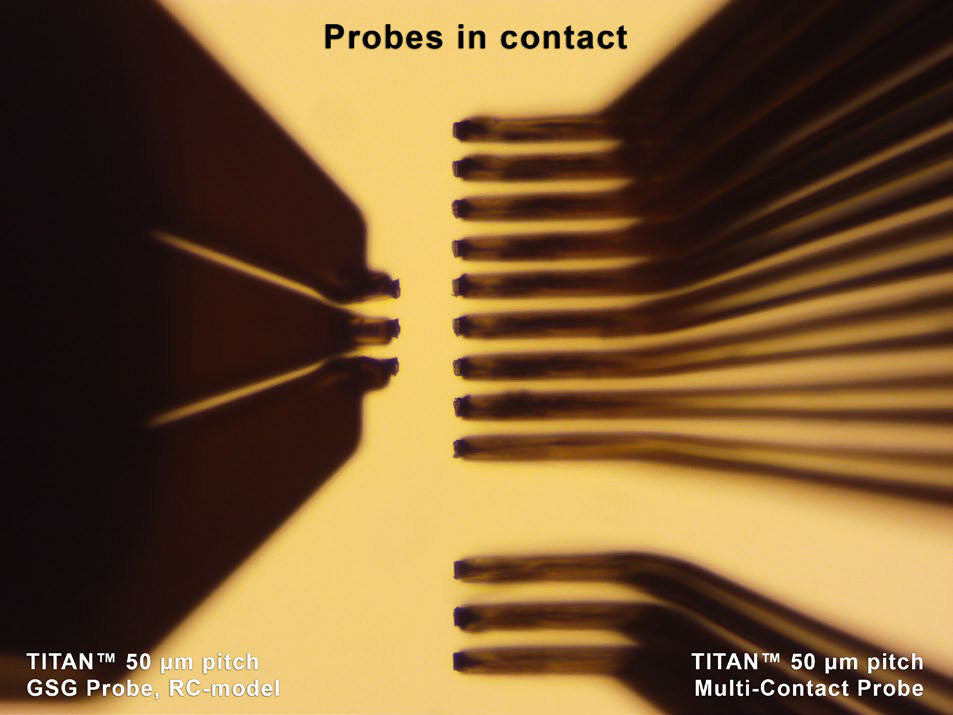

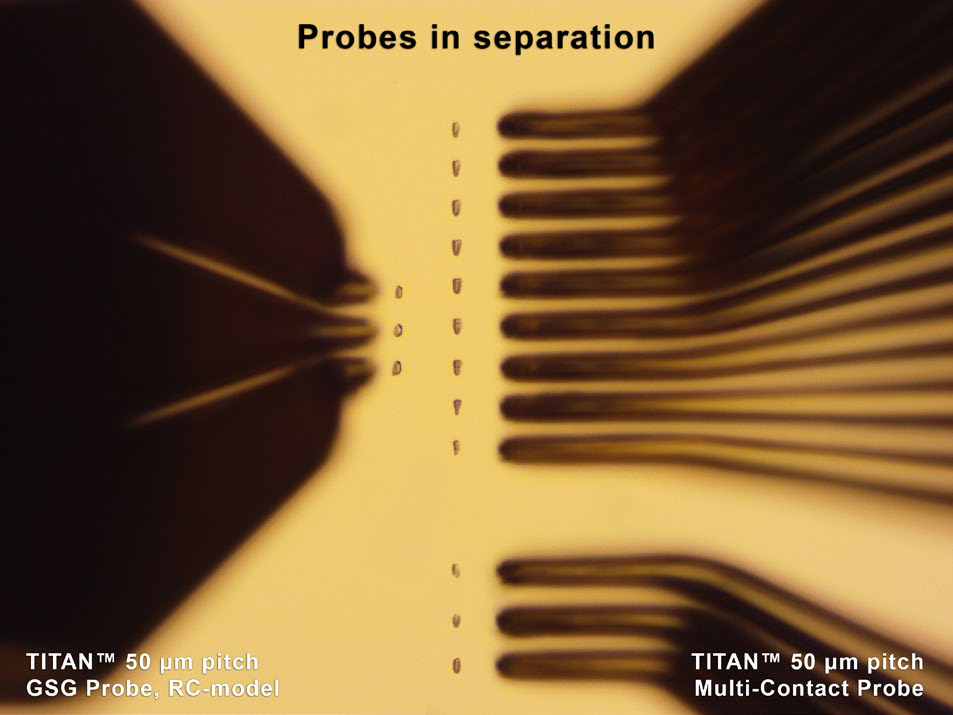

1. Perfectly matches RF channels 2. Unique tip visibility for small DUT pads 3. Accurate results for wireless RF ICs 4. Contact resistance <45mΩ on Al 5. Shortest probe of its kind 6. Over 1 million touchdowns on Al pads 7. Quadrant compatibility for IC pad layout 8. Built-to-order with short lead time

Datasheet

Product Datasheet
PDF
Download
