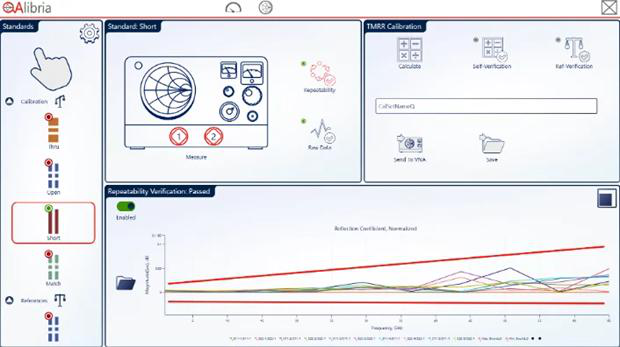

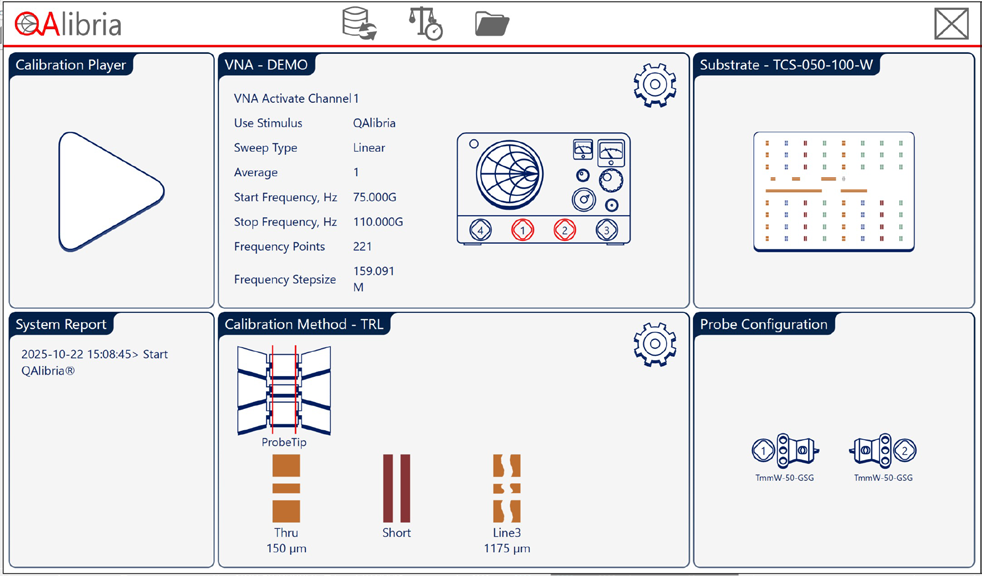

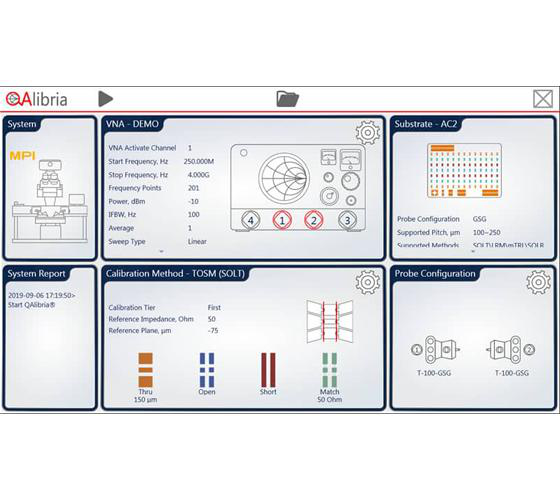

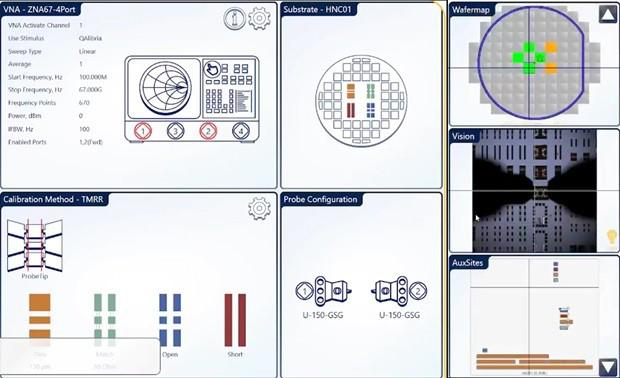

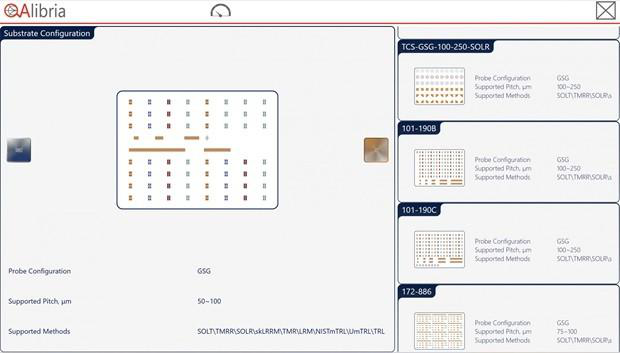

MPI QAlibria RF Calibration Software
MPI QAlibria RF Calibration Software is designed to simplify complex RF system calibration tasks, providing intuitive operation and advanced calibration methods for accurate and efficient results.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Supported VNA | Rohde & Schwarz ZV series ZVA FW3.12, ZN series ZNB FW2.3, ZND FW2.3, ZNA FW1.65(1.71); Anritsu VectorStar series MS464x FW2.2.0, ShockLine series MS4652x FW3.4.02; Keysight PNA-X series N5247A FW A.10.40.12, N5242B FW A.15.60.10, PNA series N5227A FW A.09.80.20, N5227B FW A.12.70.07, E8364B FW A.07.50.67, E8361C FW A.08.04.07, PNA-L series N5232A FW A.10.45.03, N5230C FW A.09.42.22, N5235A FW A.10.40.12; Copper Mountain Cobalt series C1209 FW20.3.1, C2420 FW22.2.2 |
| VNA Interface | NI VISA ver5.0 or later, GPIB, TCPIP |

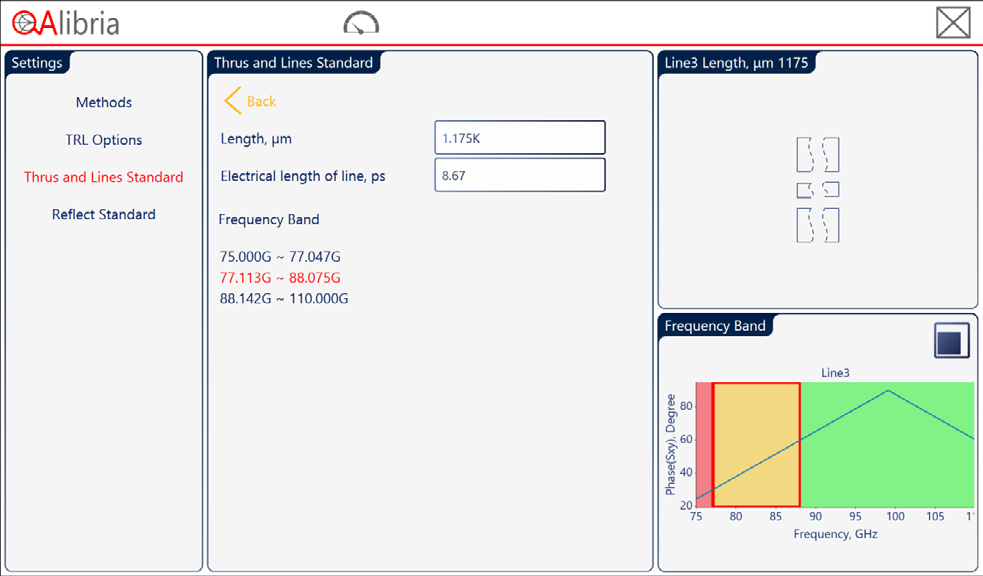

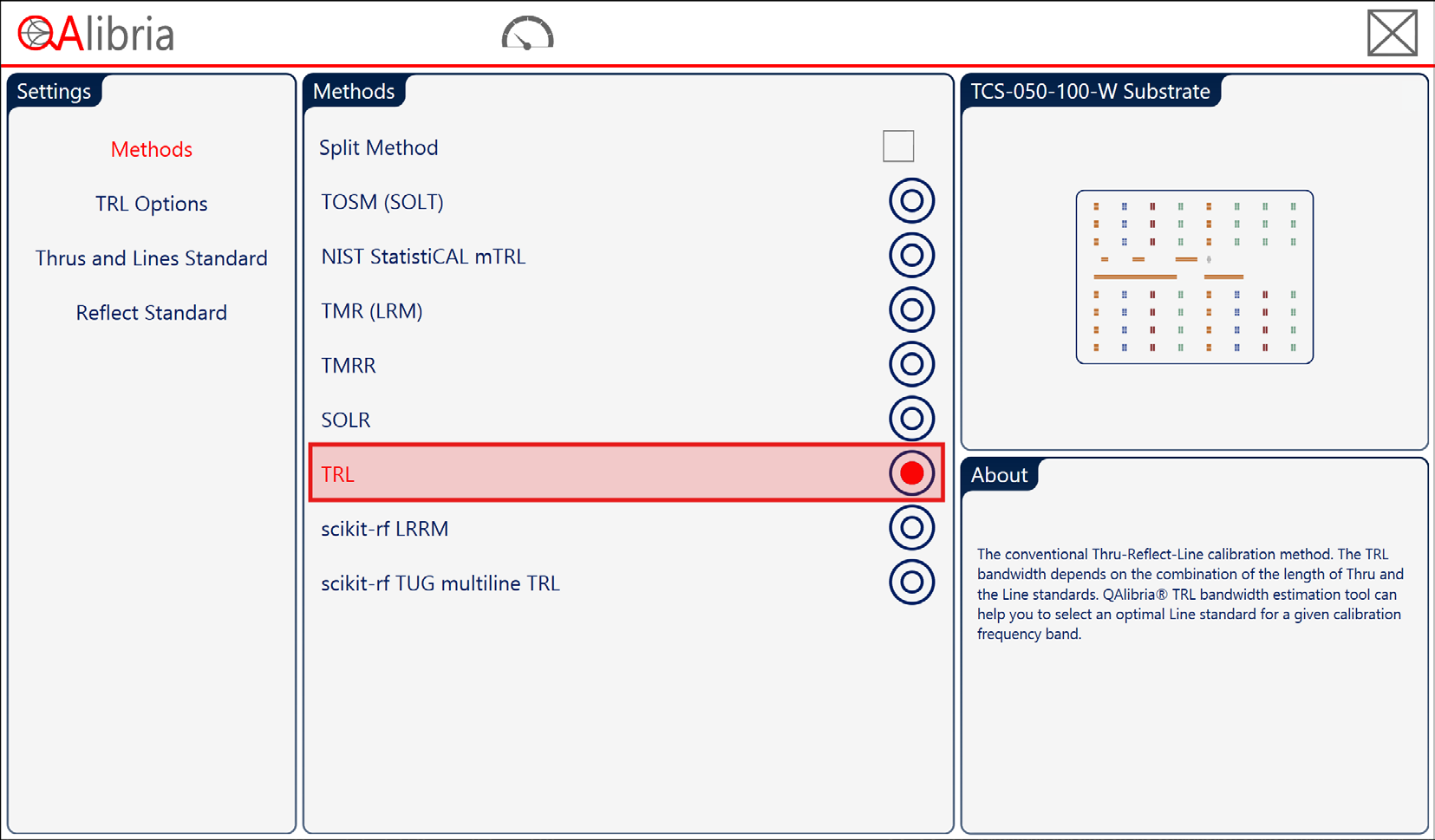

| Calibration Methods | 1-Port SOL(OSM), 2-Port SOLT(TOSM), 2-Port NIST multiline TRL(over integration with NIST StatistiCal Plus), 2-Port SOLR, 2-Port TMR(LRM), 2-Port TMRR, 2-Port TRL, 4-Port SOLT(TOSM), 4-Port TMR(LRM), 4-Port TMRR, 4-Port SOLR |
| Operating System | Windows 7/Windows 10/Windows 11 |
| Processor | Intel Core i3 or better |
| Memory | 2GB or more |
| Required HDD Capacity | 1GB or more |
| Display Resolution and Size | 1366x768, 13"(laptop); 1920x1080, 21"(desktop) |
| Multi-Touch Touchscreen | Recommended |
| GUI Languages | English |
| GUI Languages | Chinese |
| GUI Languages | Japanese |
| GUI Languages | Russian |
| GUI Languages | German |
