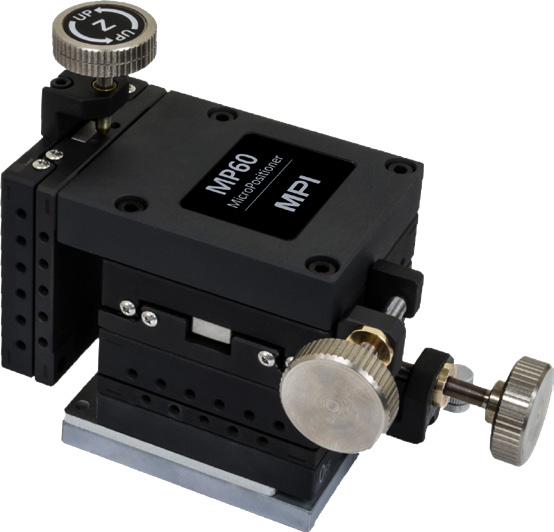

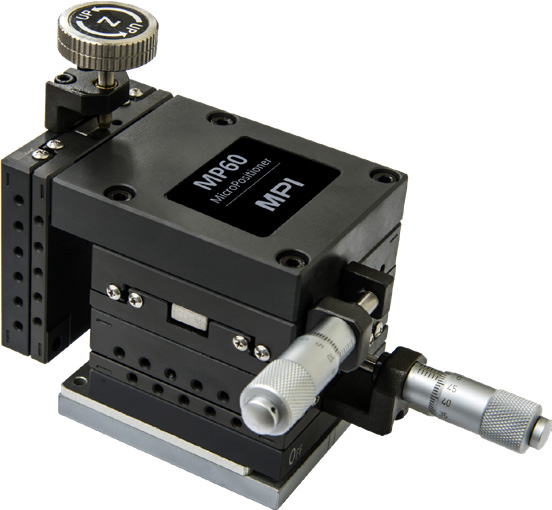

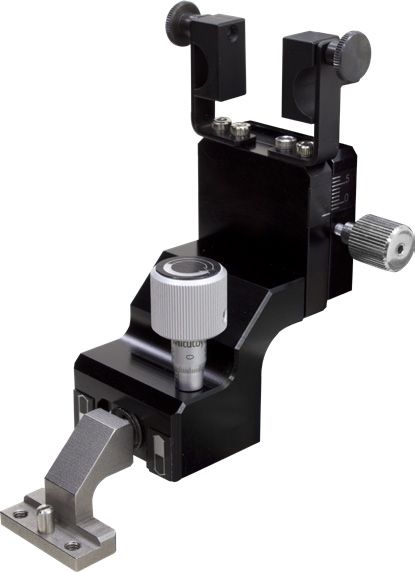

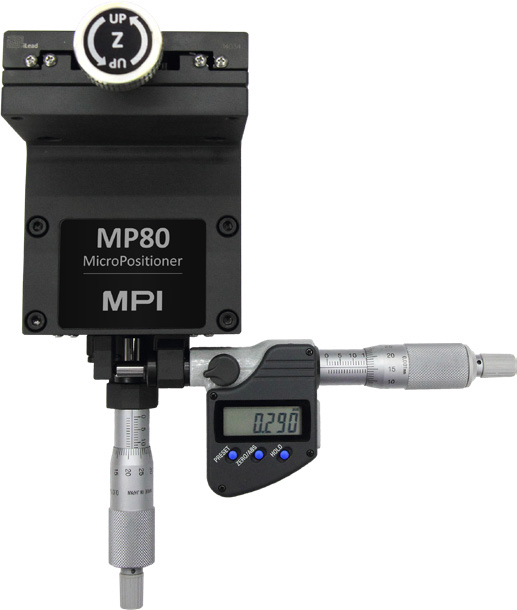

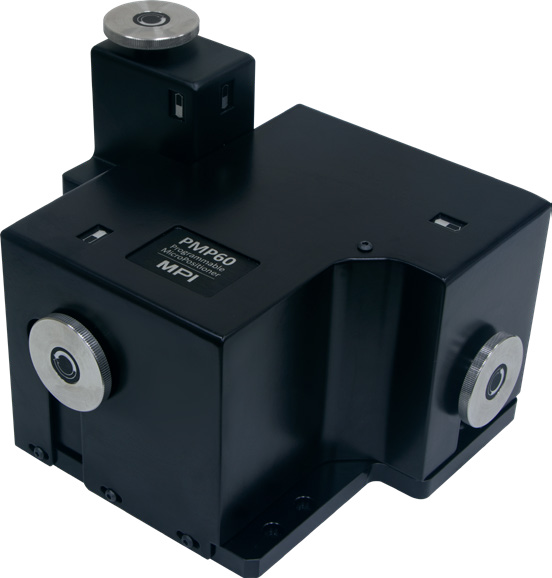

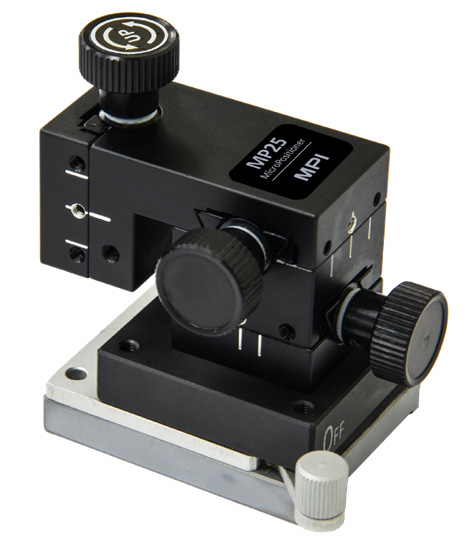

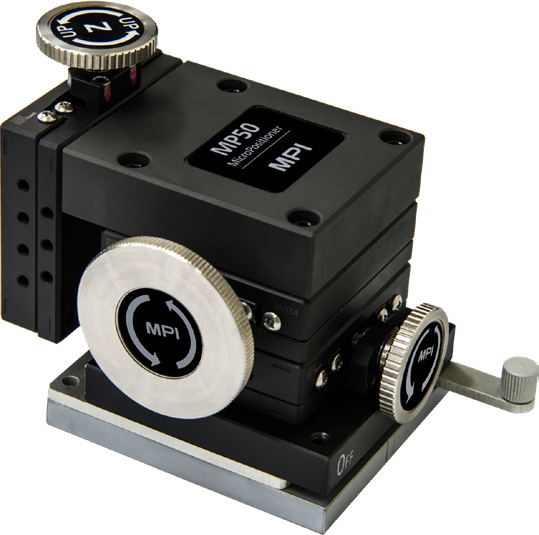

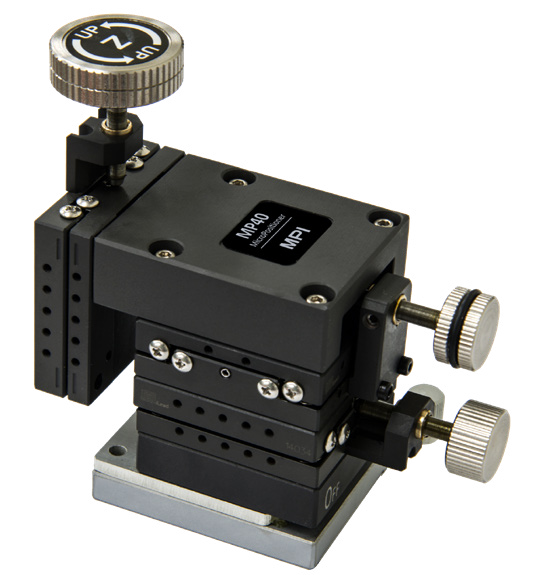

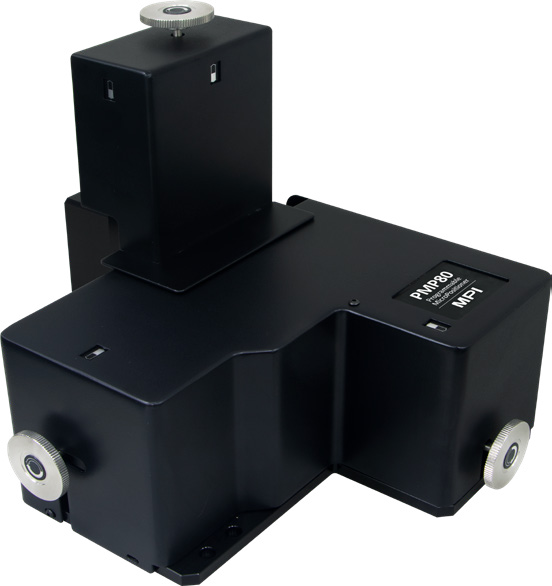

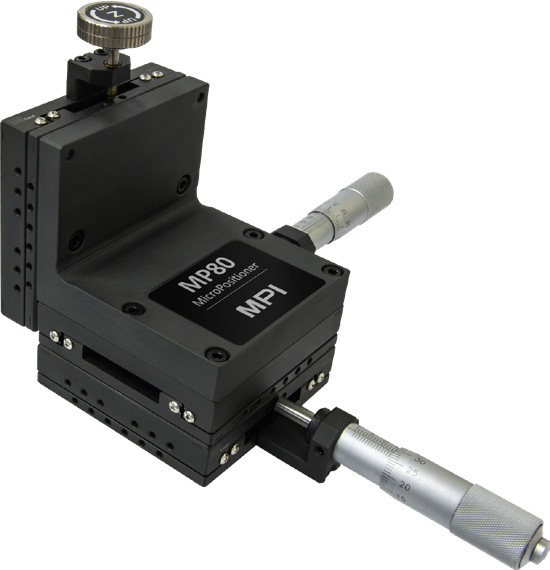

MPI MicroPositioner
MPI MicroPositioner offers a wide range of backlash-free micropositioners designed for precise and stable probe placement in RF and mmW applications. Featuring unified Z-direction, ergonomic operation, and a strong magnetic base, these micropositioners ensure high contact quality and superior measurement accuracy.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Feature Resolution | <4μm |
| Travel range (X/Y/Z) | 10/10/10mm |
| Screw resolution (X/Y/Z) | 500/500/500μm |
| Mounting | Magnetic |
| Base stage size | 25mm |
| Footprint | 55mm×40mm |
| Versions | Right or left |
| Application | IV/CV coaxial and ultra-low current triaxial measurements |
Applications
Key Features
Datasheet
