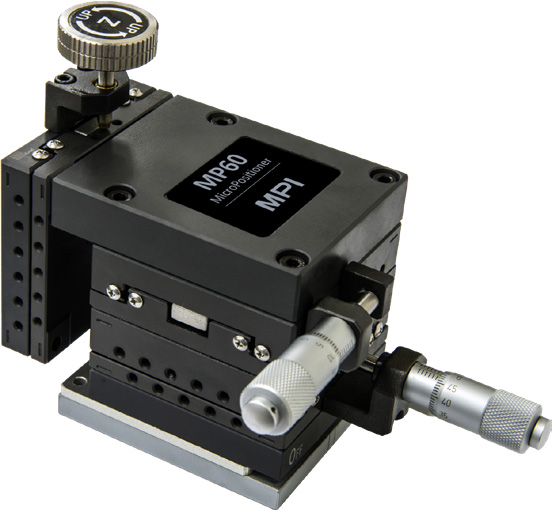

MPI MicroPositioner
MPI MicroPositioner offers a wide range of backlash-free micropositioners designed for high-resolution positioning in RF and mmW applications. With unified Z-direction, ergonomic operation, and a strong magnetic base, it ensures precise probe placement for accurate measurements.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Feature Resolution | <2μm |

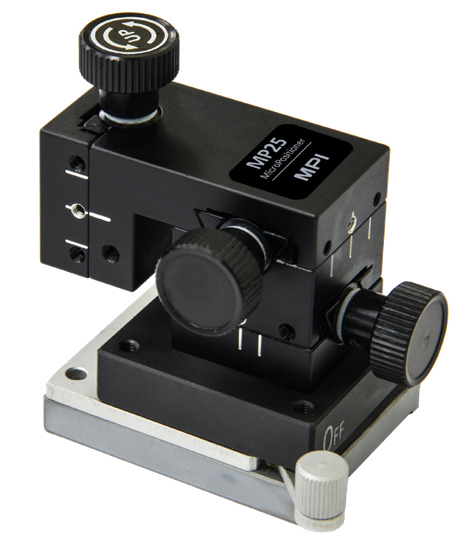

| Travel Range (X/Y/Z) MP25 | 10/10/10mm |
| Travel Range (X/Y/Z) MP40 | 13/13/13mm |
| Travel Range (X/Y/Z) MP50 | 13/13/13mm |
| Travel Range (X/Y/Z) MP60 | 13/13/13mm |

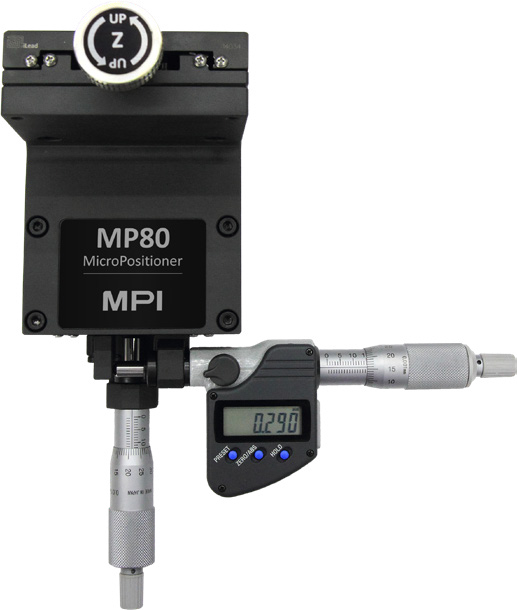

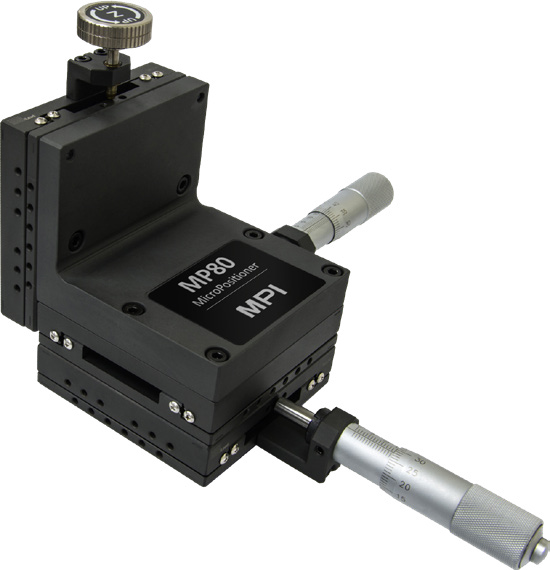

| Travel Range (X/Y/Z) MP80 | 25/25/15mm |
| Screw Resolution (X/Y/Z) MP25 | 500/500/500μm |

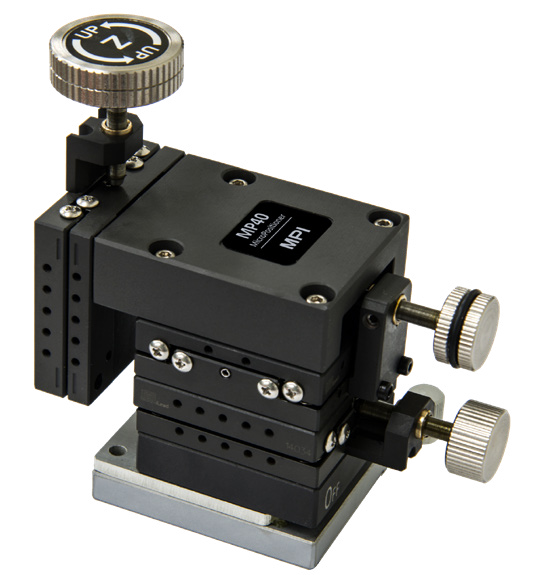

| Screw Resolution (X/Y/Z) MP40 | 300/300/300μm |

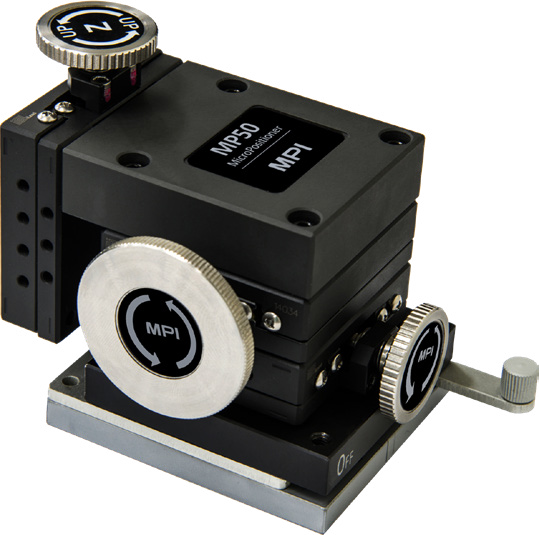

| Screw Resolution (X/Y/Z) MP50 | 250/250/250μm or 500/500/500μm |

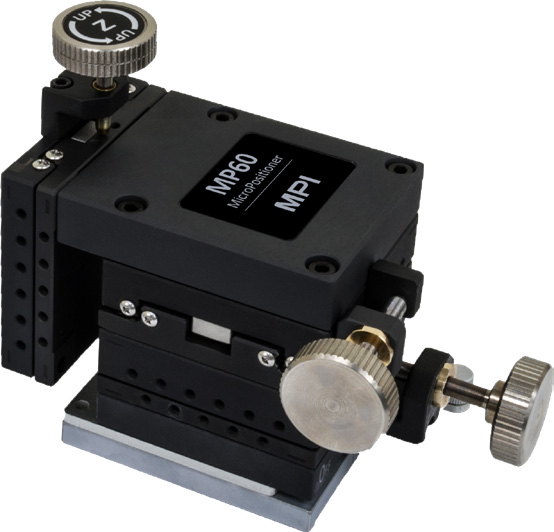

| Screw Resolution (X/Y/Z) MP60 | 250/250/300μm or 500/500/300μm |
| Screw Resolution (X/Y/Z) MP80 | 500/500/500μm |
| Mounting | Magnetic or Bolt-down |
| Base Stage Size MP25 | 25mm |
| Base Stage Size MP40 | 40mm |
| Base Stage Size MP50 | 50mm |
| Base Stage Size MP60 | 60mm |
| Base Stage Size MP80 | 80mm |
| Footprint MP25 | 55mmx40mm |
| Footprint MP40 | 65mmx40mm |
| Footprint MP50 | 86mmx60mm |
| Footprint MP60 | 89mmx60mm |
| Footprint MP80 | 100mmx80mm |
| Versions | Right and Left or Unidirectional |
| Application MP25 | IV/CV coaxial and ultra-low current triaxial measurements |
| Application MP40 | Accurate IV/CV coaxial, ultra-low current triaxial and RF measurements |
| Application MP50 | Extreme accurate IV/CV coaxial, ultra-low current triaxial measurements, internal node probing |
| Application MP60 | Accurate and stable RF measurements |
| Application MP80 | Accurate and stable RF |
| Application MP80 | broadband and mmW measurements |
