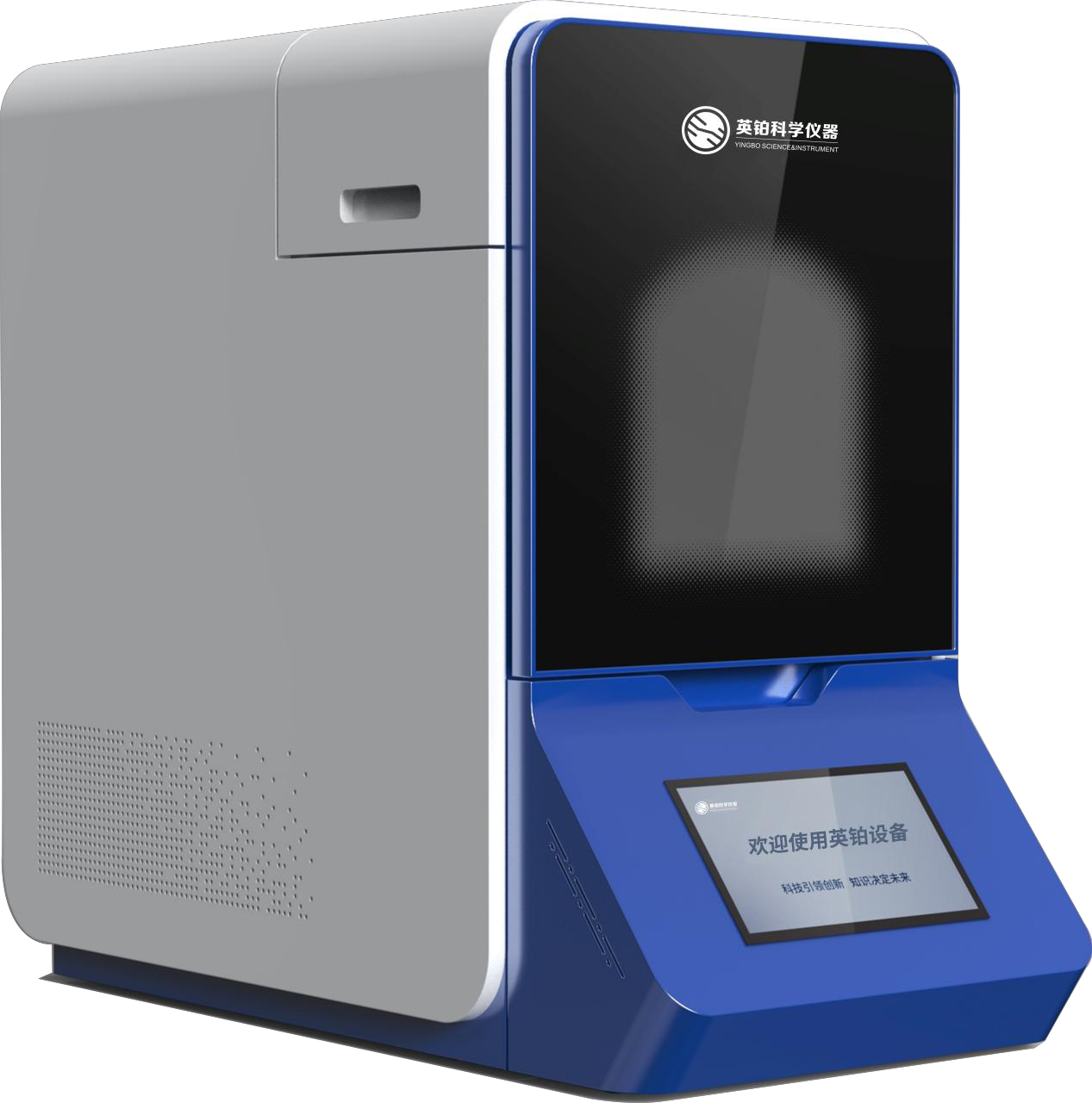

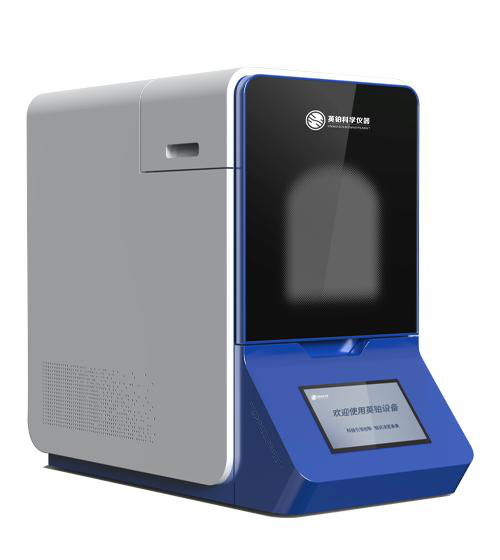

YBC160TII High Vacuum Multifunctional Coating Instrument
The YBC160TII is a high vacuum multifunctional coating instrument designed for precise and efficient coating applications. It features dual functionality with magnetic control and hot filament evaporation, automated operation, and real-time parameter adjustments.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Dimensions | 278(L)×494(H)×467(D)mm |
| Power Supply | AC220V/50Hz <1000W |
| Sputtering Target Material | Φ50mm, thickness 0.1-4mm |
| Operating Current | 1-200mA adjustable (step: 1mA) |
| Film Formation Time | 1-9999s adjustable (step: 1s) |
| Evaporation Source | High-purity carbon fiber |
| Evaporation Mode | Continuous mode |
| Evaporation Mode | pulse mode |
| Vacuum Chamber | 170(L)×150(H)×163.5(D)mm, integrated metal chamber |
| Ultimate Vacuum | <5×10^-3Pa |
| Vacuum Pump | Rotary pump (optional dry pump) + molecular pump |
| Main Vacuum Pump Speed | 90L/s |
| Sample Stage Diameter | Φ80mm |
| Supports Sample Stage Rotation | Yes |
| Supports Sample Stage Tilt | Yes |
| Working Gas | Argon, purity 99.99%, pressure range: 1-1.5atm |
| Vacuum Break Interface | 4mm lock interface |
| Ambient Temperature | 5-40°C |
| Storage Temperature | 15-30°C |
| Ambient Humidity | <80% (recommended <50%) |
| Operation Screen | 7-inch color touch screen |
