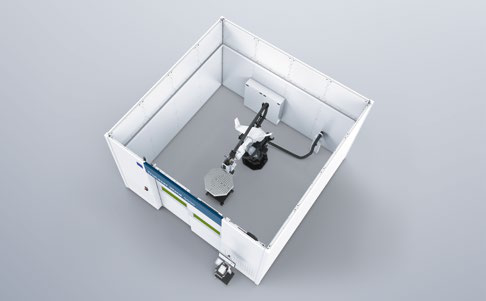

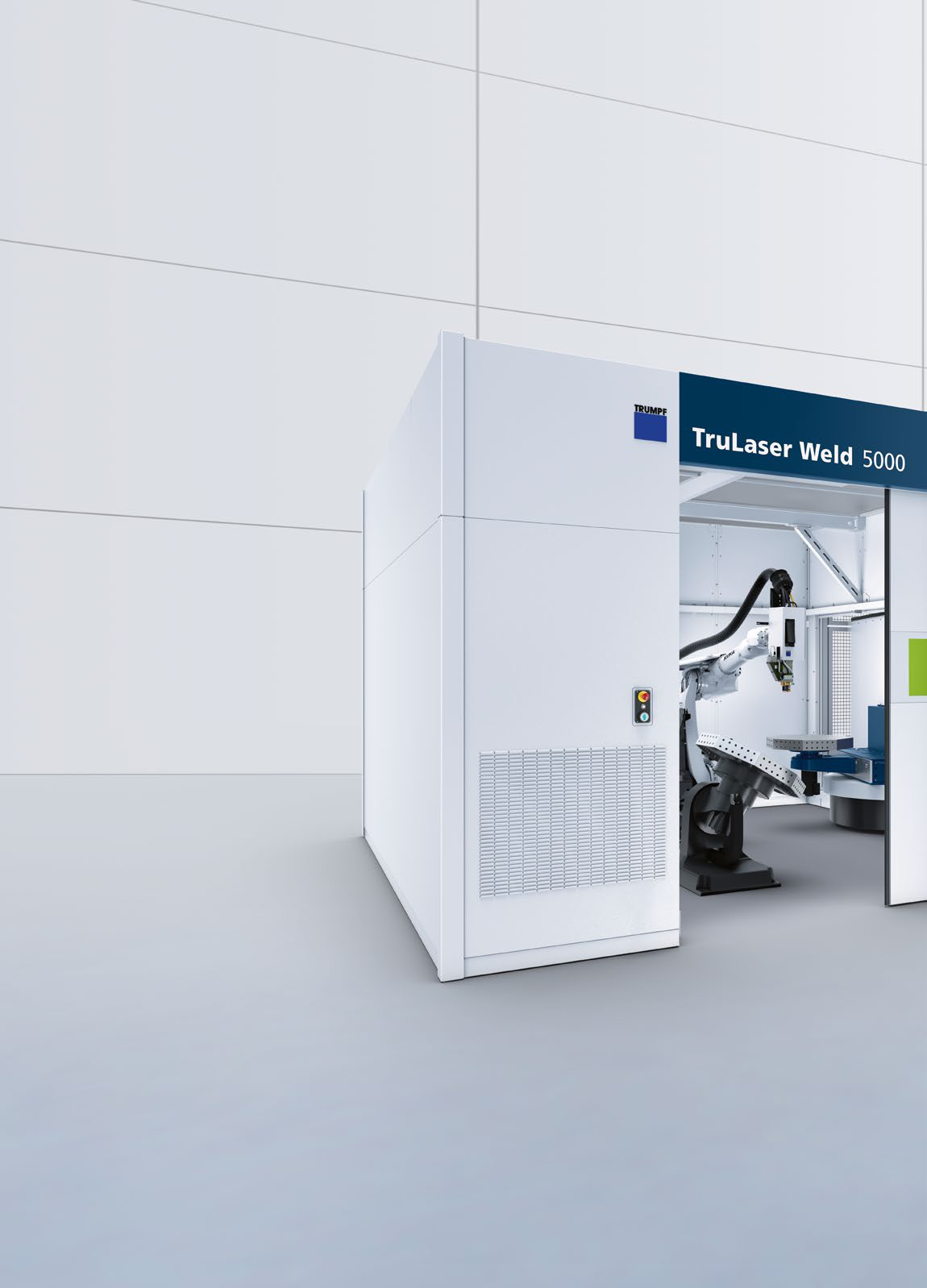

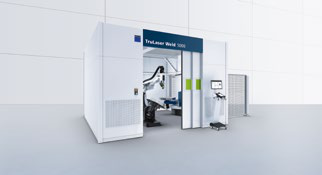

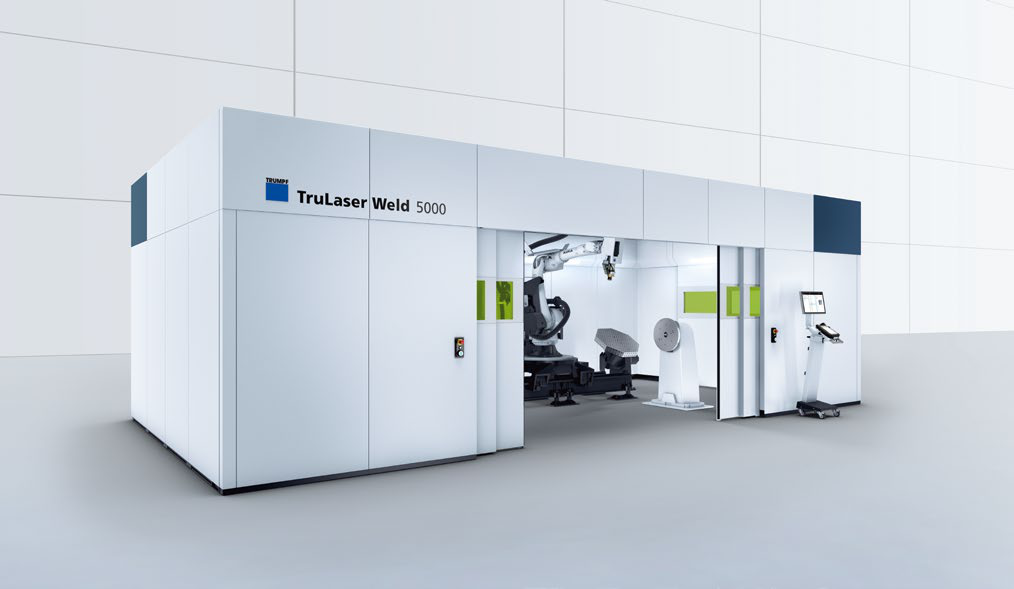

TruLaser Weld 5000

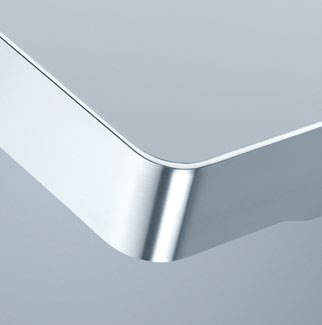

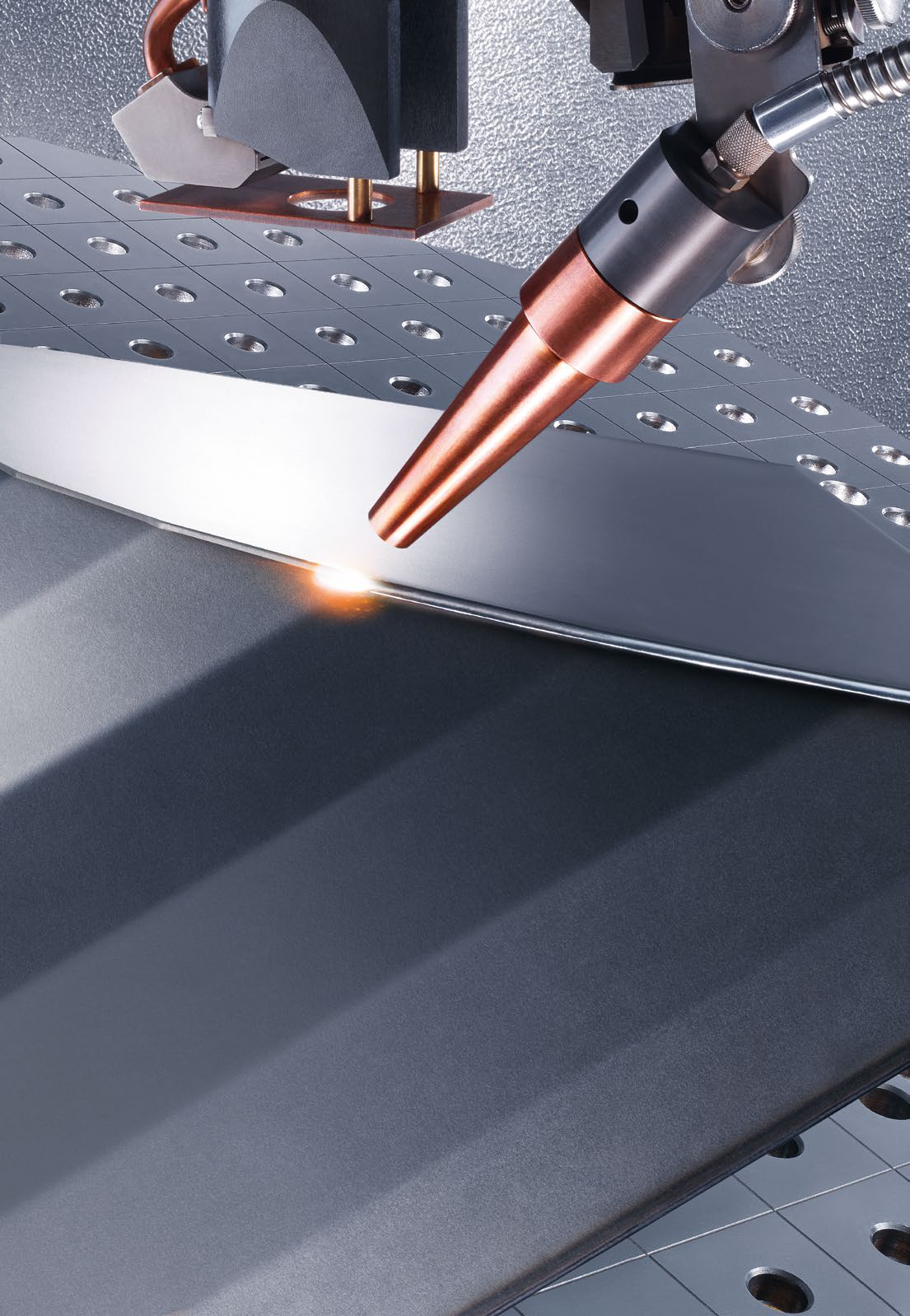

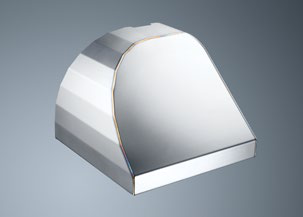

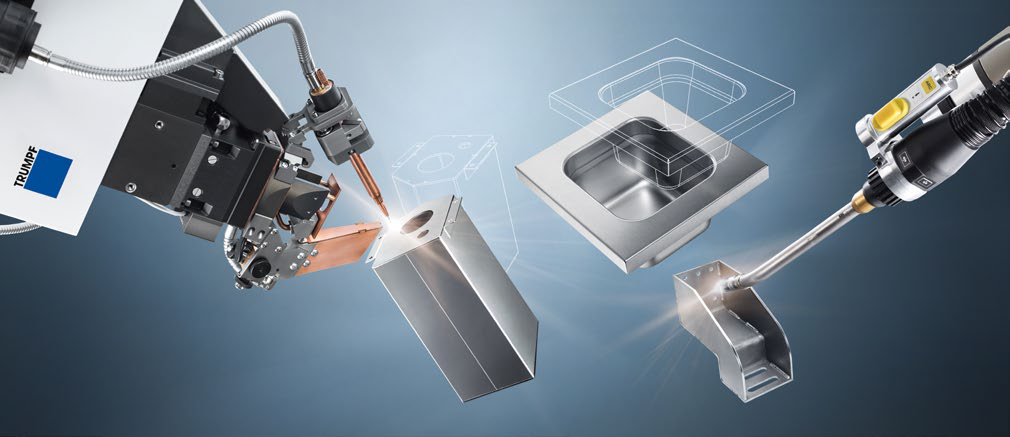

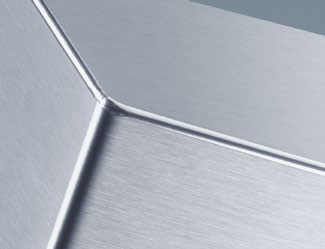

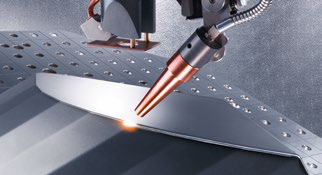

TruLaser Weld 5000 is a turnkey system for automated laser welding, offering flexible welding processes, deep and strong seams, and smooth rounded seams in one system.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Max Welding Depth (mm) 3000W-Stainless Steel | 5 |
| Max Welding Depth (mm) 3000W-Mild Steel | 5 |
| Max Welding Depth (mm) 3000W-Aluminum | 3 |
| Max Welding Depth (mm) 6000W-Stainless Steel | 10 |
| Max Welding Depth (mm) 6000W-Mild Steel | 10 |
| Max Welding Depth (mm) 6000W-Aluminum | 6 |
| Max Sheet Thickness (mm) 3000W-Stainless Steel | 2.5 |
| Max Sheet Thickness (mm) 3000W-Mild Steel | 2.5 |
| Max Sheet Thickness (mm) 3000W-Aluminum | 2.0 |
| Max Sheet Thickness (mm) BrightLine Scan-Stainless Steel | 6 |
| Max Sheet Thickness (mm) BrightLine Scan-Mild Steel | 6 |
| Max Sheet Thickness (mm) BrightLine Scan-Aluminum | 4 |
| Welding Speed (m/min) 3000W-2mm Aluminum | 7 |
| Welding Speed (m/min) BrightLine Scan-2mm Aluminum | 10.2 |
| Welding Speed (m/min) 3000W-1.5mm Stainless Steel | 8 |
| Welding Speed (m/min) BrightLine Scan-1.5mm Stainless Steel | 13 |
| Welding Speed (m/min) 3000W-3mm Mild Steel | 3 |
| Welding Speed (m/min) BrightLine Scan-3mm Mild Steel | 4.3 |

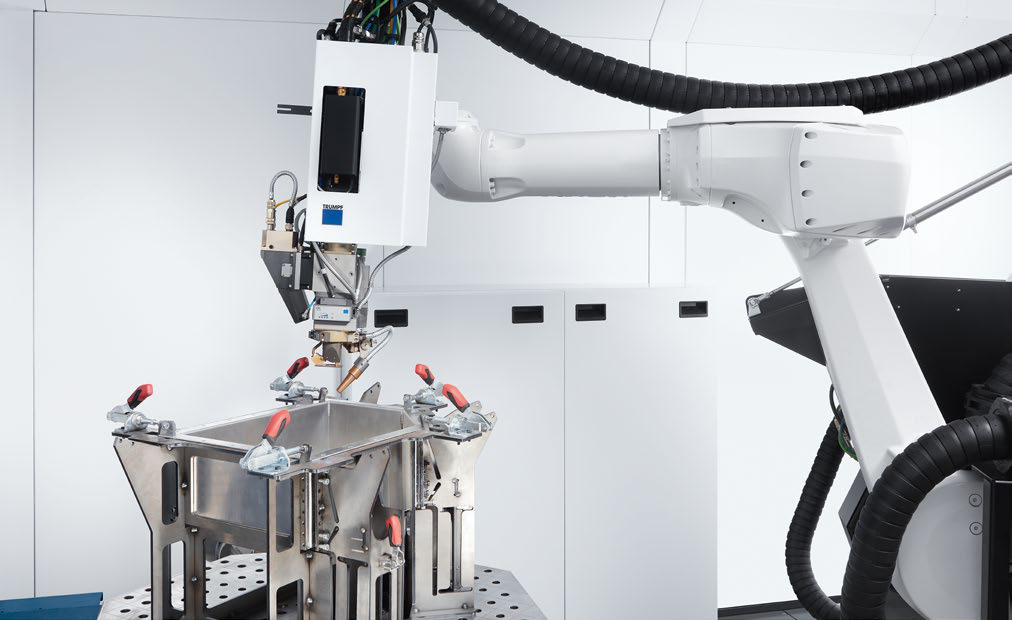

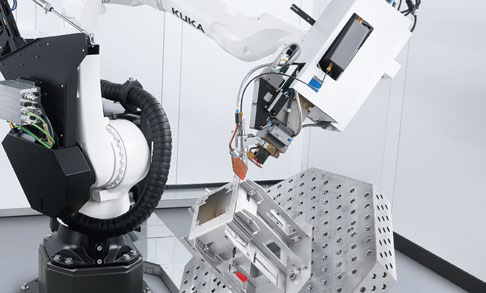

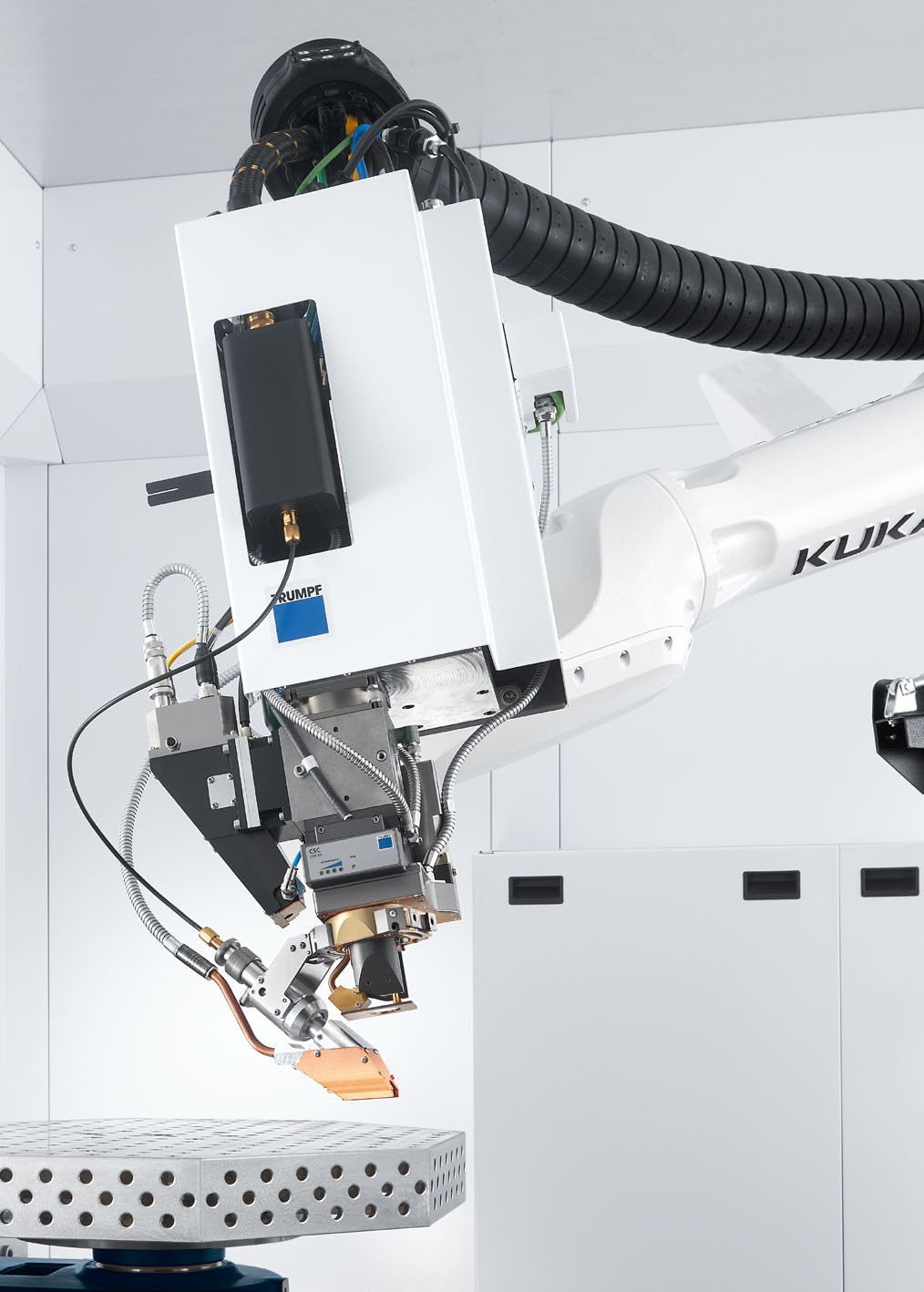

| Handling System Type | Industrial Robot |
| Number of Axes | 6 |
| Range (mm) | 2100 |
| Repeatability (mm) | ±0.05 |

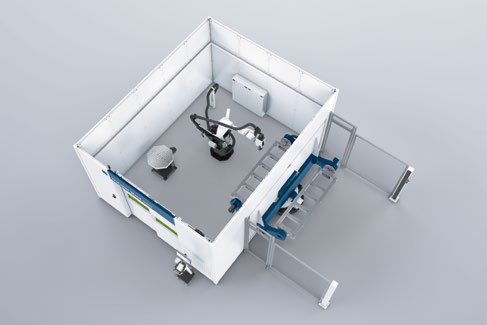

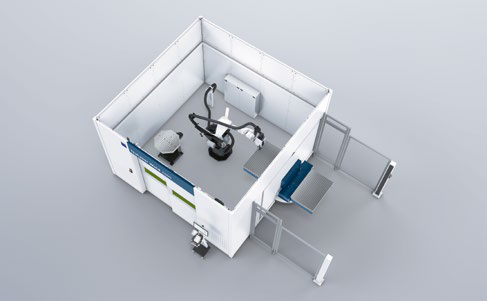

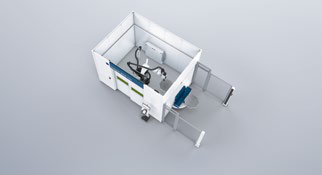

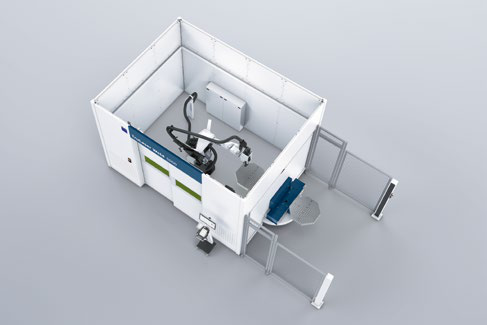

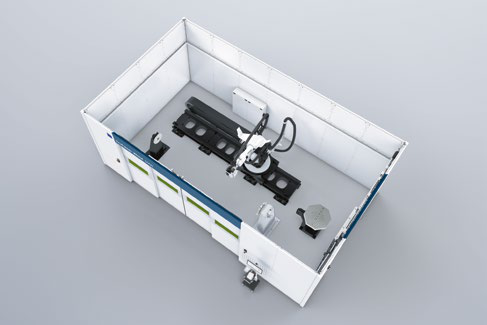

| Welding Cabin Dimensions (mm) | 4800×3650×3200 to 9400×5950×3200 |

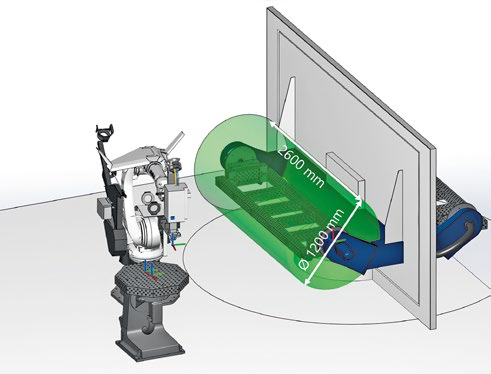

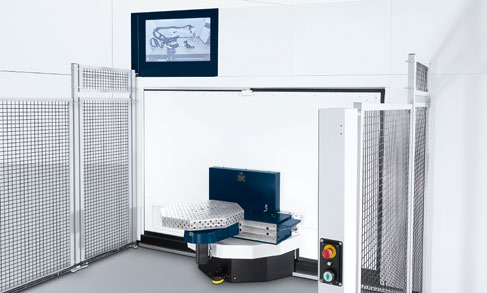

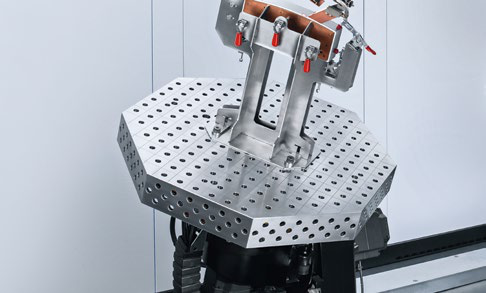

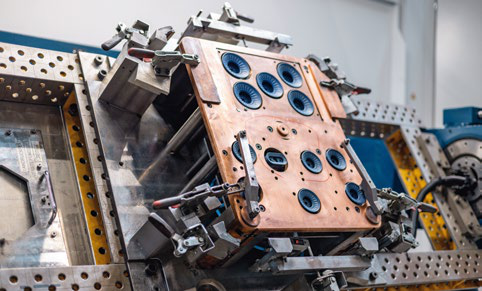

| Positioner Max Load (kg) | 400 to 1000 |

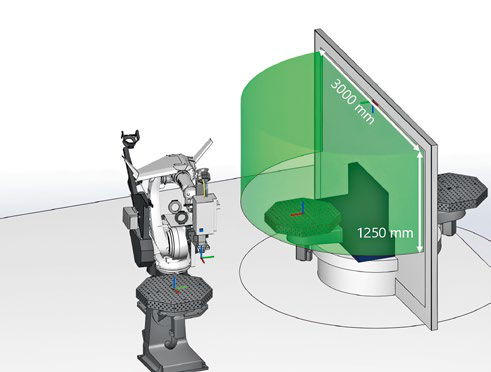

| Positioner Max Work Area (mm) | 2000×1000 to 2000×4000 |
| Available Lasers | TruFiber 3001 S, TruFiber 6001 S |
