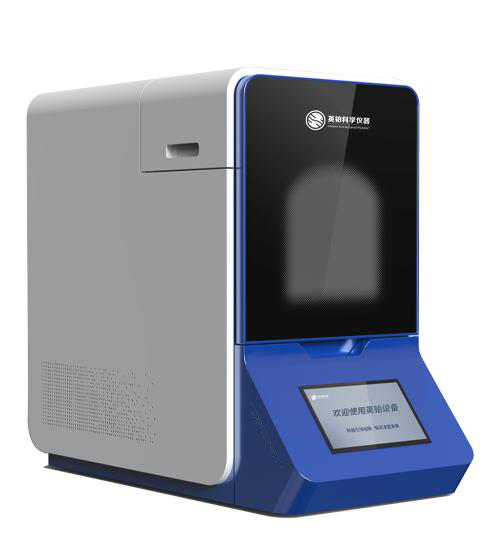

YBC140T High Vacuum Multifunctional Coating Instrument
The YBC140T high vacuum multifunctional coating instrument is designed for efficient and precise coating processes. It features one-button operation, a 7-inch touchscreen, and an advanced vacuum system with a limit vacuum of ≤5E-3Pa. The device supports various coating modes, including pulse and intermittent heating, ensuring high coating efficiency and uniformity. It is equipped with a robust sample chamber and advanced safety features to prevent contamination and enhance coating purity.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Main Unit Dimensions | 278(L)×494(H)×467(D)mm |
| Evaporation Source | High-purity tungsten filament (φ0.8mm) |
| Number of Evaporation Sources | 4 |
| Evaporation Mode | Continuous evaporation |
| Evaporation Mode | pulse evaporation |
| Operation Mode | Fully automatic one-button operation |
| Preheating and Degassing | Adjustable as needed |
| Degassing Baffle | Automatic |
| Vacuum Pump | Rotary pump (optional dry pump) + molecular pump |
| Main Vacuum Pump Speed | 90L/s |
| Vacuum Chamber | 170(L)×150(H)×163.5(D)mm integrated metal processing chamber |
| Ultimate Vacuum | ≤5×10^-3Pa |
| Power Supply | AC220V/50Hz |
| Rated Power | 800W |
| Evaporation Source Status | Automatic display on screen when powered on |
| Pre-spray | Automatic optical spray cleaning function, equipped with anti-pollution baffle |
| Sample Stage | φ80mm, supports rotation, adjustable height and tilt |
| Sample Stage Diameter | 80mm |
| Sample Stage Insertion Capacity | Can insert 14 SEM standard sample stages |
| Supports Lifting | Height adjustable |
| Supports Lifting | rotation adjustable |
| Optional Tilt Angle | Adjustable |
| Voltage | 220V, 50Hz |
| Power | ≤1000W |
| Operating Temperature | 15-30°C |
| Storage Temperature | 5-40°C |
| Ambient Humidity | ≤80% (recommended ≤50%) |
