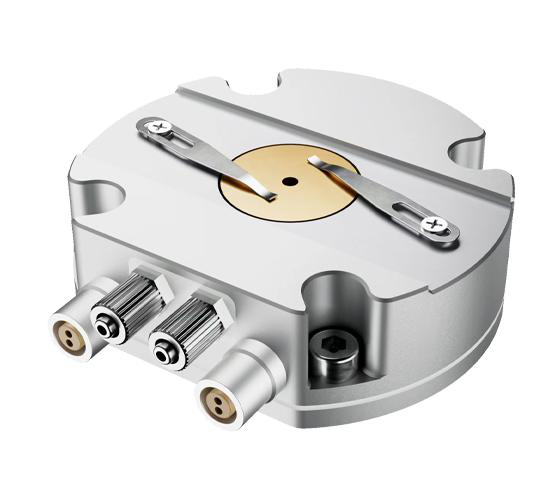

CH200-180S & H600-S Temperature Control Modules
The CH200-180S and H600-S are advanced temperature control modules designed for precise thermal management in various applications. The CH200-180S utilizes liquid nitrogen cooling and resistance heating, while the H600-S employs resistance heating for temperature control.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Cooling and Heating Method CH200-180S | Liquid nitrogen cooling |
| Cooling and Heating Method CH200-180S | resistance heating |
| Cooling and Heating Method H600-S | Resistance heating |
| Temperature Control Range CH200-180S | -190~200°C |
| Temperature Control Range H600-S | RT~600°C |
| Temperature Stability | ±0.1 |
| Temperature Resolution | 0.1°C |
| Heating and Cooling Rate | 0~30°C/min (customizable/program segment control) |
| Temperature Control Method | PID |
| Temperature Sensor | Thermocouple |
| Sample Holder Size | Φ20mm/Φ12mm |
| Sample Holder Material | Copper/Ceramic |
| Dimensions | 85x85mm (customizable based on customer requirements) |
| Total Weight | 0.28KG |
