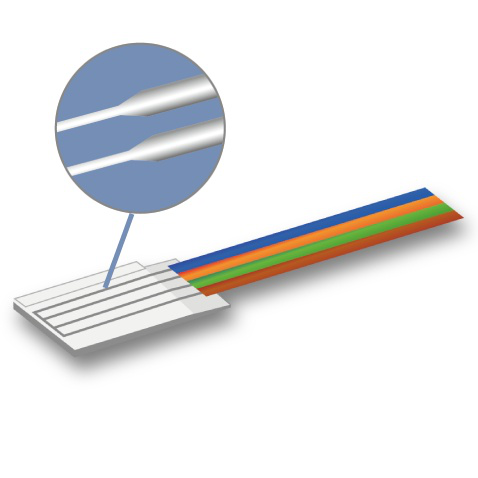

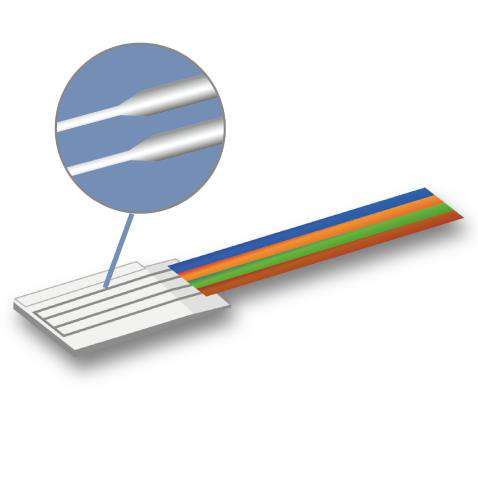

Mode Field Adapter Fiber Array (MFD FA)
Mode Field Adapter Fiber Array provides a solution for mode field conversion with a small mode field diameter of 3.2μm and a large mode field diameter of 8.9μm. It achieves mode field conversion and is suitable for applications requiring high precision alignment and customization.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Substrate Material | Quartz, BF33 and other materials |
| Fiber Pitch (μm) | 127, 250, customizable |
| Pitch Error (μm) | <0.5, customizable |
| Mode Field Diameter (μm) | 3.2μm, 3.3μm, etc., customizable |
| End Face Angle (°) | 0°-45°, customizable |
| Fiber Type | Single-mode |
| Channel Count | Customizable |
| Operating Temperature (°C) | -5-70 |
Applications
Key Features
Datasheet
