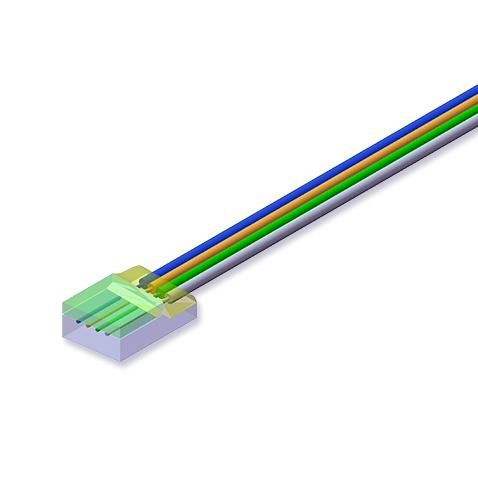

Ultrasmall FA
Ultrasmall FA is designed for applications requiring compact fiber arrays. It features a minimum length of 1.5mm, minimum width of 0.5mm, and minimum thickness of 0.5mm. It is suitable for various packaging sizes and ensures high precision fiber core pitch.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Fiber Pitch 2CH | 127,250, customizable |
| Fiber Pitch 4CH | 127,250, customizable |
| Fiber Pitch 8CH | 127,250, customizable |
| Fiber Pitch 12CH | 127,250, customizable |
| Fiber Pitch 24CH | 127,250, customizable |
| Pitch Tolerance 2CH | <0.3 |
| Pitch Tolerance 4CH | <0.5 |
| Pitch Tolerance 8CH | <0.5 |
| Pitch Tolerance 12CH | <0.8 |
| Pitch Tolerance 24CH | <1.0 |
| Minimum Length | 1.5mm |
| Minimum Width | 0.5mm |
| Minimum Thickness | 0.5mm (V-groove 0.5mm, blue film 0.1mm) |
| Operating Temperature | -5~70°C |
