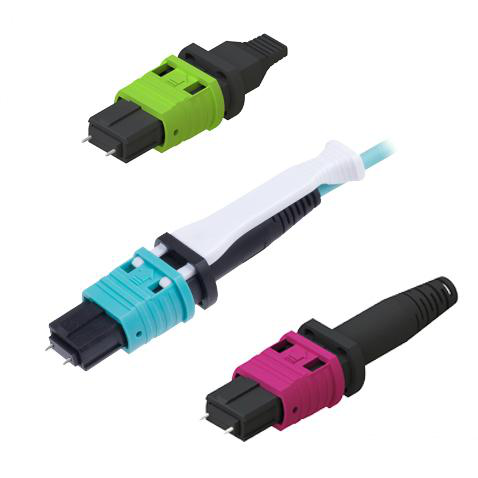

MPO 16/32 Core Fiber Optic Connector

MPO 16/32 Core Fiber Optic Connector

Supplier
HycSystem
Part Number
MPO 16/32 Core Fiber Optic Connector
Category
Optical Networking Accessories
Origin
China

The fiber optic connector is a device that can be detachable (movable) connected between optical fibers. It aligns the two ends of the optical fiber precisely to maximize the optical energy output into the receiving optical fiber. This connector is designed with a pull tab to facilitate use in high-density installation environments.

Specification Snapshot
Insertion Loss MM (16F)
≤0.7dB
Insertion Loss MM (16F,32F)
≤0.35dB
Insertion Loss SM (16F)
≤0.7dB
Return Loss MM
≥20dB
Return Loss SM
≥56dB
Outer Diameter
3.6mm
Request a Quote Download Datasheet Chat
Save to Favorites Save to Favorites

Overview

The fiber optic connector is a device that can be detachable (movable) connected between optical fibers. It aligns the two ends of the optical fiber precisely to maximize the optical energy output into the receiving optical fiber. This connector is designed with a pull tab to facilitate use in high-density installation environments.

Specifications

ParameterValue
Insertion Loss MM (16F)≤0.7dB
Insertion Loss MM (16F,32F)≤0.35dB
Insertion Loss SM (16F)≤0.7dB
Return Loss MM≥20dB
Return Loss SM≥56dB
Operating Temperature-25°C~+70°C
Applicable FiberOS2/OM1/OM2/OM3/OM4/OM5
Outer Diameter3.6mm
Fiber Count16C/32C

Applications

1. Telecommunications networks 2. CATV networks 3. LAN networks 4. Optical communication equipment

Key Features

1. Low insertion loss 2. High repeatability 3. High stability 4. Suitable for high-density applications 5. Complies with ROHS 6. Compatible with 3.6mm round cable and 16C/32C ribbon fiber

Datasheet

Product Datasheet
PDF
Download
