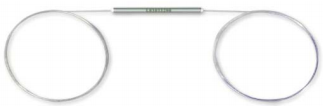

Dual Window Coupler (DWC)
The Dual Window Coupler (DWC) utilizes fused biconical taper technology. The standard component bandwidth reaches 40nm, while the ultra-wideband can extend to 80nm. The DWC operates at 1310nm and 1550nm windows with high precision and low polarization dependent loss (PDL). It is widely used in optical communication systems, CATV, and FTTH.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Operating Wavelength | 1310 and 1550 |
| Bandwidth | ±40 (Standard), ±80 (Ultra-wideband) |
| Typical Additional Loss | ≤0.07 (P Grade), ≤0.1 (A Grade) |
| Insertion Loss (dB) 50/50 | ≤3.6 (P Grade), ≤3.8 (A Grade) |
| Insertion Loss (dB) 40/60 | ≤4.2/3.2 (P Grade), ≤4.4/3.4 (A Grade) |
| Insertion Loss (dB) 35/65 | ≤4.7/2.7 (P Grade), ≤4.9/2.9 (A Grade) |
| Insertion Loss (dB) 30/70 | ≤5.4/2.4 (P Grade), ≤5.7/2.6 (A Grade) |
| Insertion Loss (dB) 25/75 | ≤7.0/1.7 (P Grade), ≤7.3/1.9 (A Grade) |
| Insertion Loss (dB) 15/85 | ≤9.5/1.0 (P Grade), ≤10.0/1.2 (A Grade) |
| Polarization Dependent Loss | ≤0.15 (Standard), ≤0.2 (Ultra-wideband) |
| Directivity | ≥55 |
| Operating Temperature | -40~+85 |
| Storage Temperature | -40~+85 |
| Package Dimensions | Φ3.0mm×54mm, Φ2.4mm×42mm, L90×W20×H10mm |
