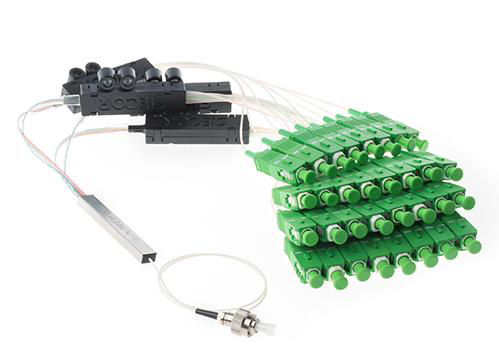

PLC Optical Splitter MINI Module
PLC optical splitters are manufactured using planar lightwave circuit technology and are widely used in passive optical network (PON) systems to distribute optical signals. HYC's PLC optical splitter MINI module offers various configurations such as 1xN, 2xN, and MxN, providing high reliability, low insertion loss, and excellent uniformity. It is ideal for applications in metropolitan area networks, local area networks, and FTTX.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Operating Wavelength (nm) | 1260-1650 |
| Fiber Type | G657D/G657A1/G657A2 |
| Cable type | MINI Fan-out 0.9mm loose tube |
| Channel Count 1x2 | 1x2 |
| Channel Count 1x4 | 1x4 |
| Channel Count 1x8 | 1x8 |
| Channel Count 1x16 | 1x16 |
| Channel Count 1x32 | 1x32 |
| Channel Count 2x32 | 2x32 |
| Channel Count 1x64 | 1x64 |
| Insertion Loss (dB) 1x2 | ≤4.0 |
| Insertion Loss (dB) 1x4 | ≤7.4 |
| Insertion Loss (dB) 1x8 | ≤10.8 |
| Insertion Loss (dB) 1x16 | ≤13.7 |
| Insertion Loss (dB) 1x32 | ≤17.5 |
| Insertion Loss (dB) 2x32 | ≤20.0 |
| Insertion Loss (dB) 1x64 | ≤21.0 |
| Uniformity (dB) 1x2 | ≤0.6 |
| Uniformity (dB) 1x4 | ≤1.0 |
| Uniformity (dB) 1x8 | ≤1.5 |
| Uniformity (dB) 1x16 | ≤2.0 |
| Uniformity (dB) 1x32 | ≤2.5 |
| Uniformity (dB) 2x32 | ≤3.0 |
| Uniformity (dB) 1x64 | ≤3.5 |
| Temperature Stability (dB) | ≤0.3 |
| Return Loss (dB) | >55 |
| Directivity (dB) | >55 |
| Operating Power (mW) | ≤300 |
| Operating Temperature (°C) | -40~+85 |
| Storage Temperature (°C) | -40~+85 |
| Dimensions (LxWxH) 1x2 | 40x4x4 |
| Dimensions (LxWxH) 1x4 | 50x4x4 |
| Dimensions (LxWxH) 1x8 | 50x4x4 |
| Dimensions (LxWxH) 1x16 | 50x4x4 |
| Dimensions (LxWxH) 1x32 | 45x5x4 |
| Dimensions (LxWxH) 2x32 | 60x7x4 |
| Dimensions (LxWxH) 1x64 | 60x12x4 |
