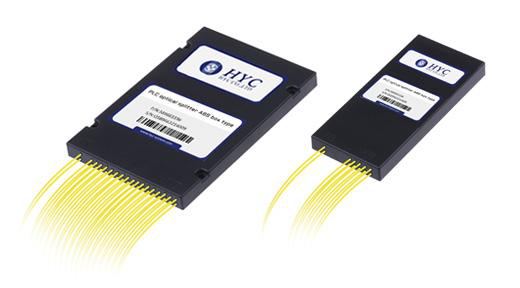

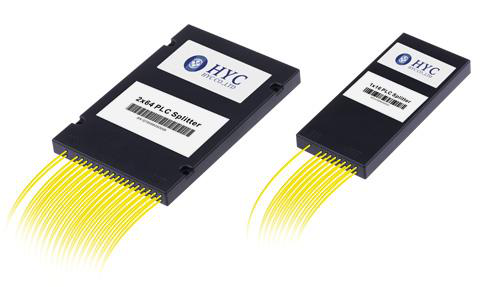

ABS Box PLC Optical Splitter
ABS Box PLC Optical Splitter is based on quartz substrate and uses planar optical waveguide technology for manufacturing. It is mainly used for signal splitting in passive optical network (PON) systems, providing uniform signal distribution and low insertion loss. It is widely used in metropolitan area networks, local area networks, and FTTX applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Operating Wavelength (nm) | 1260-1650 |
| Fiber Type | G652D/G657A1/G657A2 |
| Cable type | 0.9/2.0/3.0mm loose tube |
| Insertion Loss (dB) 1x2 | ≤4.0 |
| Insertion Loss (dB) 1x4 | ≤7.4 |
| Insertion Loss (dB) 1x8 | ≤10.8 |
| Insertion Loss (dB) 1x16 | ≤13.1 |
| Insertion Loss (dB) 1x32 | ≤17.0 |
| Insertion Loss (dB) 1x64 | ≤21.0 |
| Insertion Loss (dB) 1x128 | ≤25.0 |
| Uniformity (dB) 1x2 | ≤0.6 |
| Uniformity (dB) 1x4 | ≤1.0 |
| Uniformity (dB) 1x8 | ≤1.2 |
| Uniformity (dB) 1x16 | ≤1.5 |
| Uniformity (dB) 1x32 | ≤2.0 |
| Uniformity (dB) 1x64 | ≤2.5 |
| Uniformity (dB) 1x128 | ≤3.0 |
| Return Loss (dB) | >55 |
| Directivity (dB) | >55 |
| Maximum Power (mW) | ≤500 |
| Operating Temperature (°C) | -40~+85 |
| Storage Temperature (°C) | -40~+85 |
| Module Dimensions (LxWxH mm) | 100x80x10, 120x80x18, 140x115x18 |
