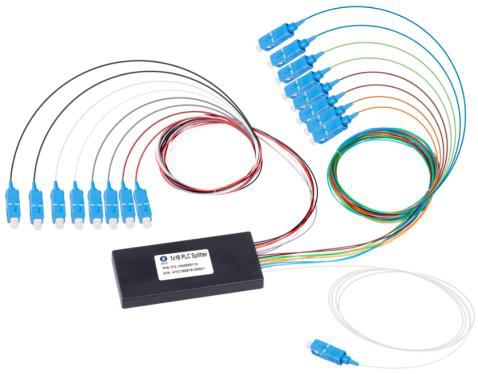

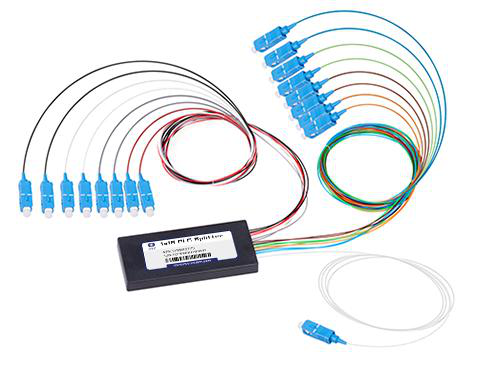

ABS MINI Box Type PLC Splitter
The ABS MINI Box Type PLC Splitter is a compact optical splitter designed using planar lightwave circuit technology. It is primarily used in Passive Optical Networks (PON) systems to distribute optical signals. Compared to FBT splitters, PLC splitters offer high reliability, uniform signal distribution, and compact design, making them ideal for applications such as metropolitan area networks, local area networks, and FTTX.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Operating Wavelength (nm) | 1260-1650 |
| Fiber Type | G652D/G657A1/G657A2 |
| Fiber Diameter (mm) | 0.9/2.0/3.0mm loose tube |
| Channel Count 1x2 | 1x2 |
| Insertion Loss (dB) 1x2 | ≤4.5 |
| Insertion Loss (dB) 1x4 | ≤7.7 |
| Insertion Loss (dB) 1x8 | ≤11.0 |
| Insertion Loss (dB) 1x16 | ≤14.2 |
| Insertion Loss (dB) 2x2 | ≤4.7 |
| Insertion Loss (dB) 2x4 | ≤7.9 |
| Insertion Loss (dB) 2x8 | ≤11.3 |
| Insertion Loss (dB) 2x16 | ≤14.5 |
| Uniformity (dB) 1x2 | ≤0.2 |
| Uniformity (dB) 1x4 | ≤0.3 |
| Uniformity (dB) 1x8 | ≤0.5 |
| Uniformity (dB) 1x16 | ≤1.2 |
| Uniformity (dB) 2x2 | ≤0.3 |
| Uniformity (dB) 2x4 | ≤0.5 |
| Uniformity (dB) 2x8 | ≤1.0 |
| Uniformity (dB) 2x16 | ≤2.0 |
| Polarization Dependent Loss (dB) | ≤0.2 |
| Return Loss (dB) | ≥55 |
| Directivity (dB) | ≥55 |
| Operating Power (mW) | ≤500 |
| Operating Temperature (°C) | -40~+85 |
| Storage Temperature (°C) | -40~+85 |
| Package Dimensions (LxWxH) 1x2 | 90x20x10mm |
| Package Dimensions (LxWxH) 2x16 | 100x45x10mm |
