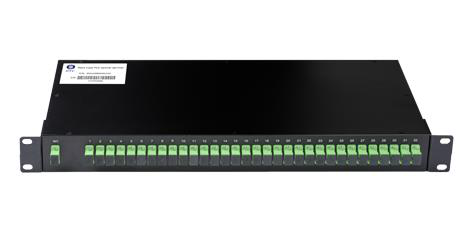

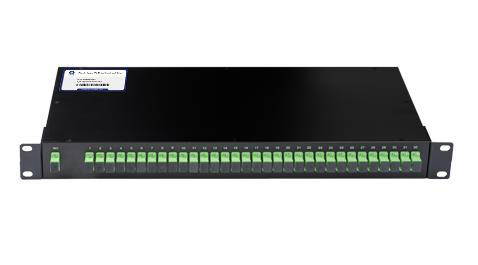

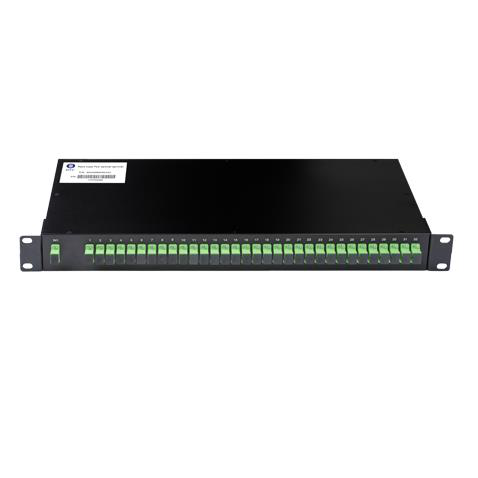

Rack-mounted PLC Splitter
Rack-mounted PLC Splitter is made of quartz glass substrate and uses planar lightwave circuit technology to create a compact and reliable optical splitter. It is mainly used in Passive Optical Network (PON) systems to distribute optical signals. HYC's PLC splitters are available in various configurations such as 1xN, 2xN, and MxN, meeting diverse user needs. Compared to FBT splitters, PLC splitters offer better wavelength coverage, high reliability, and compact size.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Operating Wavelength (nm) | 1260-1650nm |
| Fiber Diameter (μm) | 250μm Fiber or 900μm loose tube |
| Insertion Loss (dB) 1x2 | ≤4.5dB |
| Insertion Loss (dB) 2x2 | ≤4.7dB |
| Insertion Loss (dB) 1x4 | ≤7.7dB |
| Insertion Loss (dB) 2x4 | ≤7.9dB |
| Insertion Loss (dB) 1x8 | ≤11.0dB |
| Insertion Loss (dB) 2x8 | ≤11.3dB |
| Insertion Loss (dB) 1x16 | ≤14.2dB |
| Insertion Loss (dB) 2x16 | ≤14.5dB |
| Insertion Loss (dB) 1x32 | ≤17.5dB |
| Insertion Loss (dB) 2x32 | ≤18.0dB |
| Insertion Loss (dB) 1x64 | ≤21.0dB |
| Insertion Loss (dB) 2x64 | ≤21.5dB |
| Uniformity (dB) 1x2 | ≤0.6dB |
| Uniformity (dB) 2x2 | ≤0.8dB |
| Uniformity (dB) 1x4 | ≤1.0dB |
| Uniformity (dB) 2x4 | ≤1.5dB |
| Uniformity (dB) 1x8 | ≤1.2dB |
| Uniformity (dB) 2x8 | ≤2.0dB |
| Uniformity (dB) 1x16 | ≤2.0dB |
| Uniformity (dB) 2x16 | ≤2.5dB |
| Uniformity (dB) 1x32 | ≤2.5dB |
| Uniformity (dB) 2x32 | ≤3.0dB |
| Uniformity (dB) 1x64 | ≤3.5dB |
| Uniformity (dB) 2x64 | ≤5.0dB |
| Return Loss (dB) | ≥55dB |
| Directivity (dB) | ≥55dB |
| Operating Power (mW) | ≤500mW |
| Operating Temperature (°C) | -40~+85°C |
| Storage Temperature (°C) | -40~+85°C |
