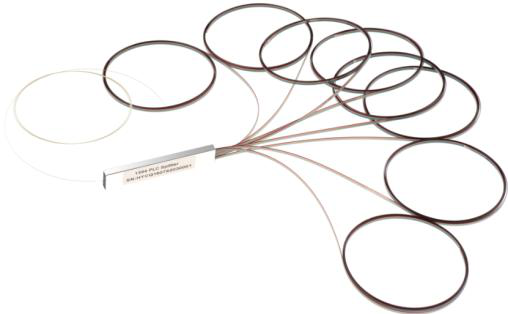

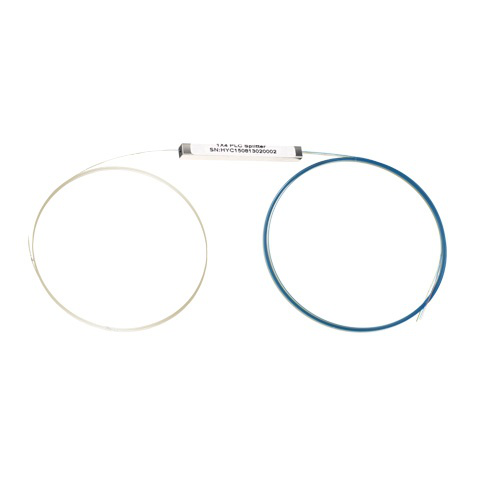

PLC Optical Splitter
PLC optical splitters are devices based on quartz substrate material and planar optical waveguide technology. They are mainly used in passive optical network (PON) systems to distribute optical signals. As one of the most critical passive components in optical communication, HYC's PLC optical splitters are available in various channel configurations such as 1xN, 2xN, and MxN. Compared to FBT (fused biconical taper) splitters, PLC splitters offer advantages such as compact size, high reliability, and superior performance. They are widely used in metropolitan area networks, local area networks, and FTTX applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Operating Wavelength (nm) | 1260-1650 |
| Fiber Type | 250μm Ribbon fiber |
| Channel Configuration 1x2 | 1x2 |
| Insertion Loss (dB) 1x2 | ≤4.0 |
| Insertion Loss (dB) 1x4 | ≤7.4 |
| Insertion Loss (dB) 1x8 | ≤10.8 |
| Insertion Loss (dB) 1x16 | ≤13.7 |
| Insertion Loss (dB) 1x32 | ≤17.0 |
| Insertion Loss (dB) 1x64 | ≤21.0 |
| Uniformity (dB) 1x2 | ≤0.6 |
| Uniformity (dB) 1x4 | ≤1.0 |
| Uniformity (dB) 1x8 | ≤1.5 |
| Uniformity (dB) 1x16 | ≤2.0 |
| Uniformity (dB) 1x32 | ≤2.5 |
| Uniformity (dB) 1x64 | ≤3.0 |
| Polarization Dependent Loss (dB) | ≤0.2 |
| Return Loss (dB) | ≥55 |
| Directivity (dB) | ≥55 |
| Maximum Power (mW) | ≤300 |
| Operating Temperature (°C) | -40~+85 |
| Storage Temperature (°C) | -40~+85 |
| Package Dimensions (LxWxH mm) 1x2 | 40x4x4 |
| Package Dimensions (LxWxH mm) 1x4 | 40x4x4 |
| Package Dimensions (LxWxH mm) 1x8 | 40x4x4 |
| Package Dimensions (LxWxH mm) 1x16 | 45x5x4 |
| Package Dimensions (LxWxH mm) 1x32 | 50x7x4 |
| Package Dimensions (LxWxH mm) 1x64 | 60x12x4 |
Applications
Key Features
Datasheet
