1x5 Un-equal Mini PLC

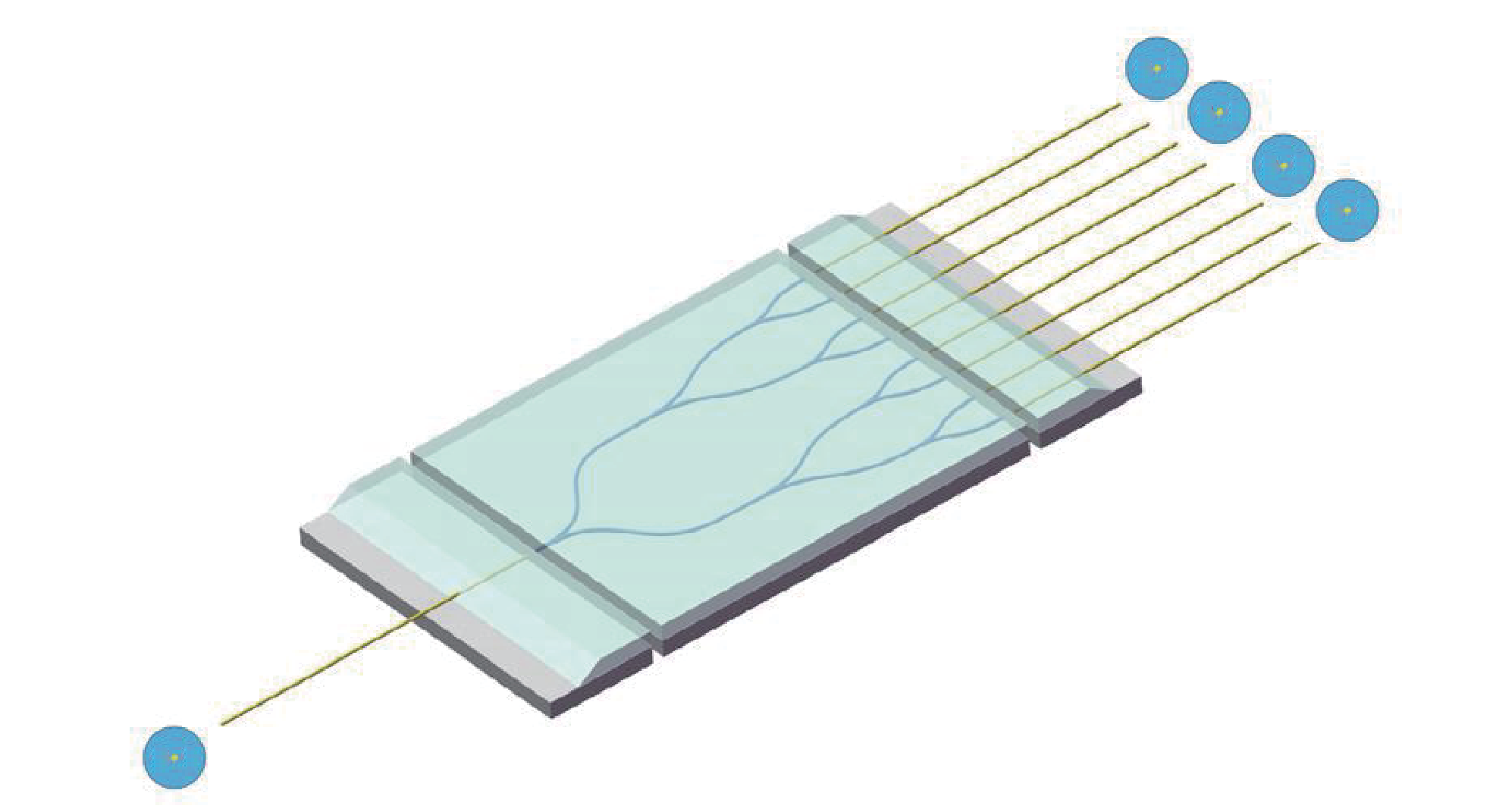

Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations. OPTICO full arrange PLC Splitters feature small size, high reliability, wide operating wavelength range, and good channel-to-channel uniformity.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Operating Wavelength (nm) | 1260~1650 |
| Fiber Type | G657A or as customized |
| Typical Insertion Loss (dB) | 1.8/15.7 |
| Return Loss (dB) | ≥50 |
| Directivity (dB) | ≥55 |
| PDL (Max.) | 0.3 |
| Maximum Operating Power (mW) | 300 |
| Wavelength Dependent Loss (dB) | ≤0.3 |
| TDL (Max.) | 0.5 |
| Operating Temperature (°C) | -40~+85 |
| Storage Temperature (°C) | -40~+70 |
| Bare Fiber Dimensions (mm) | 55x7x4 |
| 900μm Fiber Dimensions (mm) | 55x7x4 |
| ABS Box Dimensions (mm) | 120x80x18 |
