MLAF-7V
The MLAF-7V is a third-generation line laser focusing sensor designed for high precision optical applications. It offers advanced features for accurate and efficient focusing in various magnification ranges.
Save to Favorites
Overview
Specifications

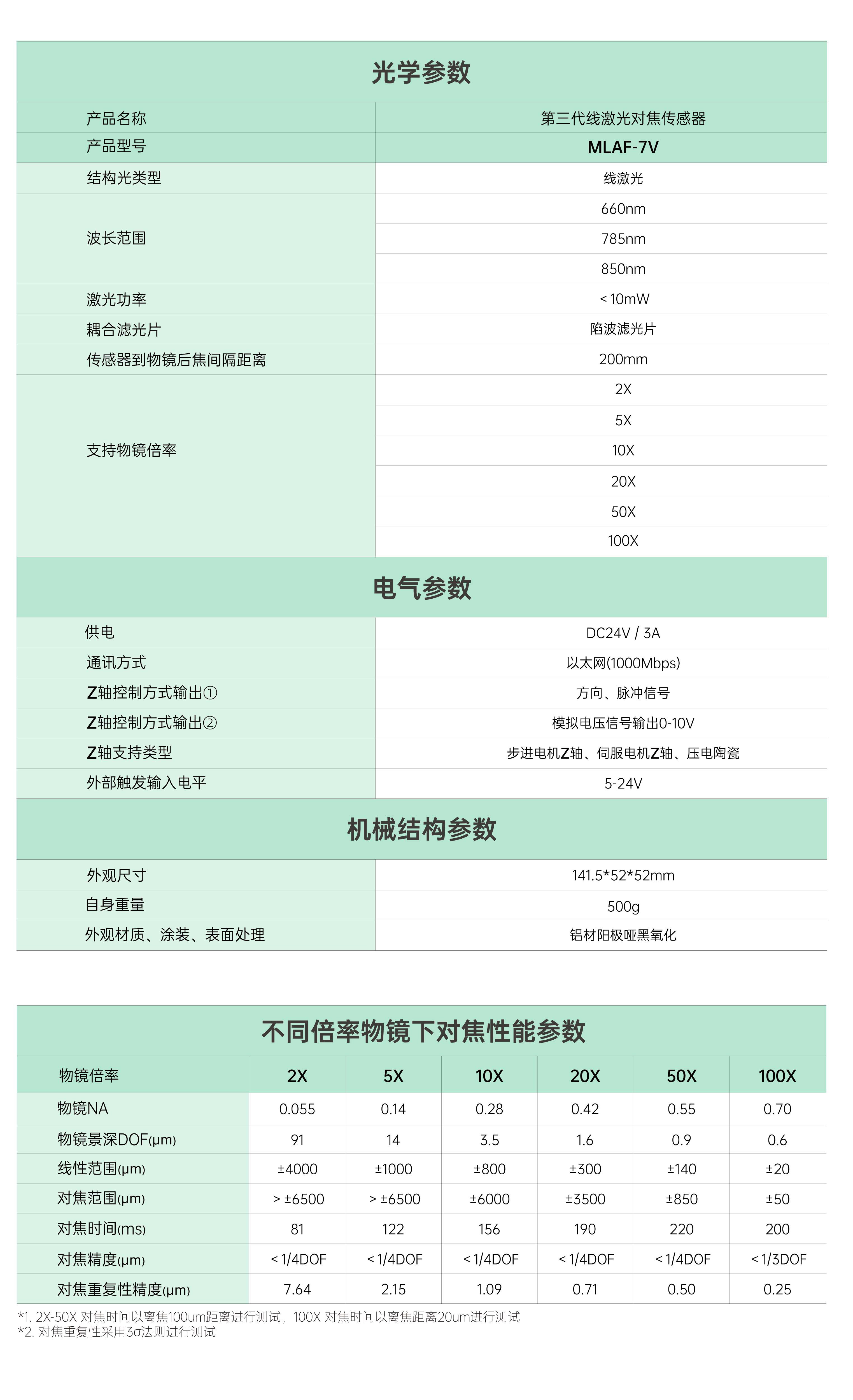

| Parameter | Value |
|---|---|
| Product Name | 第三代线激光对焦传感器 |
| Product Model | MLAF-7V |
| Structured Light Type | 线激光 |
| Wavelength Range | 660nm, 785nm, 850nm |
| Laser Power | <10mW |
| Coupling Filter | 阻波滤光片 |
| Sensor to Objective Back Focal Distance | 200mm |
| Supported Objective Magnification | 2X, 5X, 10X, 20X, 50X, 100X |
| Power Supply | DC24V/3A |
| Communication Method | 以太网(1000Mbps) |
| Z-axis Control Output Type ① | 方向, 脉冲信号 |
| Z-axis Control Output Type ② | 模拟电压信号输出0-10V |
| Z-axis Supported Type | 步进电机Z轴,伺服电机Z轴,压电陶瓷 |
| External Trigger Input Level | 5-24V |
| Dimensions | 141.5×52×52mm |
| Weight | 500g |
| Appearance Material, Coating, Surface Treatment | 铝材阳极硬度黑氧化 |
| Objective NA | 0.055(2X), 0.14(5X), 0.28(10X), 0.42(20X), 0.55(50X), 0.70(100X) |
| Objective Depth of Field (DOF) | 91(2X), 14(5X), 3.5(10X), ±1.4(20X), ±0.8(50X), ±0.5(100X) |
| Linear Range | >4000(2X), ±1800(5X), ±1000(10X), ±500(20X), ±200(50X), ±100(100X) |
| Focusing Range | >6500(2X), ±6500(5X), ±6000(10X), ±5000(20X), ±2000(50X), ±650(100X) |
| Focusing Time | 81(2X), 122(5X), 116(10X), 104(20X), 100(50X), 96(100X) |
| Focusing Accuracy | <1/40DF(2X), <1/40DF(5X), <1/40DF(10X), <1/40DF(20X), <1/40DF(50X), <1/30DF(100X) |
| Focusing Repeatability Accuracy | 7.64(2X), 2.15(5X), 1.09(10X), 0.51(20X), 0.50(50X), 0.25(100X) |
