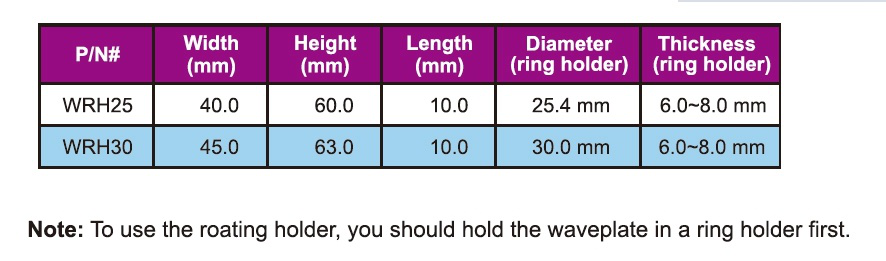

Waveplate and Rotating Holder

Operating Wavelength Band: 190-7000nm

Low-order waveplates are made of a single quartz or MgF2 crystal, achieving the required phase retardation through the optical path difference between the o-ray and e-ray of the crystal. Compared with zero-order waveplates, they have a simpler structure and lower cost, making them suitable for high-volume industrial applications. The single-plate structure gives them a very high damage threshold; the wavelength can be customized from 150 to 7000 nm, and all surfaces are AR coated.

1/2 Waveplate Model: WPL210 Diameter: 10.0mm Standard Holder Diameter: 25.4mm

Low-order waveplates are made of a single quartz or MgF2 crystal, achieving the required phase retardation through the optical path difference between the o-ray and e-ray of the crystal. Compared with zero-order waveplates, they have a simpler structure and lower cost, making them suitable for high-volume industrial applications. The single-plate structure gives them a very high damage threshold; the wavelength can be customized from 150 to 7000 nm, and all surfaces are AR coated.

1/2 Waveplate Model: WPL212 Diameter: 12.7mm Standard Holder Diameter: 25.4mm

Low-order waveplates are made of a single quartz or MgF2 crystal, achieving the required phase retardation through the optical path difference between the o-ray and e-ray of the crystal. Compared with zero-order waveplates, they have a simpler structure and lower cost, making them suitable for high-volume industrial applications. The single-plate structure gives them a very high damage threshold; the wavelength can be customized from 150 to 7000 nm, and all surfaces are AR coated.

1/2 Waveplate Model: WPL220 Diameter: 20.0mm Standard Holder Diameter: 25.4mm

Low-order waveplates are made of a single quartz or MgF2 crystal, achieving the required phase retardation through the optical path difference between the o-ray and e-ray of the crystal. Compared with zero-order waveplates, they have a simpler structure and lower cost, making them suitable for high-volume industrial applications. The single-plate structure gives them a very high damage threshold; the wavelength can be customized from 150 to 7000 nm, and all surfaces are AR coated.

A waveplate;
