Cube Beamsplitter
Cube beamsplitters are optical components designed to split a beam of light into two separate beams. They are widely used in laser systems, imaging, and optical testing applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Dimension | 5mm, 10mm, 20mm |
| Splitting Ratio | 50:50 |
| Wavelength Range | 550-950nm |

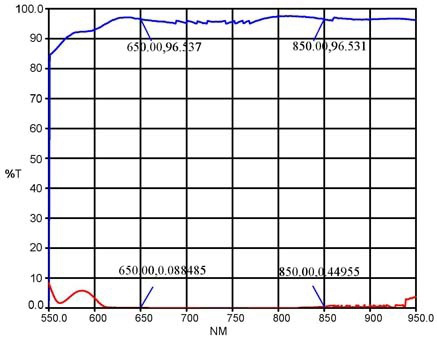

| Transmission | 96.5% at 650nm, 96.5% at 850nm |
| Reflection | 8.5% at 650nm, 4.5% at 850nm |
| Material | Optical glass |
| Surface Quality | 40/20 |
| Optical Deviation | <3 arcmin |
Applications
Key Features
Datasheet
Supplier Information
