PL516056AP0
High-performance optical lens designed for precision imaging applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Magnification | 0.56x |
| Working Distance | 309.9 |
| Image Distance | 139.24 |
| Conjugate Distance | 554.05 |
| Flange Focal Distance | 158.75 |
| Max Image Circle | Ø82 |
| F/# | F4-F16 |
| NA | 0.041 |
| EFL | 135 |
| ENP Diameter | 34.34 |
| Distortion | -0.046% |
| Relative Illumination | 92.23% |
Applications
Key Features
Datasheet
Supplier Information
Related Products
-

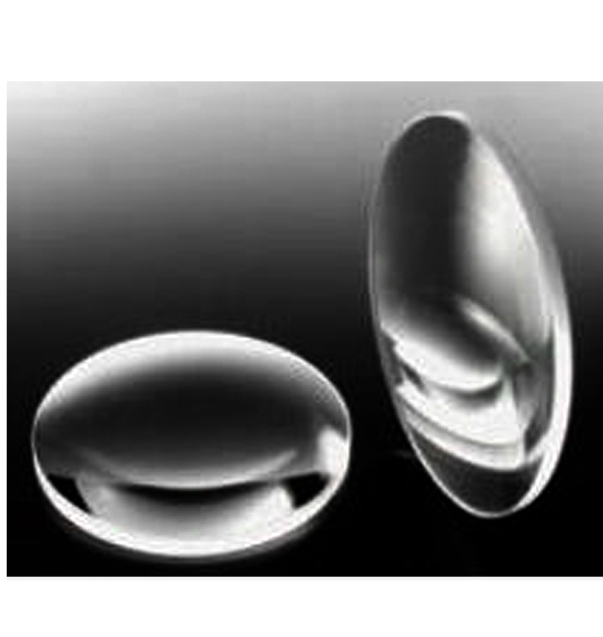

Plano-Convex Lenses
Optical Lenses
GoldDragonOptics
Diameter: 10mm, 20mm, 30mm Focal Length: 10mm, 20mm, 50mm Material: BK7, Fused Silica
Plano-convex lenses are optical components designed with one flat surface and one convex surface, ideal for focusing light and collimating divergent beams.
-

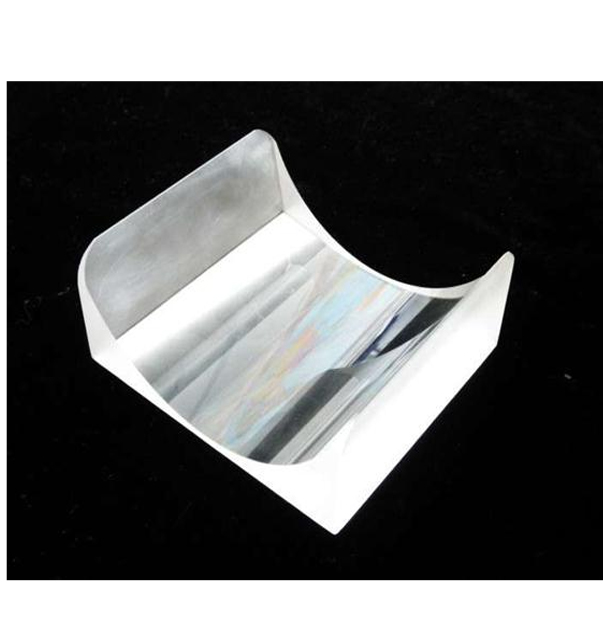

Plano-Concave Cylindrical Lens
