FFL3022
The FFL3022 lens is designed for precision optical applications, offering high magnification and low distortion for imaging systems.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Magnification | 0.35X |
| Working Distance(mm) | 40.2mm |
| Image Distance(mm) | 102.2mm |
| Flange Focal Distance(mm) | 101.1mm |
| Max Image Distance(mm) | 6.6mm |
| EFL | 30.2 |
| Optical Distortion | ≤0.27% |
| Relative Illumination | >99% |
Applications
Key Features
Datasheet
Supplier Information
Related Products
-

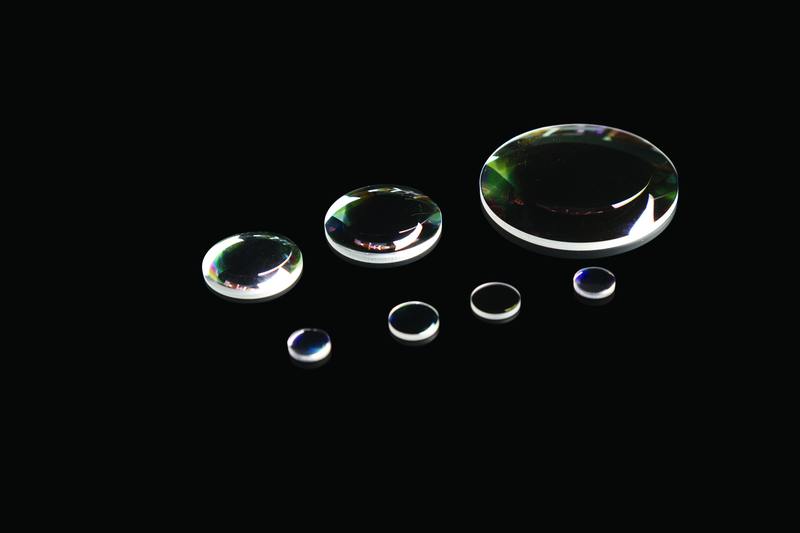

Bi-convex lens
Optical Lenses
Zeit-group
Material: H-K9L(BK7) / Quartz / Sapphire / CaF2 / BaF2 / MgF2 / Ge / ZnSe Optical Coating: As Required Surface Figure Accuracy: λ/6
Biconvex lenses primarily collect light from a point source or relay images to other optical systems.
-

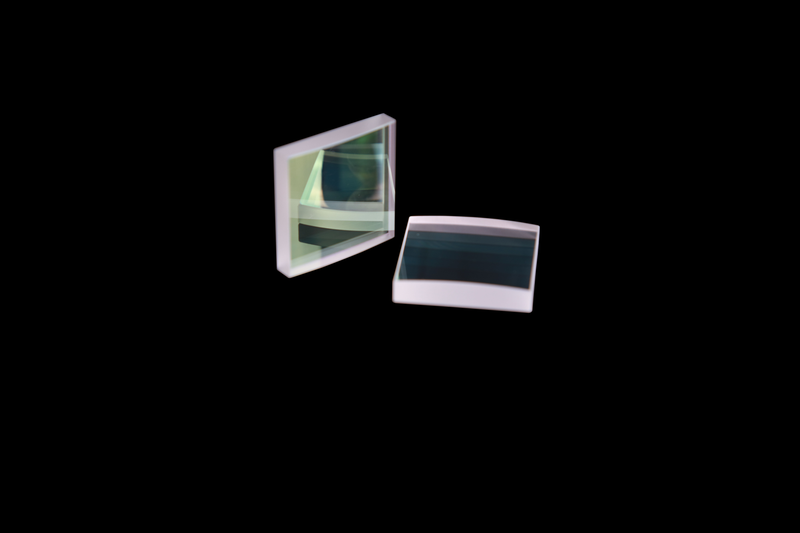

Plano-convex cylindrical lens
Optical Lenses
Zeit-group
Material: H-K9L(BK7) / Quartz Optical Coating: As Required Surface Figure Accuracy: λ/2
A plano-convex cylindrical lens forms a line image and controls beam size in only one direction.
-
Plano-convex lens
Optical Lenses
Zeit-group
Material: H-K9L(BK7) / Quartz / Sapphire / CaF2 / BaF2 / MgF2 / Ge / ZnSe Optical Coating: As Required Surface Figure Accuracy: λ/6
A spherical plano-convex lens operates by refraction.
-
Plano-concave cylindrical lens
Optical Lenses
Zeit-group
Material: H-K9L(BK7) / Quartz Optical Coating: As Required Surface Figure Accuracy: λ/2
A plano-concave cylindrical lens forms a diverging line-shaped virtual image and controls beam size in only one direction.
-
Plano-concave lens
Optical Lenses
Zeit-group
Material: H-K9L(BK7) / Quartz / Sapphire / CaF2 / BaF2 / MgF2 / Ge / ZnSe Optical Coating: As Required Surface Figure Accuracy: λ/6
A plano-concave lens has a negative focal length and diverges a collimated beam.
