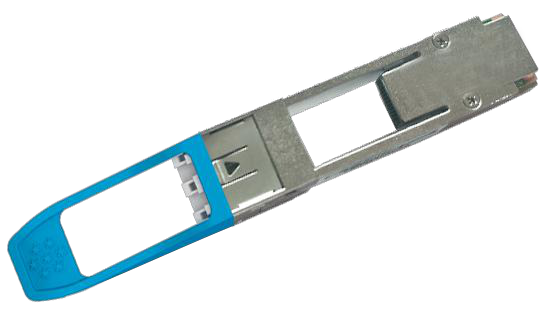

QSFP to SFP+ Adapter (QSA) Module
The Gigalight QSFP to SFP+ Adapter (QSA) Module offers 10Gigabit Ethernet connectivity for Quad Small Form-Factor Pluggable (QSFP)-only platforms. It allows smooth and cost-effective migration to 40 Gigabit Ethernet by providing an option to use lower-speed Enhanced Small Form-Factor Pluggable (SFP+) modules in empty QSFP ports or when the other end of the network is running at lower speeds.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Operating Case Temperature | -20 to 85°C |
| Storage Temperature | -40 to 85°C |
| Relative Humidity (non-condensation) | - to 85% |
| Supply Voltage | 3.15-3.45V |
| Power Consumption | 0.3W |
| Characteristic Impedance | 90-110Ω |
