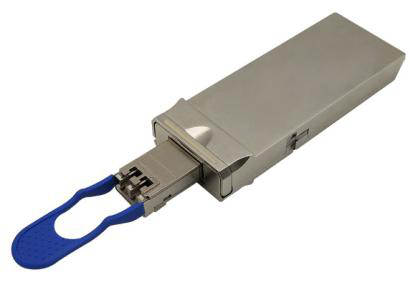

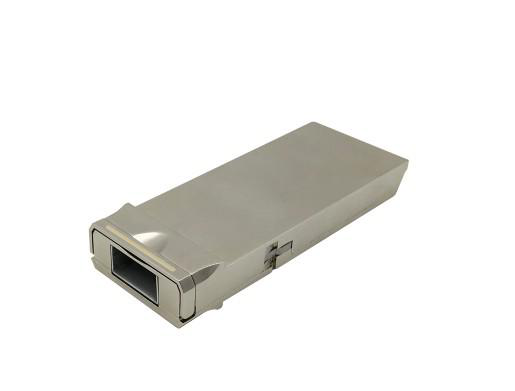

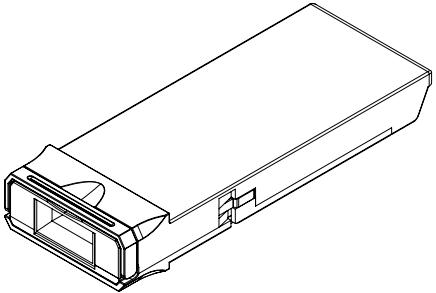

100G CFP2 to QSFP28 Adapter

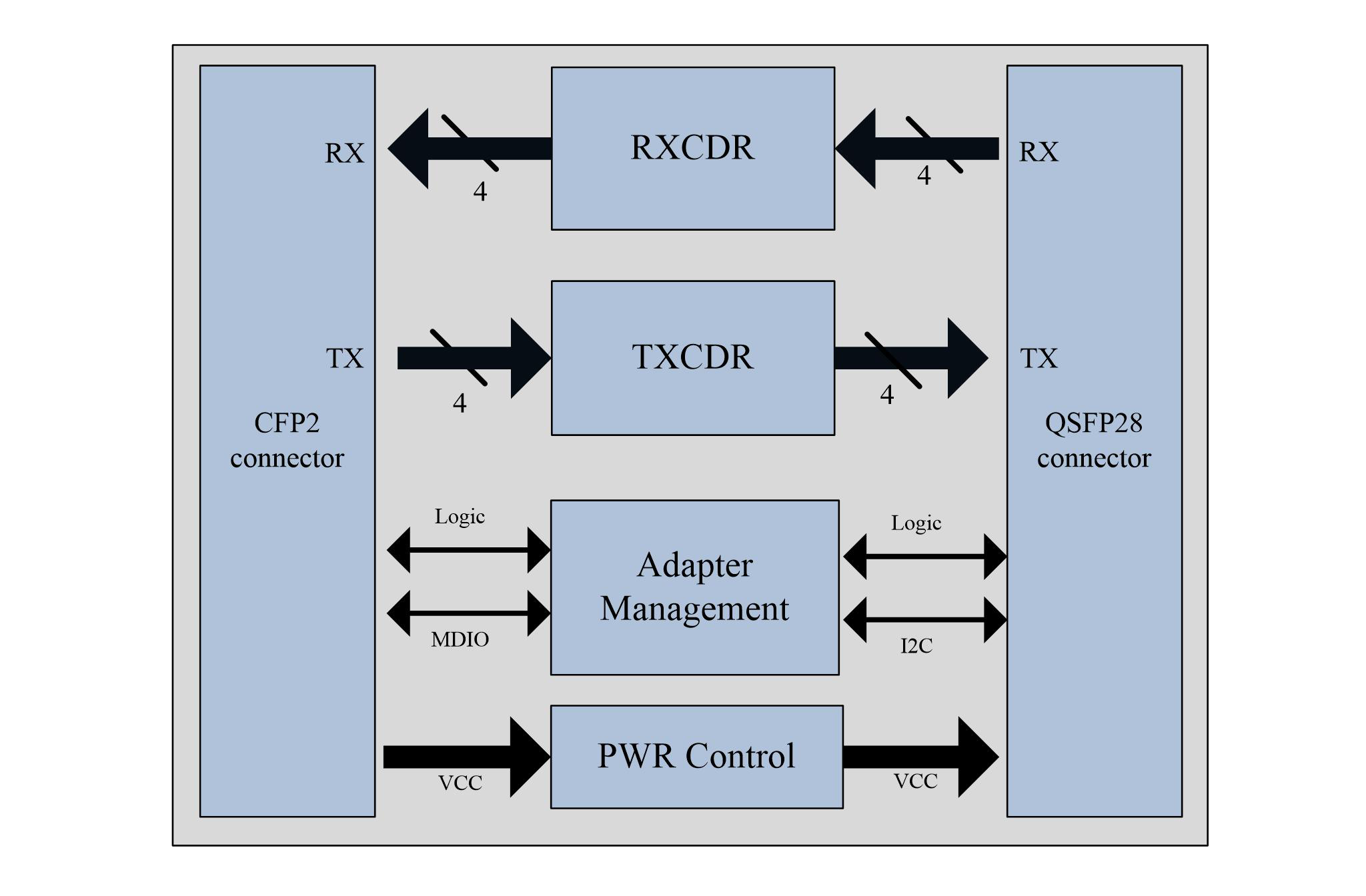

The 100G CFP2 to QSFP28 Adapter module is a four-channel, high-performance, hot-pluggable, and interconnect solution supporting 100G Ethernet and Telecom. The adapter converts a CFP MSA interface to 1-port of 100G QSFP28. It integrates four data lanes in each direction with operating at up to 28Gbps per lane.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Supply Voltage | 3.13-3.47V |
| Input Voltage | -0.3-Vcc+0.3V |
| Storage Temperature | -20-85°C |
| Humidity(non-condensing) | 5-85% |
| Operating Case Temperature | 0-70°C |
| Data Rate Per Lane | 25.78125-27.952Gbps |
| Power Dissipation | 2W |
| Low Power Mode Dissipation | 2W |
| Differential Input Impedance | 90-110Ω |
| Differential Output Impedance | 90-110Ω |
| Differential Input Voltage Amplitude | 300-900mVp-p |
| Differential Output Voltage Amplitude | 400-800mVp-p |
| Bit Error Rate | E-12 |
Applications
Key Features
Datasheet
