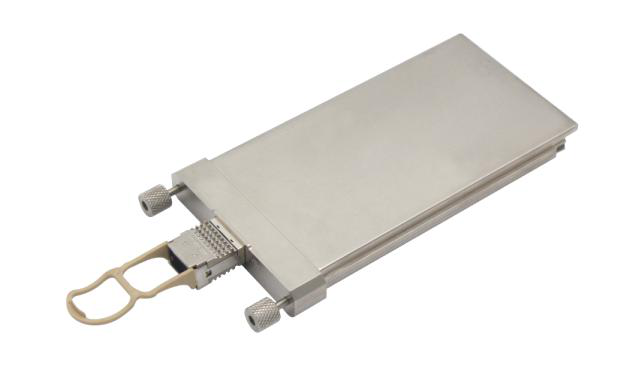

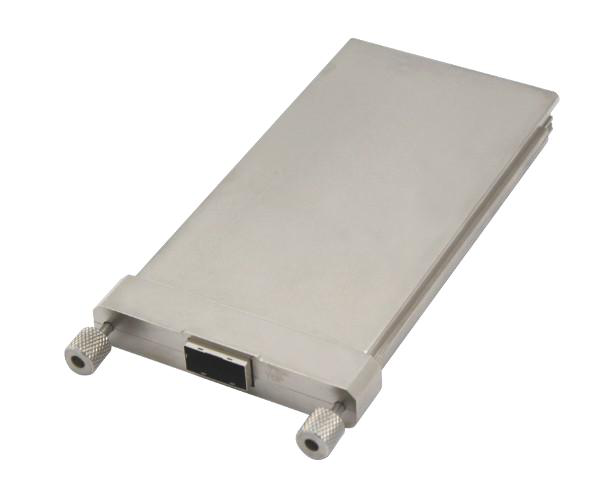

GIGALIGHT 100G CFP to QSFP28 Adapter

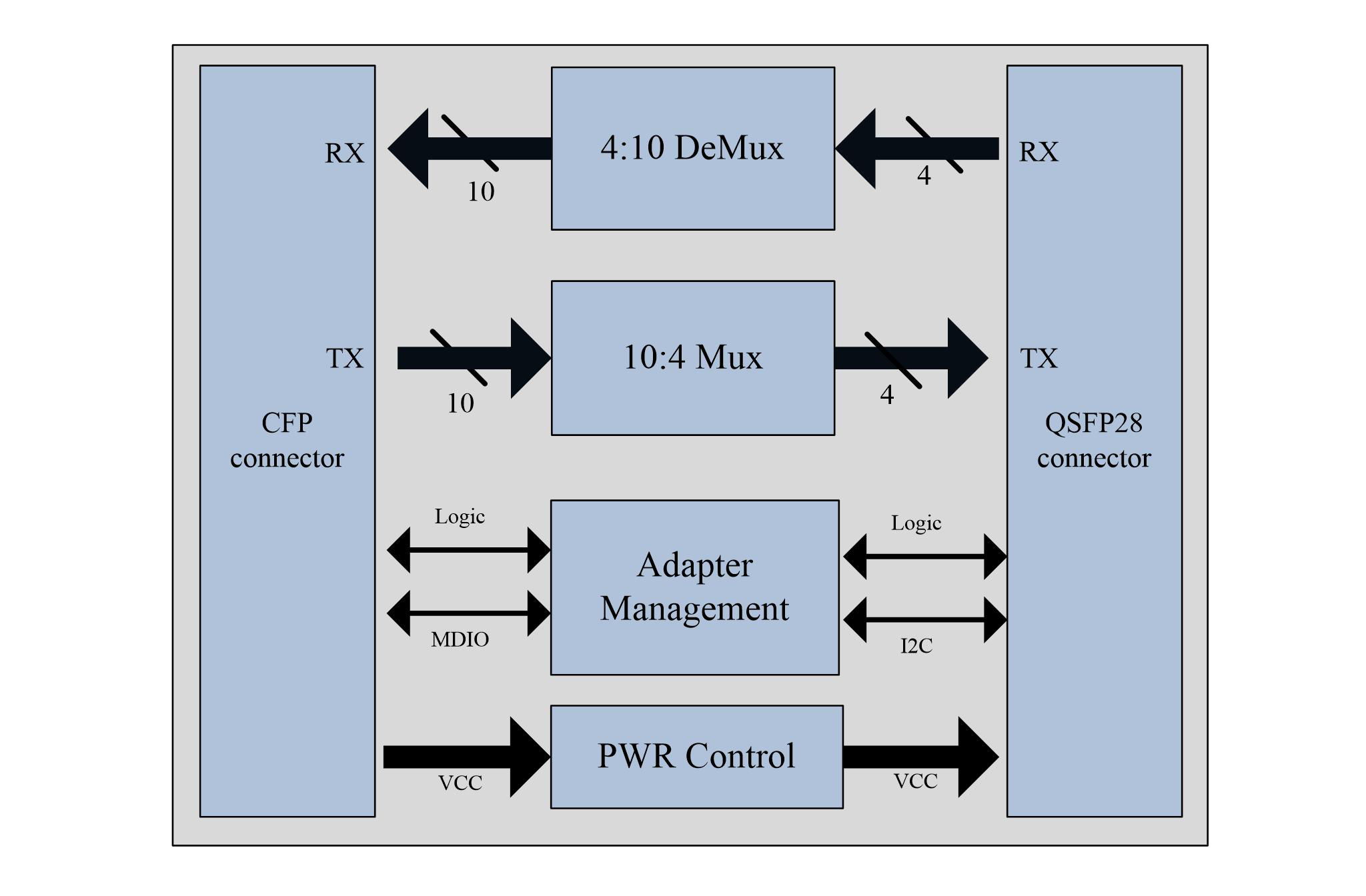

The GIGALIGHT 100G CFP to QSFP28 Adapter is a high-performance, hot-pluggable interconnect solution supporting 100G Ethernet and Telecom. It converts a CFP MSA interface to one port of 100GE QSFP28, enabling the conversion of 10 bidirectional 10G channels to 4 bidirectional 25G channels operating at up to 28Gbps per channel.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Supply Voltage | 3.13-3.47V |
| Input Voltage | -0.3-Vcc+0.3V |
| Storage Temperature | -20-85°C |
| Humidity (non-condensing) | 5-85% |
| Operating Case Temperature | 0-70°C |
| Data Rate Per Lane (10GBE) | 10.3125-11.2Gbps |
| Data Rate Per Lane (25GBE) | 25.78125-27.952Gbps |
| Power Dissipation | ≤5W |
| Low Power Mode Dissipation | 2W |
| Aggregate Bit Rate | 103.125-111.8Gbps |
| Differential Input Impedance | 90-100-110Ω |
| Differential Output Impedance | 90-100-110Ω |
| Differential Input Voltage Amplitude (10GBE) | 120-820mVp-p |
| Differential Output Voltage Amplitude (10GBE) | 300-820mVp-p |
| Differential Input Voltage Amplitude (25GBE) | 300-1100mVp-p |
| Differential Output Voltage Amplitude (25GBE) | 500-900mVp-p |
| Bit Error Rate | E-12 |
| Input Logic Level High | 2.0-Vcc+0.3V |
| Input Logic Level Low | -0.3-0.8V |
| Output Logic Level High | Vcc-0.2-VccV |
| Output Logic Level Low | -0.3-0.2V |
| Reference Clock Impedance | 80-100-120Ω |
| Reference Clock Frequency | 161.132815-174.703087MHz |
| Reference Clock Frequency Stability | -100-100ppm |
| Reference Clock Output Differential Voltage | 400-1200mV |
| RMS Jitter | 10ps |
| Clock Duty Cycle | 40-60% |
| Clock Rise/Fall Time (0%-90%) | 200-1250ps |
| Clock Rise/Fall Time (0%-16%) | 50-315ps |
