D-BEAM320

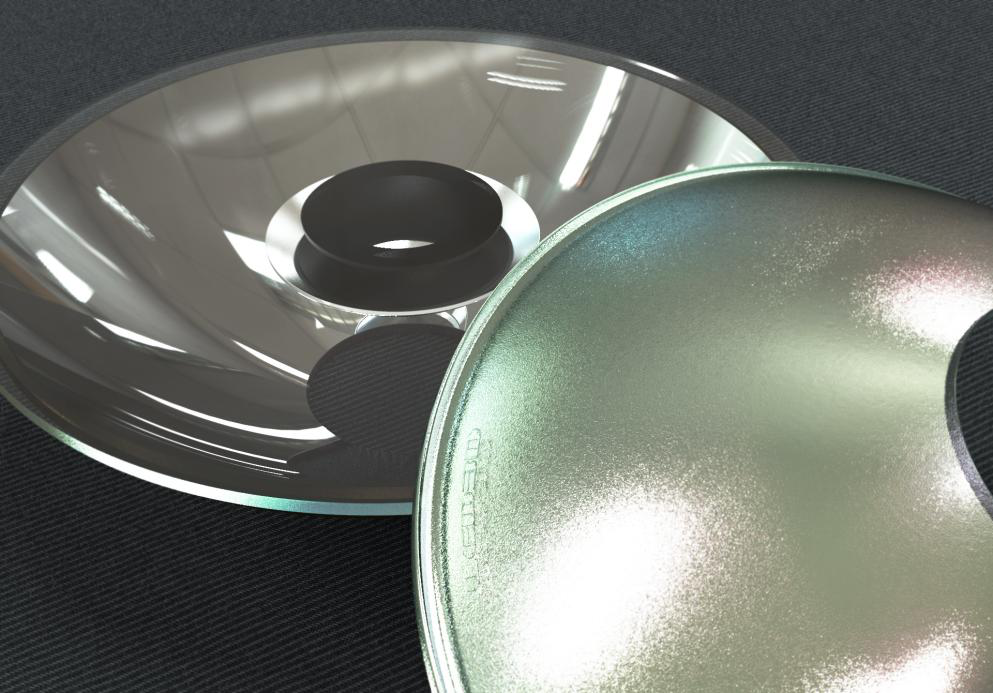

D-BEAM320 is a large-diameter optical reflector made of glass molding and grinding processes. It features excellent light reflection and precise beam control, achieving a minimum beam angle of 1°. The product is suitable for LED matrix modules and is ideal for applications requiring high precision and brightness.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|

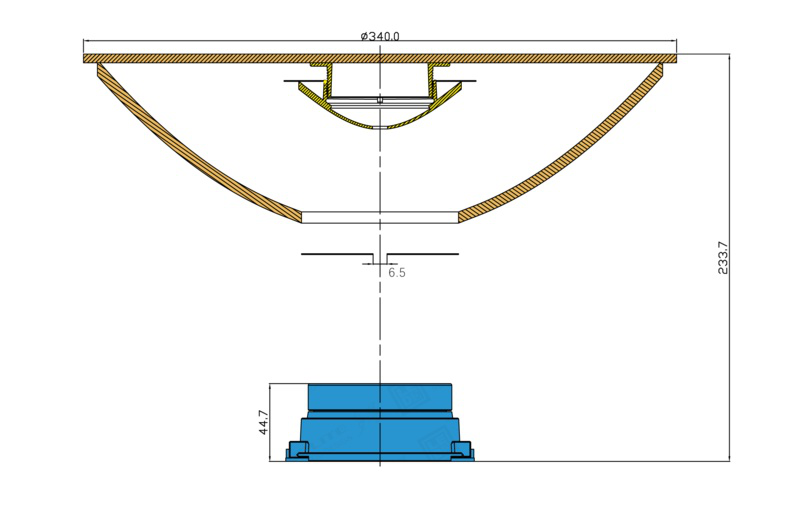

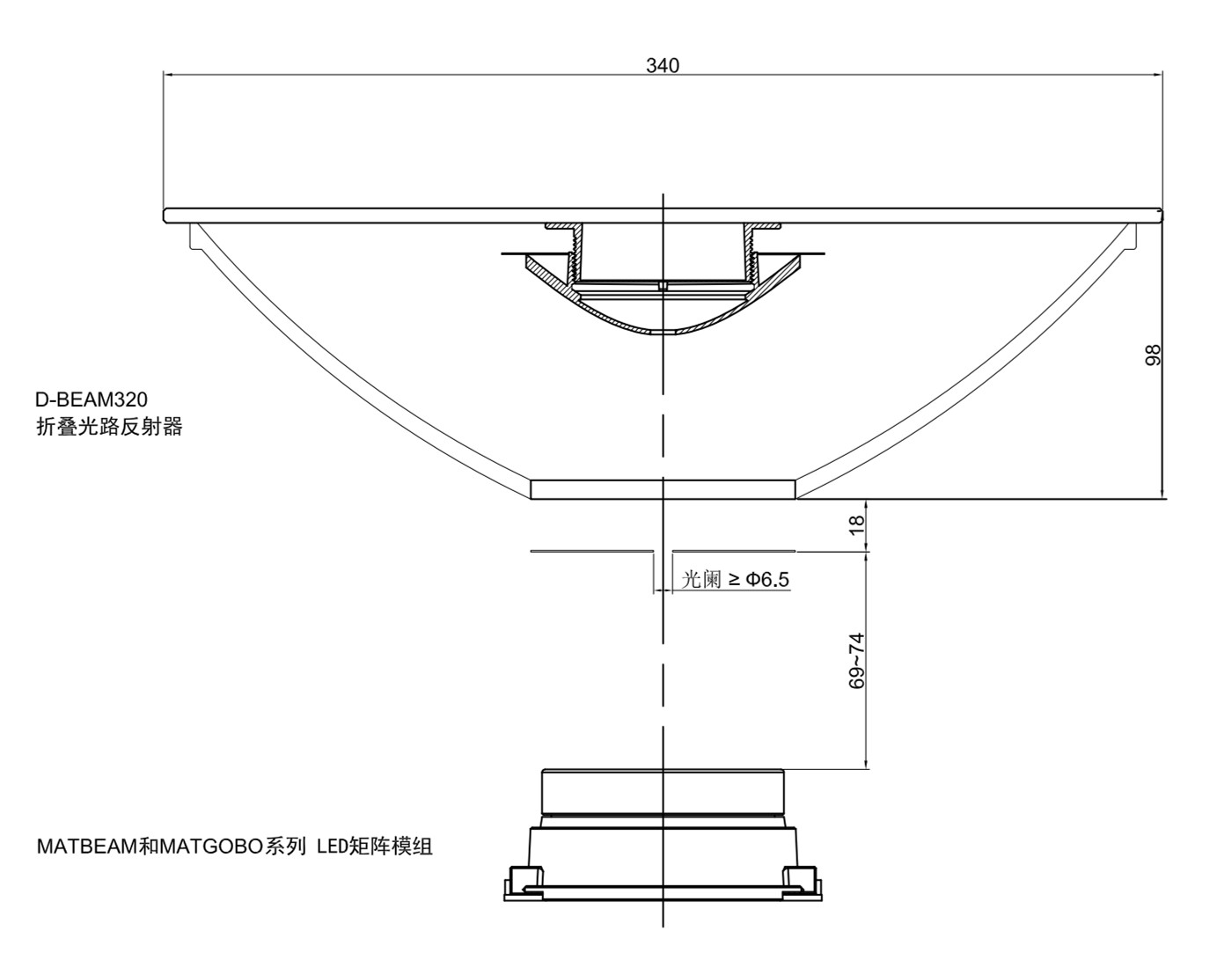

| Dimensions | 340mm×97mm |
| Light Output Diameter | Φ320mm |
| Minimum Beam Angle | ≤1° |
| Compatible Light Source | LED matrix modules |
| Lamp Model MATBEAM360 | OSTAR® Projection Compact KW CSLNM1.TG |
| Module Power MATBEAM360 | 330W |
| Illuminance at 10m MATBEAM360 | 85000lx |
| Minimum Beam Angle MATBEAM360 | 1° |
| Lamp Model MATBEAM360-SFT12 | SFT12 |
| Module Power MATBEAM360-SFT12 | 520W |
| Illuminance at 10m MATBEAM360-SFT12 | 100000lx |
| Minimum Beam Angle MATBEAM360-SFT12 | 1° |
| Lamp Model MATBEAM1000 | DGY-T-TN-50-300-11-A2 |
| Module Power MATBEAM1000 | 800W |
| Illuminance at 10m MATBEAM1000 | 125000lx |
| Minimum Beam Angle MATBEAM1000 | 2.9° |
| Lamp Model MATGOBO600 | DGY-T-TN-50-300-11-A2 |
| Module Power MATGOBO600 | 1300W |
| Illuminance at 10m MATGOBO600 | 110000lx |
| Minimum Beam Angle MATGOBO600 | 4° |
