45° Mirror
The 45° Mirror is a high-precision optical component designed for applications requiring precise light reflection and redirection. It is crafted with high-quality materials to ensure excellent performance and durability.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Diameter | Customizable |
| Thickness | Customizable |
| Reflection Angle | 45° |
| Surface Quality | 40-20 scratch-dig |

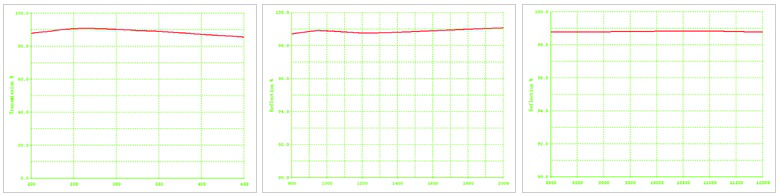

| Reflectivity | >99% |
| Wavelength Range | 200-2000nm |
Applications
Key Features
Datasheet
Supplier Information
