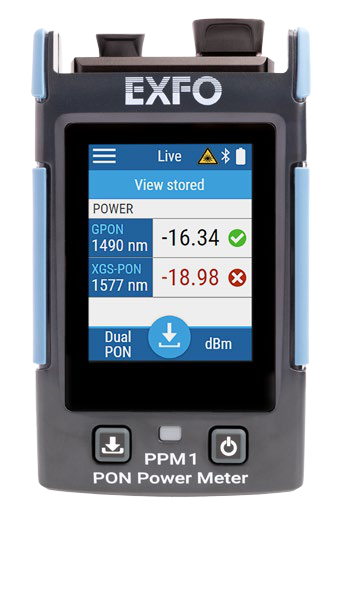

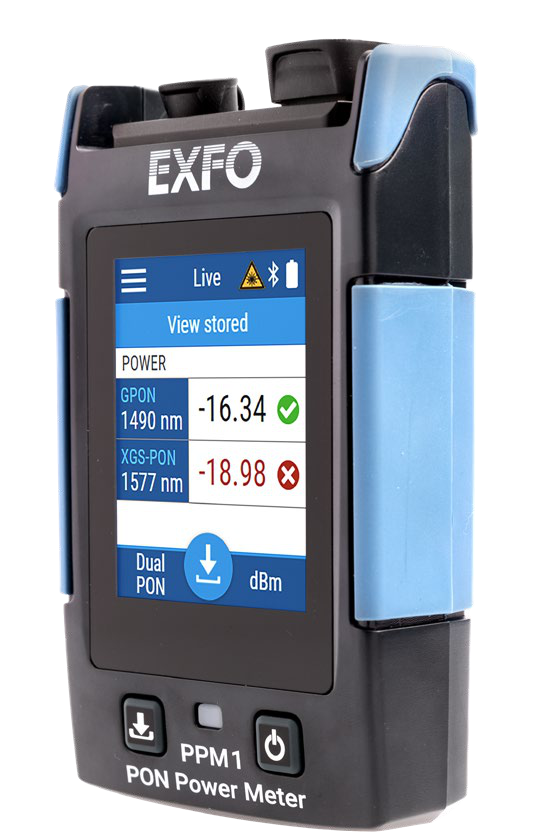

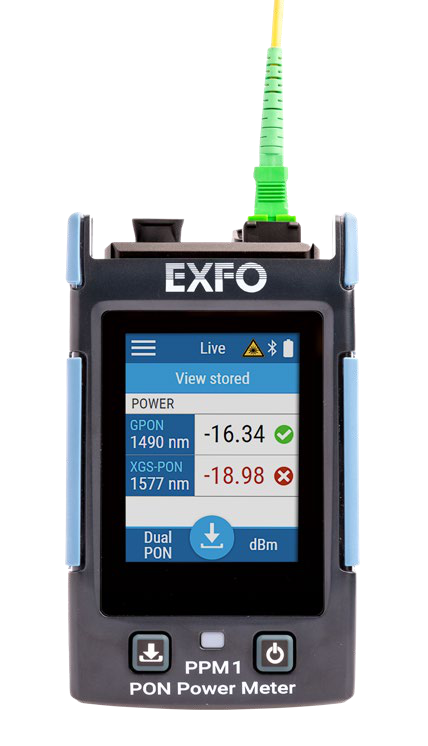

PPM1 Service Activation PON Power Meter
The PPM1 is a versatile dual-layer tester designed for service activation of Passive Optical Networks (PON) with added broadband capabilities. It supports multiple PON technologies and provides reliable and accurate power measurements.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Spectral Passband (nm) PPM1-D | 1490±10, 1550±10, 1577±10 |
| Spectral Passband (nm) PPM1-PRO-D | 1490±10, 1550±10, 1577±10 |
| Calibrated Wavelengths (nm) PPM1-D | 1490, 1550, 1577 |
| Calibrated Wavelengths (nm) PPM1-PRO-D | 1310, 1490, 1550, 1577, 1625 |
| Power Measurement Range (dBm) PPM1-D | 15 to -45 |
| Power Measurement Range (dBm) PPM1-PRO-D | 15 to -45 |
| Power Uncertainty (dB) | 0.5 |
| ORL (dB) | 55 |
| Visual Fault Locator | No (PPM1-D), Yes (PPM1-PRO-D) |
| Dedicated Live Tone Detection | Yes |
| Wavelength Measurement Range (nm) PPM1-PRO-D | 1260 to 1469, 1481 to 1499, 1511 to 1625 |
| Display Size | 71mm (2.8in) |
| Weight (with battery) | 225g (0.5lb) |

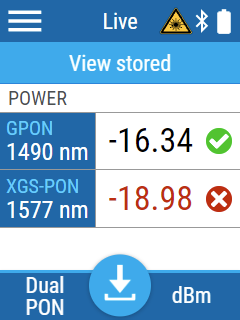

| Display Type | Color display with capacitive touchscreen |
| Interface Languages | Chinese (Simplified and Traditional), English, French, German, Spanish, Italian |
| Battery Autonomy | 10h (continuous use at brightness 50%, BLE: ON, AUTO: OFF) |
| Battery Charging | USB type C charging port connector, AC/DC charger/adapter input: 100-240V; 50/60Hz; 1.0A max, output: 5V; 2A |
| Storage Capacity | 1000 test results for local reading |
| Warranty | 1 year |
| Calibration Interval | 3 years |
| Temperature | Storage: -40°C to 70°C (-40°F to 158°F), Operating: -10°C to 50°C (14°F to 122°F) |
| Interfaces | Bluetooth 5.0 with BLE, USB type C |
