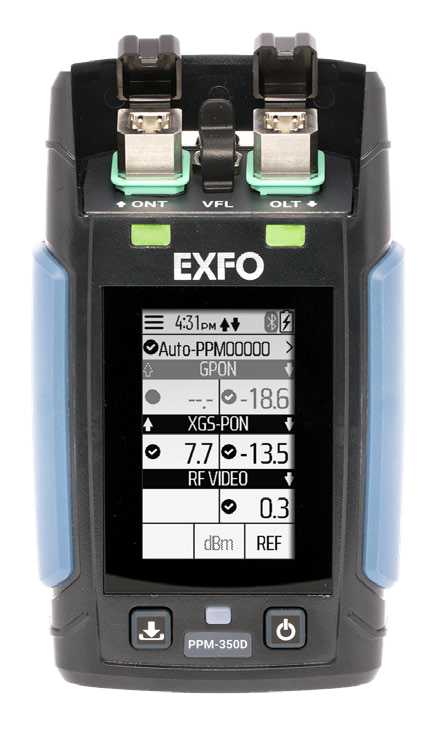

PPM-350D PON Power Meter
The PPM-350D PON Power Meter is an intelligent device designed to test any PON technology with its patented PON-aware capability, automatically detecting and adapting test parameters to the PON technology in use.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Storage Capacity | Up to 3500 results |
| Battery Autonomy | 8 hours of continuous use |
| Battery Charge Time | <2 hours |
| Display Resolution | 0.01 |
| Measurement Units | dB |
| Measurement Units | dBm |
| Dimensions | 154mm×88mm×41mm |
| Display Size | 69mm (2.7in) |
| Weight | 420g (0.93lb) |
| Display Type | Reflective |
| Display Pixel Count | 400×240 |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -40°C to 70°C |
| Connectivity | Bluetooth low energy |
| Connectivity | USB Type C |
| Smart Device OS Compatibility | Android 6 and above, iOS 11 and above |
| Warranty | 1 year |
| Power Measurement Range | -50 to 13dBm |
| Calibrated Wavelength | 1270nm, 1310nm, 1490nm, 1550nm, 1578nm, 1596-1603nm, 1610nm |
| Maximum Safe Power | 16dBm, 17dBm, 20dBm, 27dBm |
| Pass-through Insertion Loss | 1.5dB |
| Power Uncertainty | ±0.5dB |
| Laser Wavelength | 650nm±10nm |
| Laser Safety | Class 2 |
