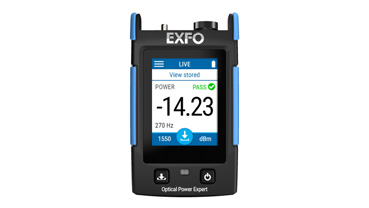

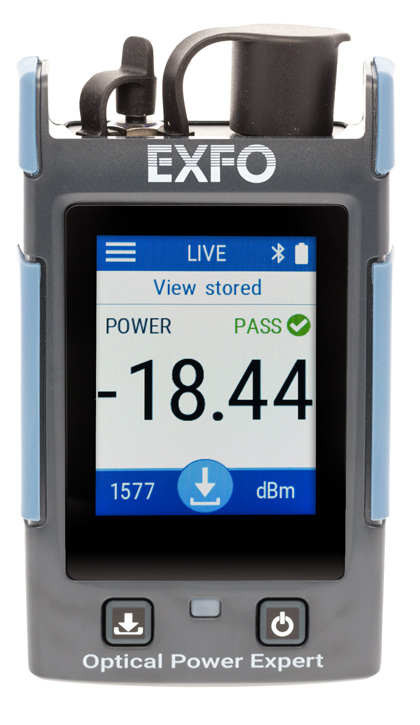

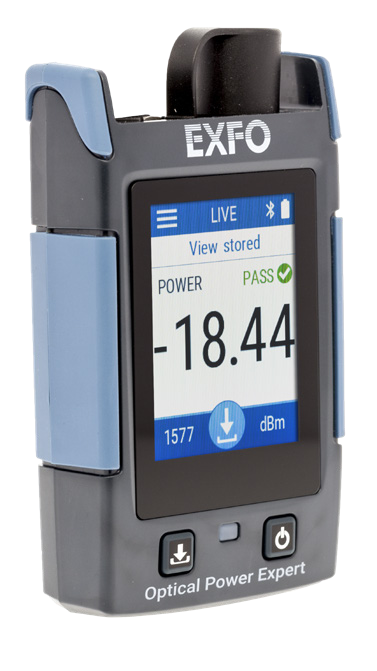

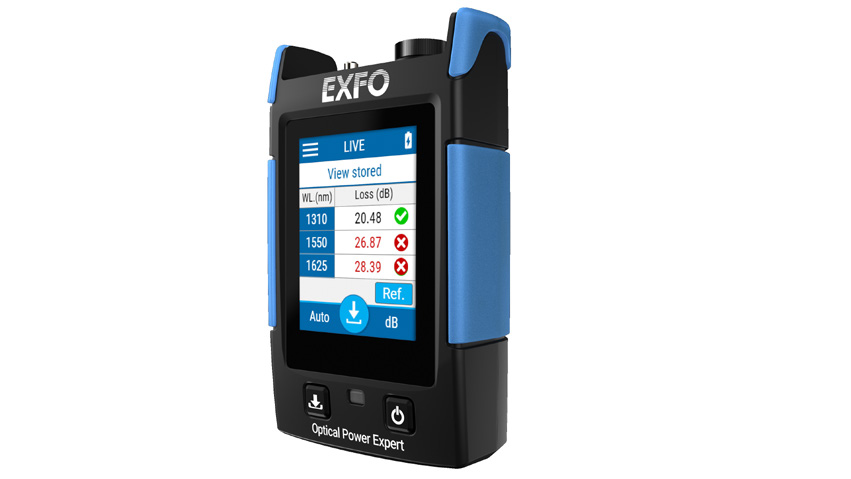

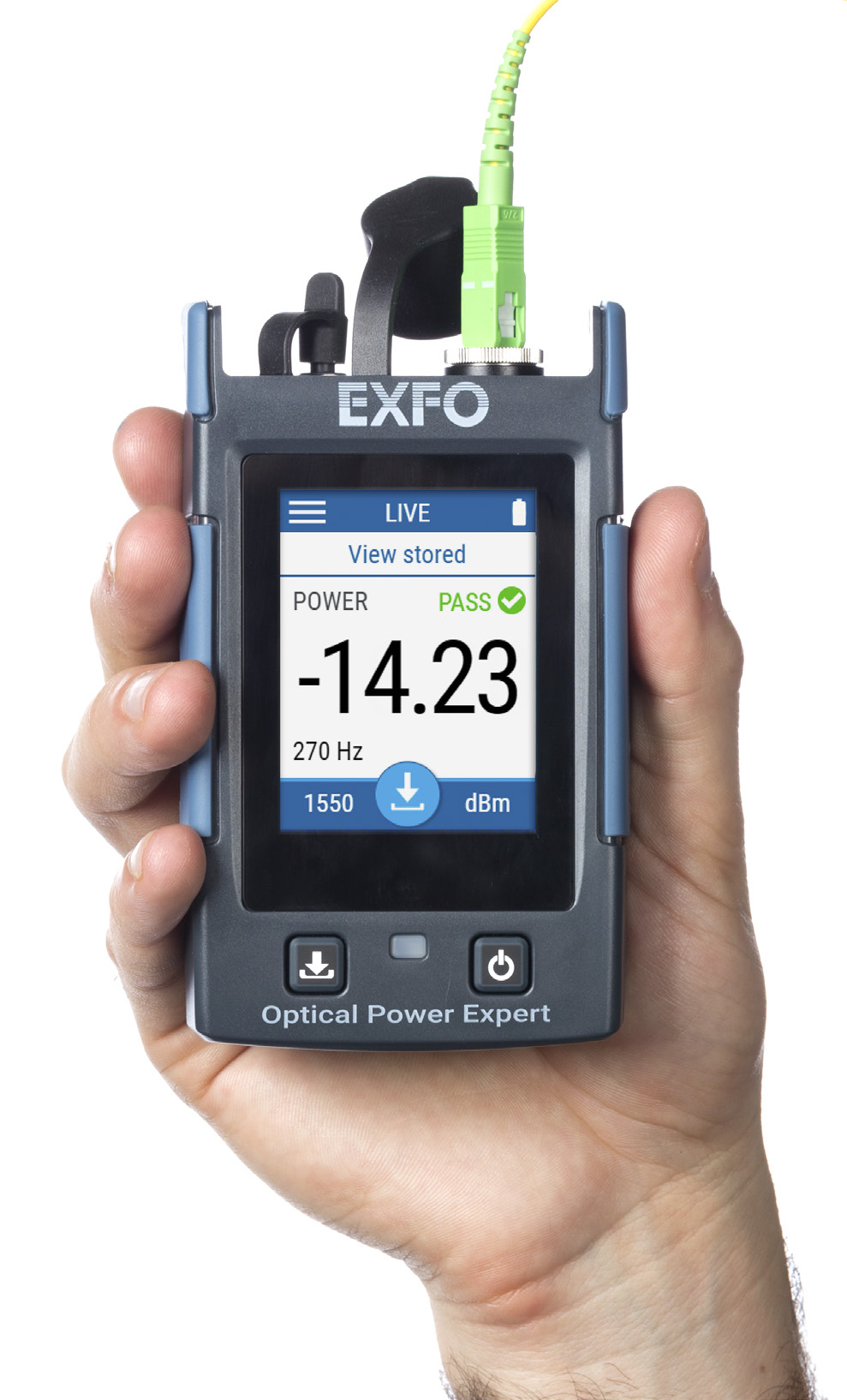

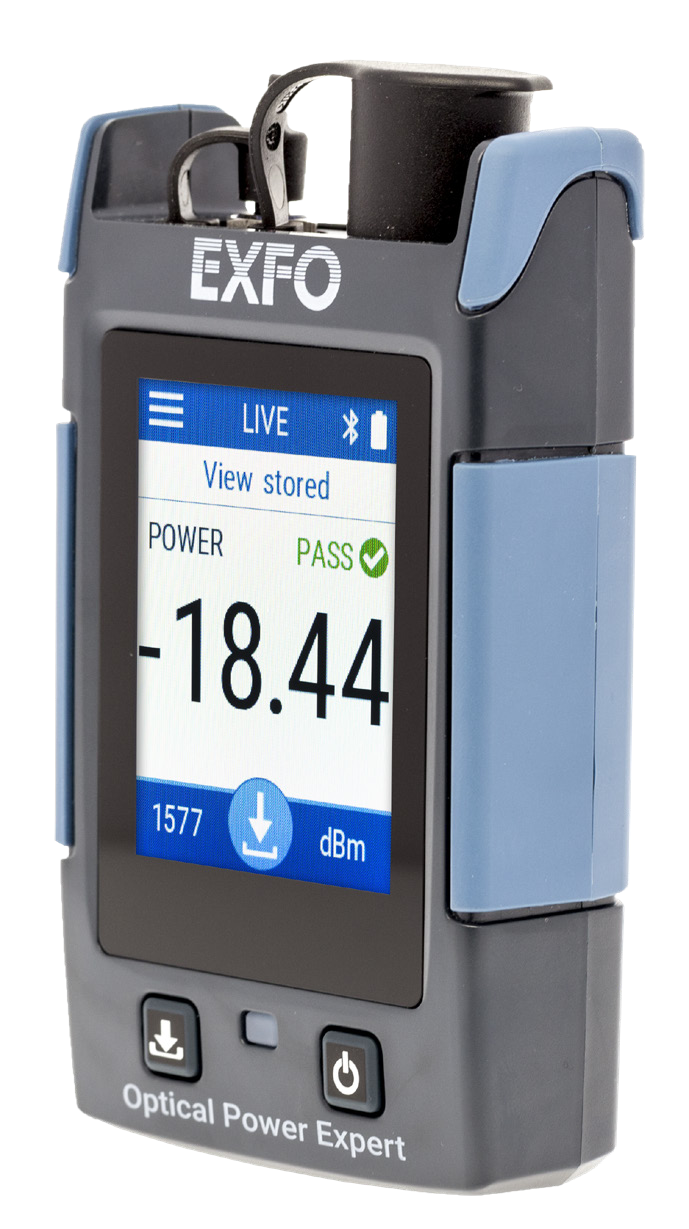

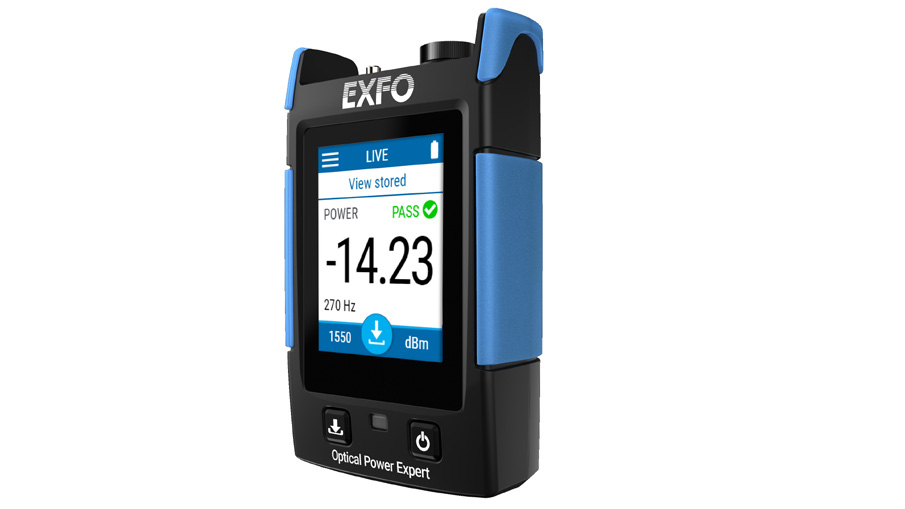

Optical Power Expert
State-of-the-art optical power meter with Bluetooth connectivity, wide touchscreen, and best-in-class optical performance. Compact and rugged design for field use.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Power Measurement Range (dBm) PX1-S | 10 to -70 |
| Power Measurement Range (dBm) PX1-H | 26 to -50 |
| Power Measurement Range (dBm) PX1-PRO-S | 10 to -70 |
| Power Measurement Range (dBm) PX1-PRO-H | 26 to -50 |
| Power Uncertainty | ±5% |
| Measurement Units | dB, dBm, Watt (W, mW, nW, pW) |
| Wavelength Measurement Range (nm) PX1 | 830 to 1625 |
| Wavelength Measurement Range (nm) PX1-PRO | 780 to 1650 |
| Calibrated Wavelengths PX1 | 830, 850, 980, 1030, 1310, 1450, 1490, 1550, 1577, 1590, 1625 |
| Calibrated Wavelengths PX1-PRO | 800, 820, 830, 840, 850, 860, 870, 880, 890, 1270, 1280, 1290, 1300, 1310, 1320, 1330, 1340, 1350, 1370, 1390, 1410, 1430, 1440, 1470, 1480, 1490, 1500, 1510, 1520, 1530, 1540, 1545, 1550, 1570, 1577, 1580, 1590, 1600, 1610, 1620, 1630, 1640, 1650 |
| Auto-Wavelength Recognition PX1 | No |
| Auto-Wavelength Recognition PX1-PRO | Yes |
| Auto-Wavelength Switching PX1 | No |
| Auto-Wavelength Switching PX1-PRO | Yes |
| Wavelength Bundles PX1 | No |
| Wavelength Bundles PX1-PRO | Yes |
| Tone Detection | 270Hz, 330Hz, 1kHz, 2kHz |
| Display Type | Color display with capacitive touchscreen |
| Interface Languages | Chinese (Simplified and Traditional), English, French, German, Russian, Spanish |
| Battery Charging Time | <3 hours |
| Charging Port Connector | USB Type C |
| Battery Type | Rechargeable LiPo |
| Battery Autonomy | 10h (continuous use) |

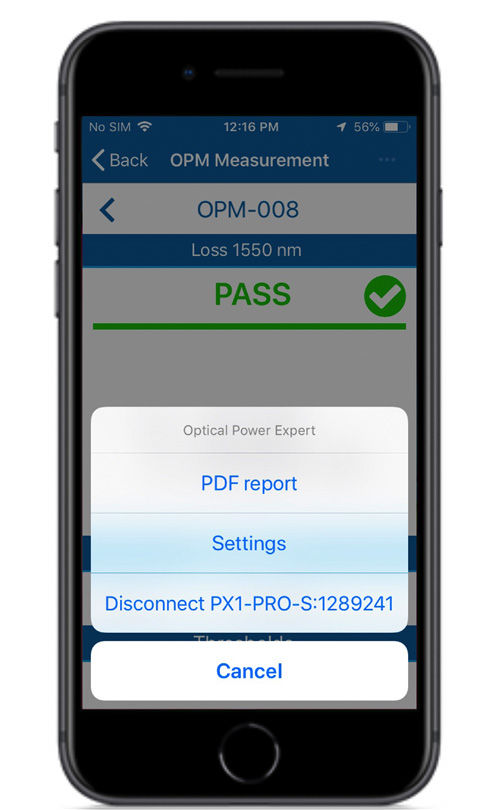

| Interfaces | Bluetooth 5.0 with BLE, USB Type C |
| Storage Capacity | 1000 test results |
| Warranty | 3 years |
| Calibration Interval | 3 years |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Operating Temperature | -10°C to 50°C (14°F to 122°F) |
| Dimensions | 133mm x 78mm x 30mm (5¼in x 3in x 1¼in) |
| Display Size | 71mm (2.8in) |
| Weight | 225g (0.5lb) |
| Visual Fault Locator Wavelength | 650nm ±10nm |
| Visual Fault Locator Modes | Continuous |
| Visual Fault Locator Modes | Blink Slow |
| Visual Fault Locator Modes | Blink Fast |
| Laser Safety Class | Class 1 |
| Laser Power | ≤1.5dBm (0.7mW) |
