MaxTester 945 Telco OLTS

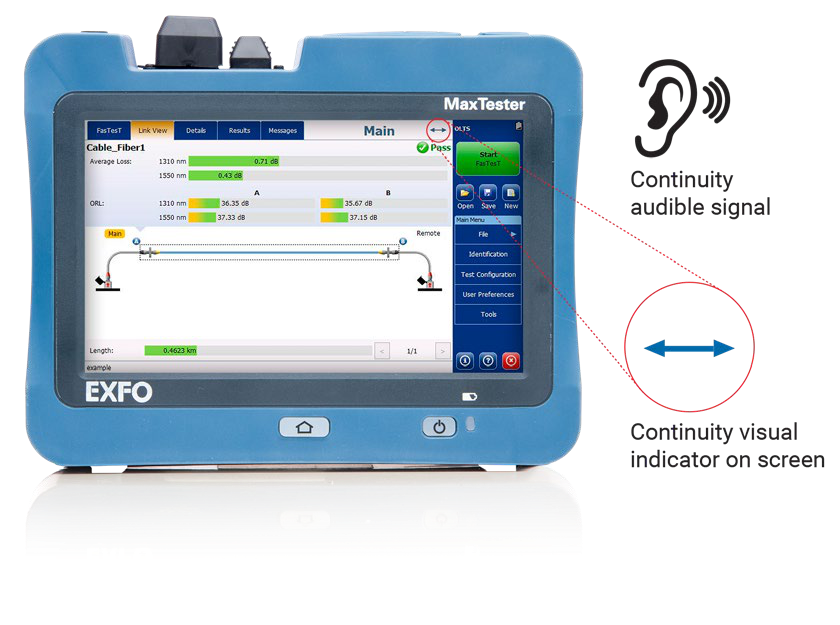

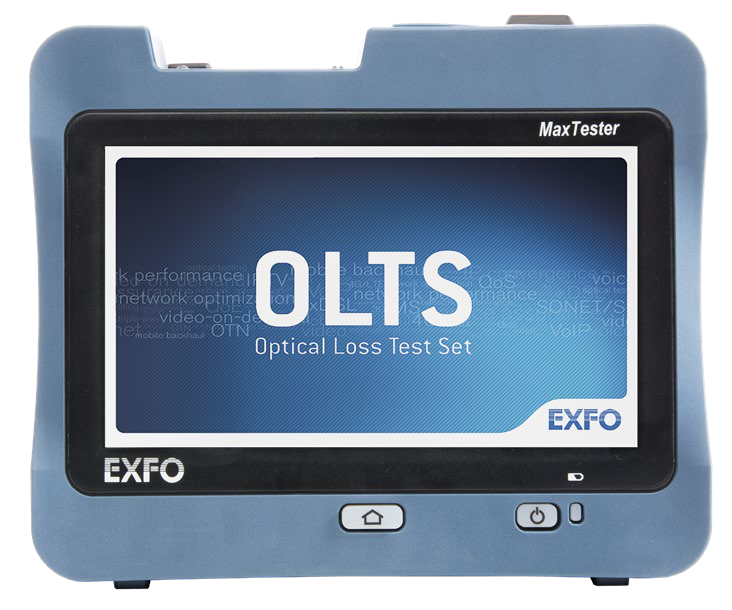

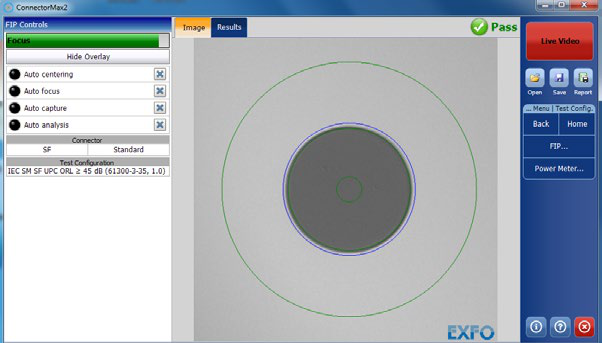

The MaxTester 945 Telco OLTS is a fully automated, tablet-inspired optical loss test set designed for bidirectional measurements of insertion loss, optical return loss, and fiber length at two wavelengths in under 5 seconds. It features a 7-inch high-resolution touchscreen, onboard diagnostics, and automated fiber inspection capabilities.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Laser Wavelength | 650nm±10nm |
| Laser Safety Class | Class 2 |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -30°C to 70°C |
| Relative Humidity | 0% to 95% non-condensing |
| Display | 7-inch (178mm) outdoor-enhanced touchscreen, 800x480 TFT |
| Dimensions (H x W x D) | 166mm x 200mm x 68mm |
| Weight (with battery) | 1.5kg |

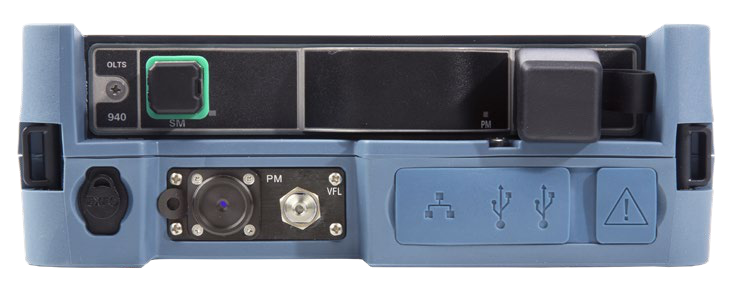

| Interfaces | Two USB 2.0 ports, RJ45 LAN 10/100Mbit/s, Optional Wi-Fi/Bluetooth |
| Storage | 6GB internal memory (150,000 test results, typical) |
| Battery Type | Rechargeable lithium-polymer battery |
| Battery Life | 12 hours of operation |
| Power Supply | AC/DC adapter, input 100-240VAC, 50-60Hz |
| Warranty | 1 year |
| Calibration Interval (Years) | 3 |
| Detector Type | GeX |
| Uncertainty | ±(5%+10nW) |
| Measurement Range (dBm) | 25 to -50 |
| Wavelength Range (nm) | 850, 1300, 1310, 1490, 1550, 1577, 1625, 1650 |
| Tone Detection (Hz) | 270/330/1000/2000 |
| Output power (dBm) | SM1: 2.5, SM3: 1/-1/-5, SM4: 1/-5/-1 |
| Output Power Stability (dB) | ±0.05 over 8 hours |
| Testing Speed | FasTesT Simplex: 3 seconds (two wavelengths, bidirectional, automated, IL + fiber length), FasTesT Simplex: 6 seconds (three wavelengths, bidirectional, automated, IL + ORL + fiber length) |
| Wavelengths (nm) | 1310±20, 1550±20, 1625±20 |
| Loss Range (dB) | 45 |
| Length measurement range (km) | Singlemode: 200 |
| Length Measurement Uncertainty | Simplex: ±(1m+0.5% length) |
| ORL Measurement Uncertainty (dB) | ±1 |
| ORL Range (APC/UPC link) | 65/55 |
| ORL Resolution (dB) | 0.01 |
