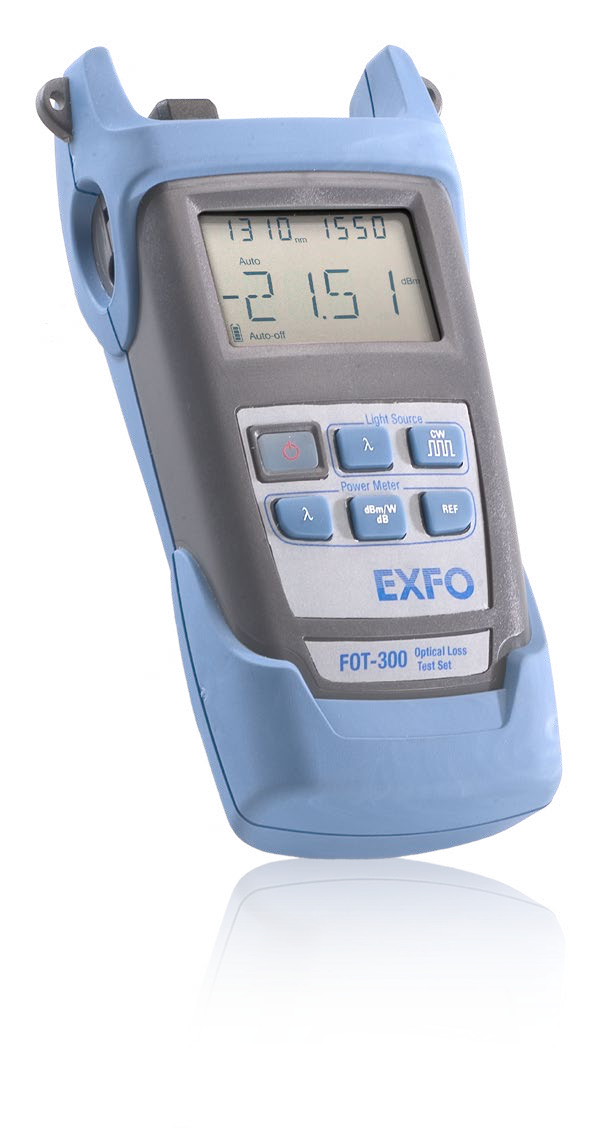

FOT-300 Optical Loss Test Set (OLTS)
The FOT-300 is a highly optimized optical loss test set designed for testing singlemode and multimode wavelengths on a single port. It integrates a power meter and light source for efficient and accurate measurements.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Power Meter Port | Ge |
| Power Meter Port | GeX |
| Power Range | 10 to -60 dBm (FOT-302), 26 to -50 dBm (FOT-302X) |
| Range Displayed | Down to -65 dBm (FOT-302), Down to -50 dBm (FOT-302X) |
| Number of Calibrated Wavelengths | 10 |
| Power Uncertainty | ±5% ±1 nW |
| Resolution | 0.01 dB |
| Automatic Offset Nulling | Yes |
| Display Units | dB/dBm/W |
| Automatic Wavelength Recognition | Yes |
| Screen Refresh Rate | 3 Hz |
| Tone Detection | 270 Hz, 1 kHz, 2 kHz |
| Battery Life (hours) | 260 |
| Model | 23BL, 12D, 235BL |
| Central Wavelength | 1310±20 nm, 1550±20 nm (23BL); 850±25 nm, 1300±50 nm (12D); 1310±20 nm, 1490±20 nm, 1550±20 nm (235BL) |
| Spectral Width | ≤5 nm (23BL, 235BL); 50/135 nm (12D) |
| Output Power | ≥-1 dBm (23BL); -20/-20/-20 dBm (12D); -1/-4.5/-3 dBm (235BL) |
| Power Stability | ±0.1 dB (8 h) |
| Battery Life | 120 h (12D); 260 h (23BL, 235BL) |
| Tone Generation | 270 Hz, 1 kHz, 2 kHz |
| Warranty | 1 year |
| Recommended Calibration Interval | 3 years |
| Size (H x W x D) | 185 mm x 100 mm x 55 mm |
| Weight | 0.4 kg |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -40°C to 70°C |
| Relative Humidity | 0% to 95% non-condensing |
