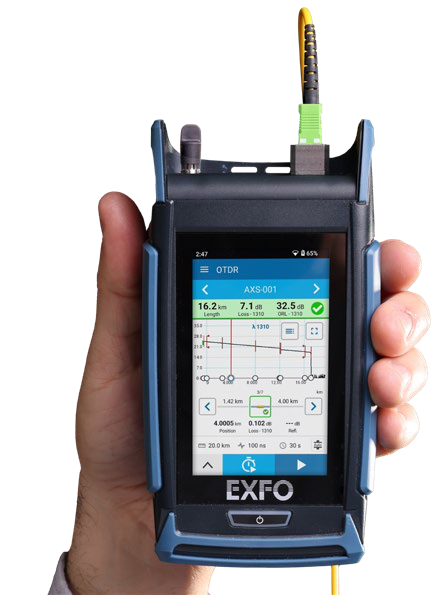

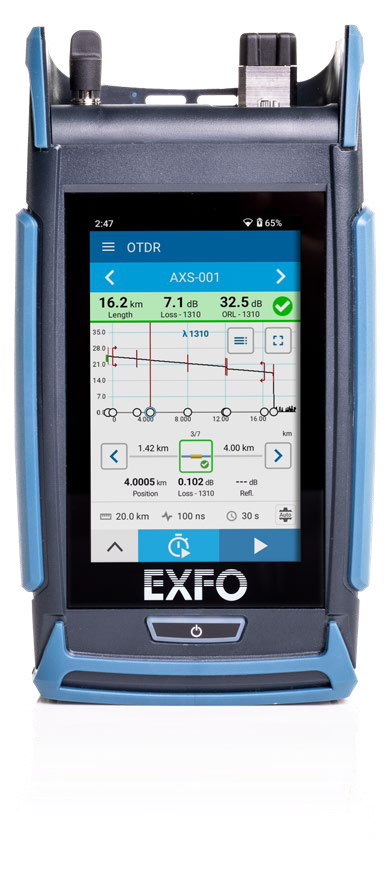

AXS-130 Compact OTDR
The AXS-130 Compact OTDR is optimized for FTTx fiber deployments and troubleshooting, suitable for metro applications. It delivers EXFO's renowned performance, reliability, and durability in a compact form factor.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Wavelength (nm) | 1310±20/1550±20/1650±15 |
| Live wavelength (nm) | 1650, isolation: 50dB from 1265nm to 1617nm |
| Dynamic range (dB) | 42/40/39 |
| Event Dead Zone (m) | 0.5 |
| Attenuation Dead Zone (m) | 2.5 |
| Distance range (km) | 0.65 to 200 |
| PON Dead Zone (m) | 30 |
| Pulse Width (ns) | 3 to 20000 |
| Linearity (dB/dB) | ±0.03 |
| Loss Resolution (dB) | 0.001 |
| Sampling Resolution (m) | 0.04 to 5 |
| Sampling Points | Up to 256000 |
| Distance Uncertainty (m) | (±0.75+0.0025×distance+sampling resolution) |
| Reflectance Accuracy (dB) | ±2 |
| Size (H×W×D) | 171mm×93mm×48mm |
| Weight (with battery) | 0.5kg |
| Display | 4in (101.6mm) touchscreen, 800×480 TFT, portrait and landscape view |

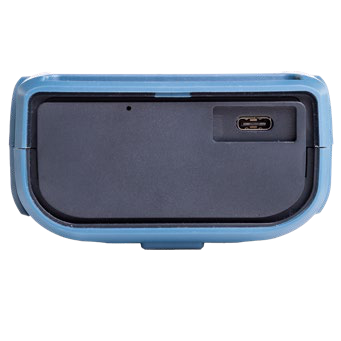

| Interfaces | One USB-C port |
| Storage | 1000 OTDR traces, typical |
| Connectivity | Bluetooth®, Wi-Fi and USB-C |
| Results Format | PDF report on the unit, .sor trace as per Telcordia (Bellcore), .trcx |
| Battery | Rechargeable lithium-polymer battery, USB-C charging port connector |
| Battery Autonomy | >10 hours of operation as per Telcordia (Bellcore) TR-NWT-001138 |
| Operating Temperature | -10°C to 45°C |
| Storage Temperature | -40°C to 70°C |
| Relative Humidity | <93% non-condensing |
| Data Management | FastReport |
| Data Management | EXFO Exchange |
| Adapters | Multiple changeable adapters to fit any optical connectors: SC, FC, LC, and more |
| Warranty (year) | 1 |
| Power Range (dBm) | -60 to 23 |
| Power Uncertainty (dB) | ±0.5 |
| Calibrated Wavelengths (nm) | 1310, 1490, 1550, 1625, 1650 |
| Selectable Wavelengths (nm) | 1310, 1490, 1550, 1577, 1625, 1650 |
| Tone Detection | CW, 270Hz, 330Hz, 1kHz, 2kHz, 1kHz+Blink, 2kHz+Blink |
| Output Power (dBm) | -3 |
| Modulation | CW, 270Hz, 330Hz, 1kHz, 2kHz, 1kHz+Blink, 2kHz+Blink |
