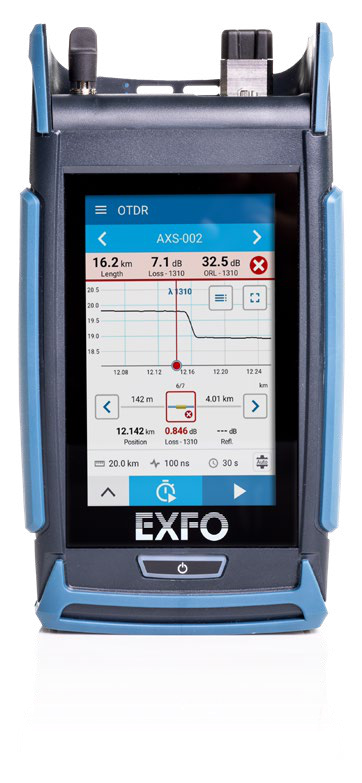

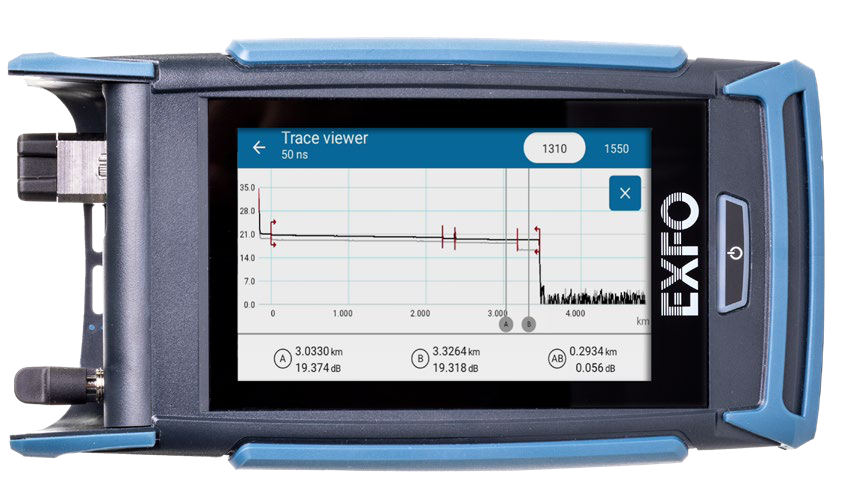

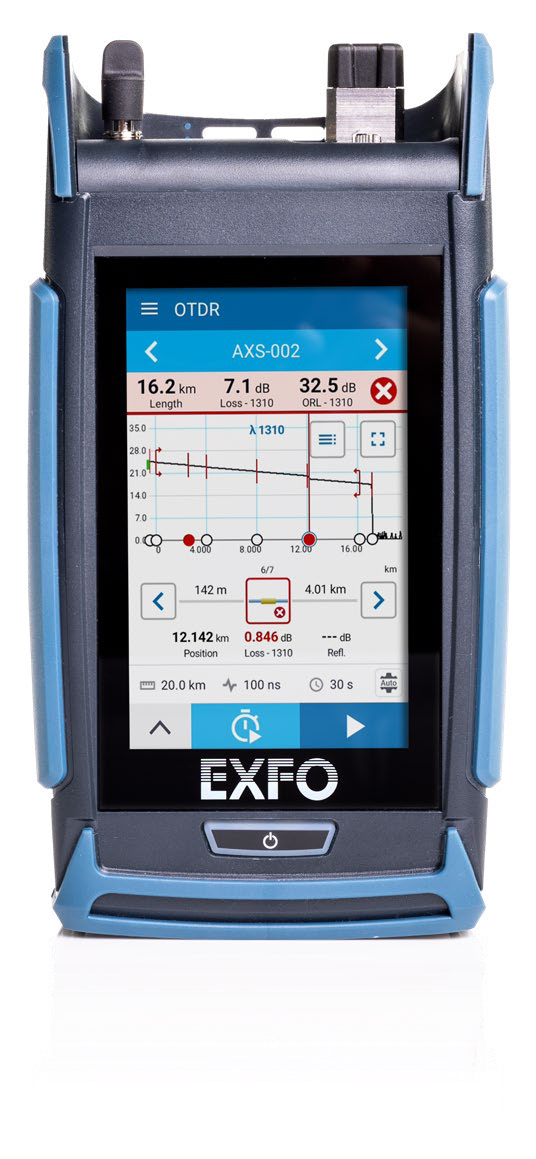

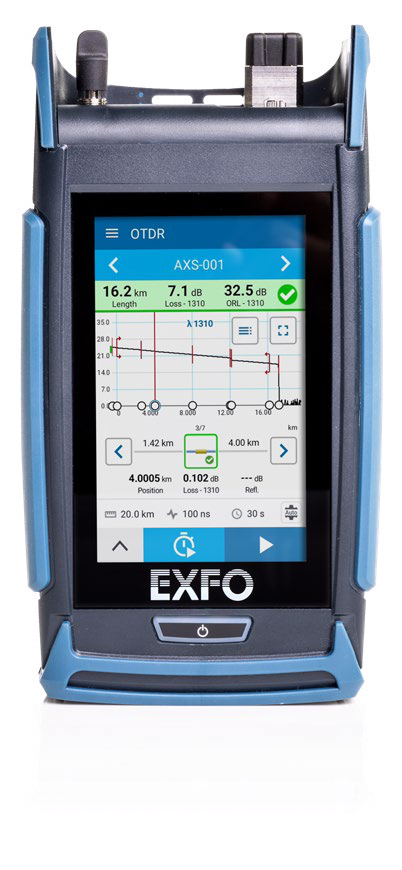

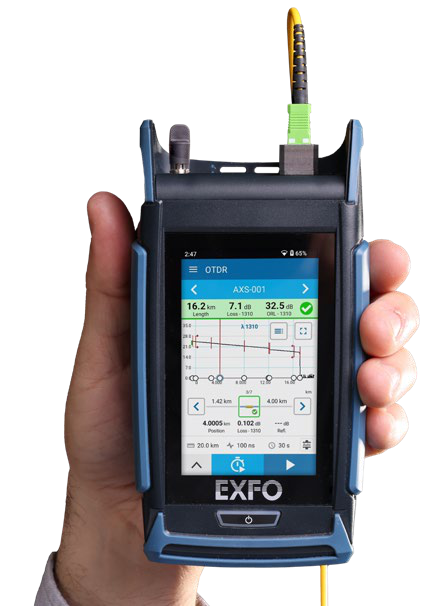

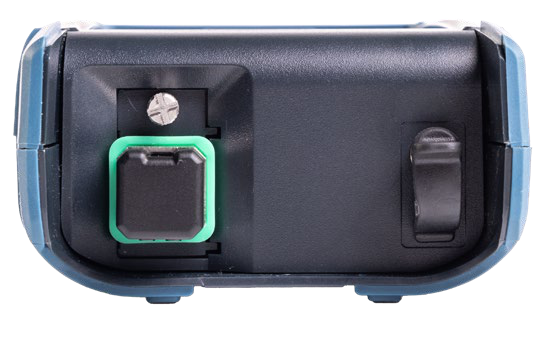

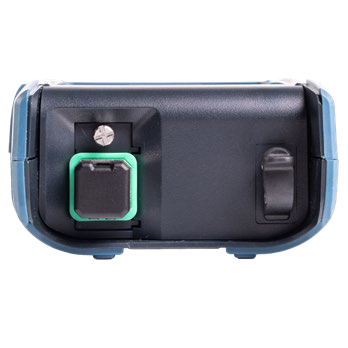

AXS-120 Compact OTDR

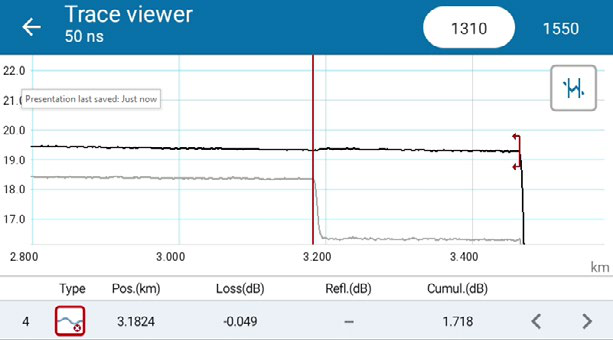

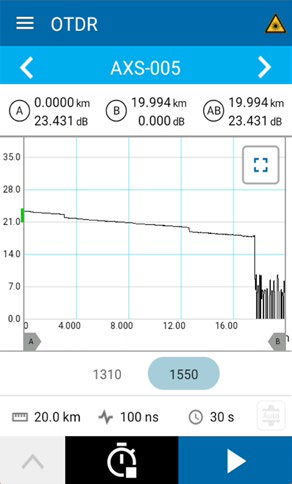

The AXS-120 Compact OTDR is a rugged and portable optical time-domain reflectometer designed for point-to-point links, access networks, and FTTx network installation and troubleshooting. It offers high visibility, dynamic range, and advanced features for efficient fiber optic testing.
Save to Favorites
Overview
Specifications

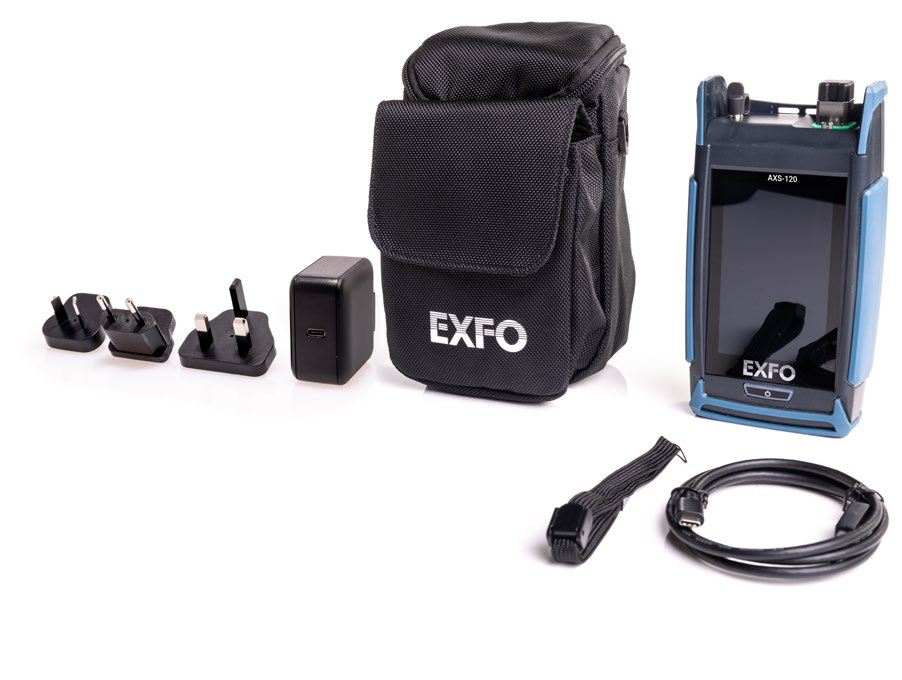

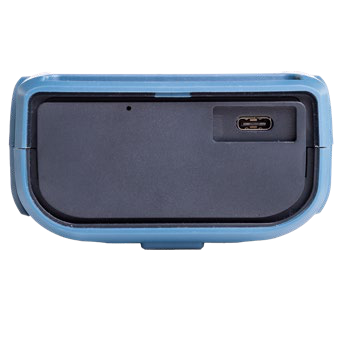

| Parameter | Value |
|---|---|
| Wavelength (nm) | 1310±30/1550±30 |
| Dynamic Range (dB) | 35/33 |
| Event Dead Zone (m) | 0.8 |
| Attenuation Dead Zone (m) | 3.5 |
| Distance range (km) | 0.65 to 200 |
| PON Dead Zone (m) | 35 |
| Pulse Width (ns) | 3 to 20000 |
| Linearity (dB/dB) | ±0.05 |
| Loss Resolution (dB) | 0.001 |
| Sampling Resolution (m) | 0.04 to 5 |
| Sampling Points | up to 256000 |
| Distance Uncertainty (m) | (±0.75+0.0025×distance+sampling resolution) |
| Reflectance Accuracy (dB) | ±2 |
| Size (H×W×D) | 171mm×93mm×48mm |
| Weight (with battery) | 0.5kg |
| Display | 4in (101.6mm) touchscreen, 800×480 TFT, portrait and landscape view |
| Storage | 10000 OTDR traces, typical |
| Connectivity | Bluetooth, Wi-Fi, USB-C |
| Results Format | PDF report on the unit, .sor trace as per Telcordia (Bellcore), .trcx |
| Battery | Rechargeable lithium-polymer battery, USB-C charging port connector |
| Battery Autonomy | >10 hours of operation as per Telcordia (Bellcore) TR-NWT-001138 |
| Operating Temperature | -10°C to 45°C |
| Storage Temperature | -40°C to 70°C |
| Relative Humidity | <93% non-condensing |
| Data Management | FastReporter 3, EXFO Exchange |
| Warranty (year) | 1 |
| Power Range (dBm) | -60 to 23 |
| Power Uncertainty (dB) | ±0.5 |
| Calibrated Wavelengths (nm) | 1310,1490,1550,1625,1650 |
| Selectable Wavelengths (nm) | 1310,1490,1550,1577,1625,1650 |
| Tone Detection | CW, 270Hz, 330Hz, 1kHz, 2kHz, 1kHz+Blink, 2kHz+Blink |
| Output Power (dBm) | -7 |
| Modulation | CW, 270Hz, 330Hz, 1kHz, 2kHz, 1kHz+Blink, 2kHz+Blink |
| Laser | 650nm±10nm |
| Laser Safety Class | Class 2 |
