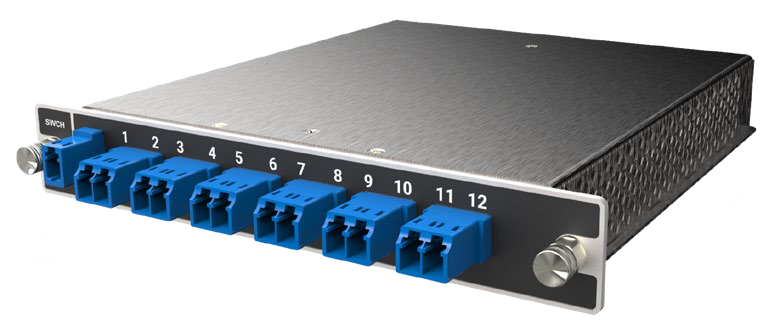

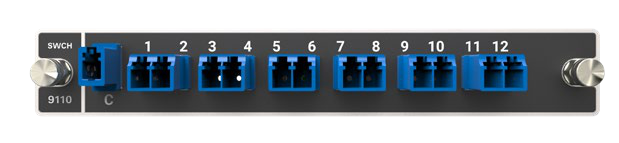

FTBx-9110 MEMS Optical Switch
The FTBx-9110 MEMS Optical Switch is a high-performance device designed for precise and repeatable fiber-to-fiber switching. It features a compact MEMS-based design, fast switching time, and a long lifespan, making it ideal for demanding manufacturing and testing applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Insertion Loss (dB) 1x2 | 0.9 |
| Insertion Loss (dB) 1x4 | 0.9 |
| Insertion Loss (dB) 1x8 | 1.2 |
| Insertion Loss (dB) 1x12 | 1.6 |
| Operating Wavelength (nm) | 1240-1680 |
| Repeatability (dB) | ±0.02 |
| Backreflection (dB) | ≤-50 |
| Crosstalk (dB) | 50 (60) |
| Polarization-Dependent Loss (dB) | ≤0.15 |
| Switching Time (ms) | <30 |
| Fiber Type | Singlemode 9/125 μm |
| Input Power (Damage Threshold) (dBm) | 27 |
| Number of Slots | 1 |
| Size (HxWxD) | 25mmx159mmx185mm |
| Switch Life | 1 billion cycles minimum |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -40°C to 70°C |
| Maximum Relative Humidity | 80% non-condensing at 40°C |
| Instrument Drivers | IVI drivers |
| Instrument Drivers | SCPI commands and REST API |

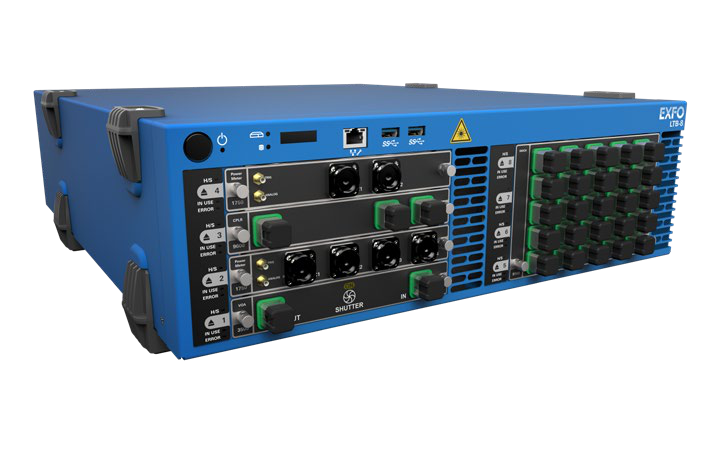

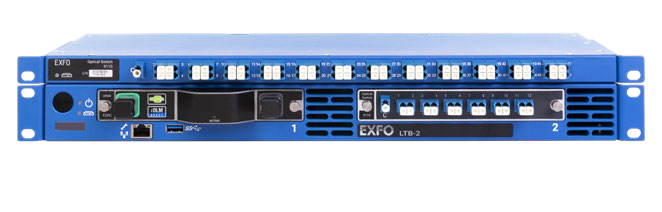

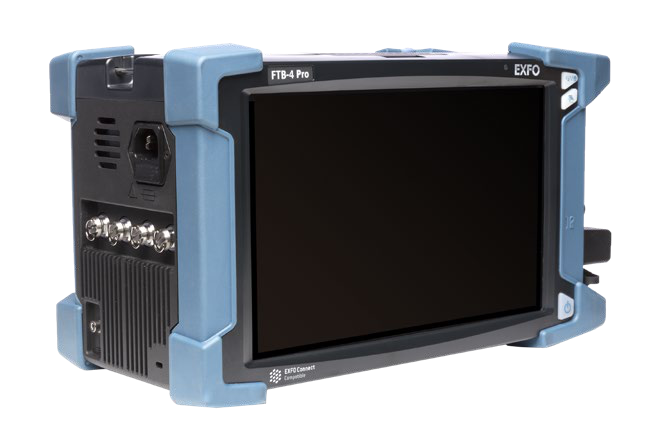

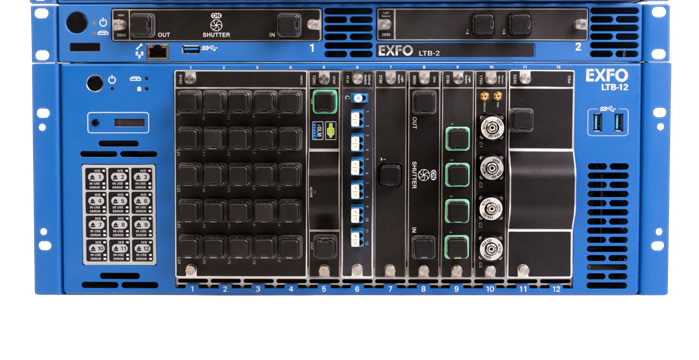

| Remote Control | Via LTB and FTB platform services: GPIB (IEEE-488.1, IEEE-488.2), Ethernet and RS-232 |
| Standard Accessories | User guide and test report |
