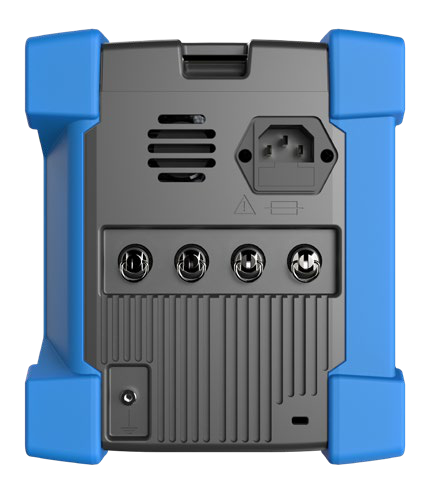

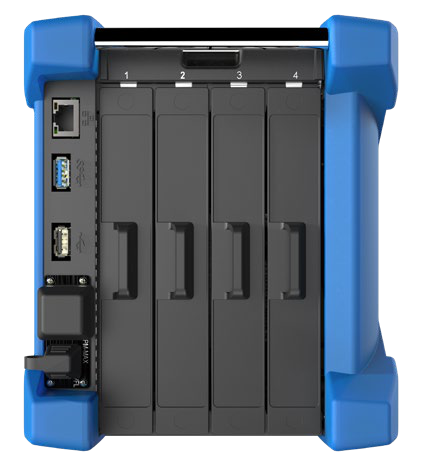

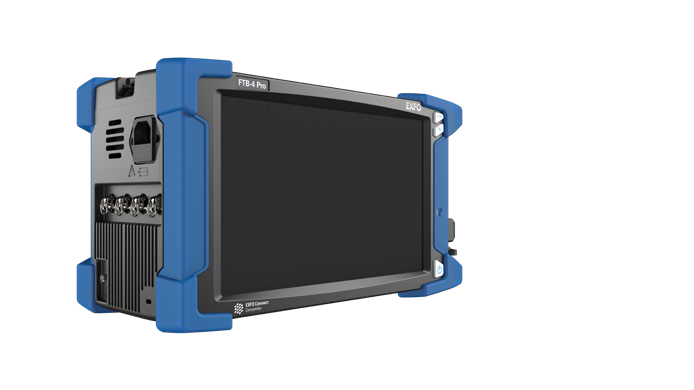

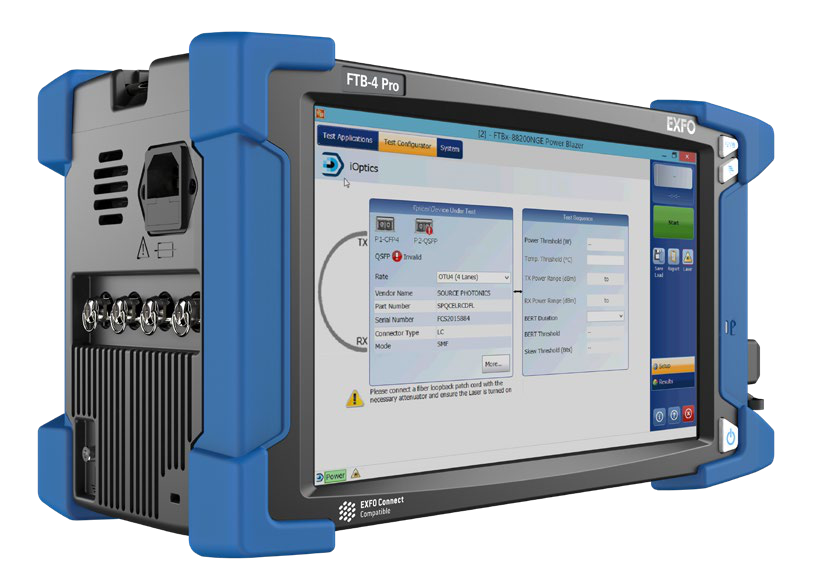

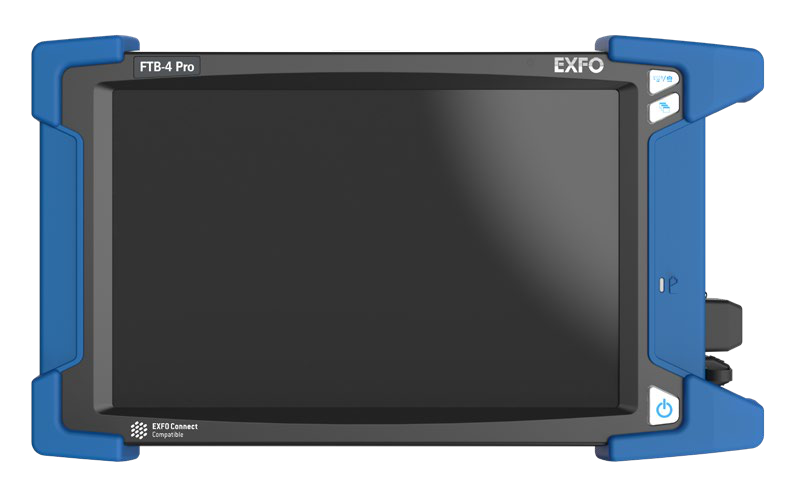

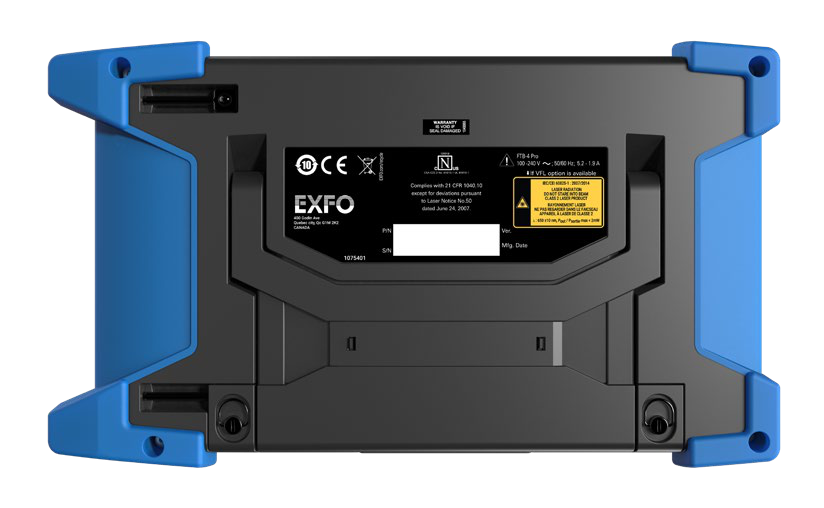

FTB-4 Pro platform
The FTB-4 Pro platform is a versatile multitasking portable test platform designed for high-speed and multiservice network testing. It offers advanced capabilities for optical and transport testing, making it ideal for field technicians.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Mainframe | Quad-core processor/4GB RAM/Windows 10 |
| Display | Touchscreen, color, 1280×800 TFT 256mm (10.1in) |

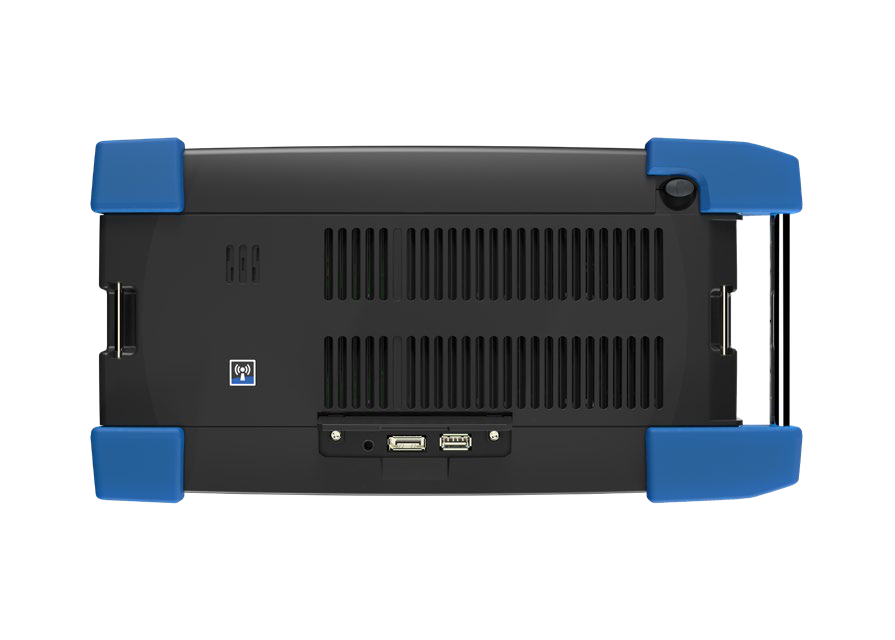

| Interfaces | RJ45 LAN 10/100/1000Mbit/s, USB2.0 ports (2), USB3.0 port (1), Display port, 3.5mm headset/microphone port |
| Storage (internal flash memory) | 128GB |
| Battery (not included) | Two rechargeable Li-ion smart batteries (optional) |
| Power Supply | AC input: 100–240V; 50/60Hz; 5.2–1.9A |
| Size (H×W×D) | 199mm×333mm×170mm (7 7/8in×13 1/8in×6 11/16in) |
| Weight | 4.6kg (10lb) |
| Temperature | Operating: 0°C to 40°C (32°F to 104°F); Storage: -20°C to 60°C (-4°F to 140°F) |
| Built-in Power Meter Specifications | Calibrated wavelengths (nm): 850, 1300, 1310, 1490, 1550, 1625, 1650; Power range (dBm): 27 to -50; Uncertainty (%): ±5% ±10nW; Display resolution (dB): 0.01 max to -40dBm, 0.1 -40dBm to -50dBm |
| Visual Fault Locator (VFL) | Laser, 650nm ±10nm; CW/Modulate: 1Hz; Typical power in 62.5/125µm: >=-1.5dBm (0.7mW); Laser safety class: Class 2 |
