FTB-1v2 Pro Platform
The FTB-1v2 Pro Platform is a portable system designed for fast and powerful optical, Ethernet, time-division multiplexing (TDM), and multiservice applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Mainframe | Quad-core processor/8GB RAM |
| Operating System | Windows 10 IoT Enterprise LTSC 2021 |
| Display | Touchscreen, color, 1280×800 TFT 203mm (8in) |

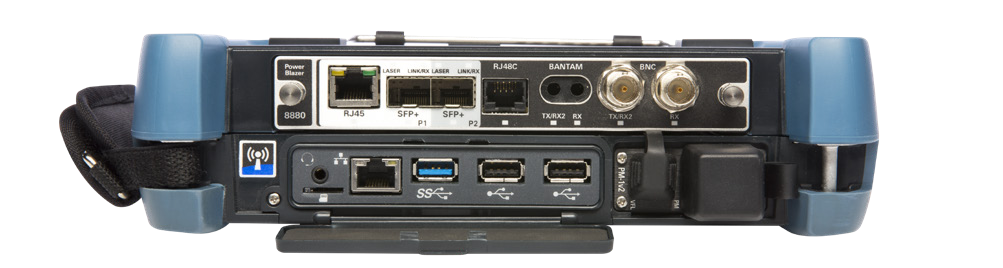

| Interfaces | RJ45 LAN 10/100/1000Mbit/s, USB2.0 ports (2), USB3.0 port (1), MicroSD card slot, 3.5mm headset/microphone port |
| Storage | 128GB internal flash memory |
| Battery | Rechargeable Li-ion smart battery (two batteries with high-power dual carrier) |
| Power Supply | AC/DC adapter, input: 100–240V, 50/60Hz; 2.5A max, output: 24V; 3.75A (with high-power dual carrier: 5.0A max, output: 24V; 13.75A) |
| Size (H×W×D) | 210mm×254mm×66mm (single carrier), 210mm×254mm×122mm (high-power dual carrier) |
| Weight | 1.5kg (single carrier), 2.4kg (dual carrier), 3.2kg (high-power dual carrier) |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 70°C |
| Relative Humidity | 0% to 95% non-condensing |
| Built-in Power Meter Specifications | Calibrated wavelengths: 850, 1300, 1310, 1490, 1550, 1577, 1625, 1650; Power range: Typical 27 to -50dBm; Uncertainty: ±5% ±10nW; Display resolution: 0.01 to -40dBm |
| Visual Fault Locator (VFL) | Laser, 650nm±10nm; CW/Modulate 1Hz; Typical power: ≤1.5dBm (0.7mW); Laser safety: Class 2 |
