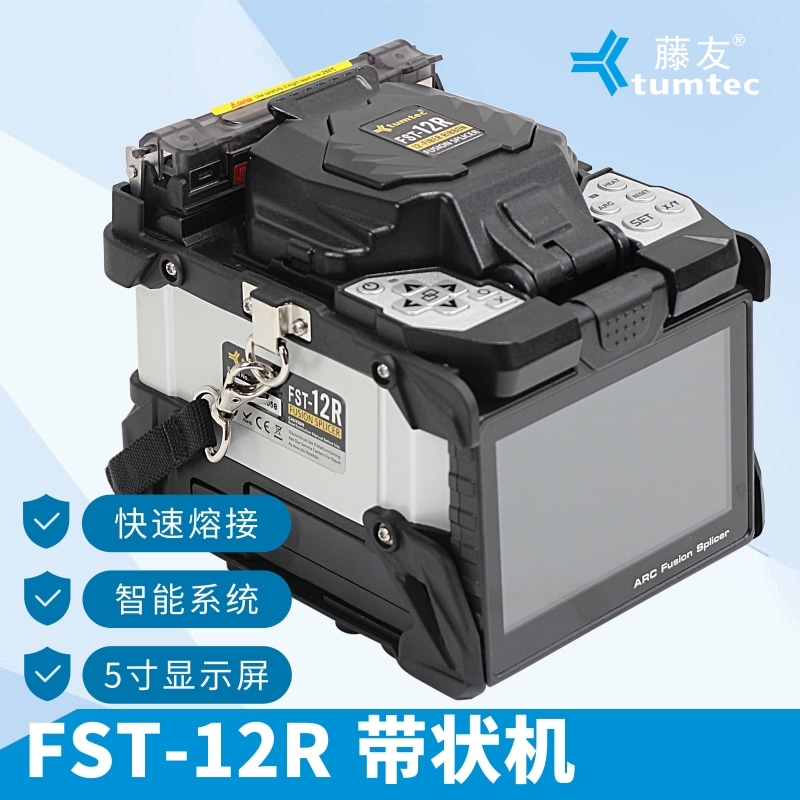

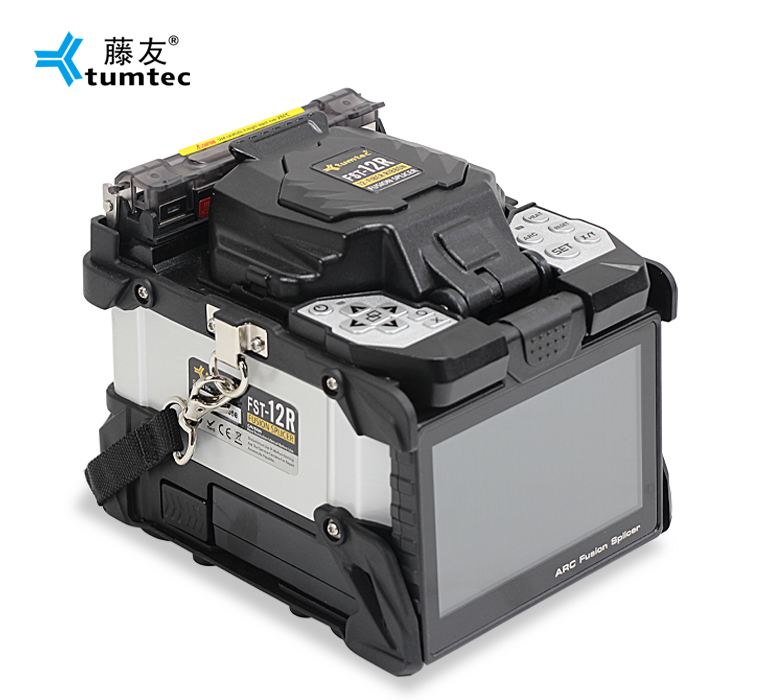

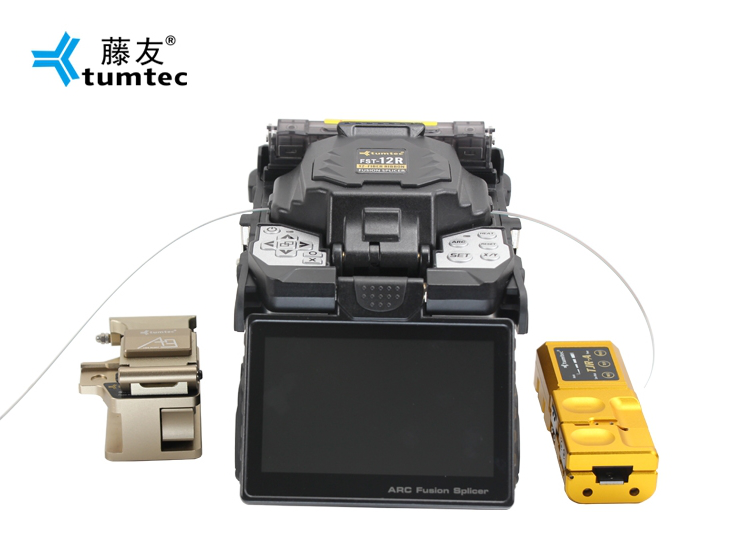

FST-12R Ribbon Fiber Fusion Splicer
The FST-12R Ribbon Fiber Fusion Splicer is a high-performance device designed for efficient and precise fiber optic splicing. It features a 5-inch display, intelligent system, and fast splicing capabilities, making it ideal for various optical communication applications.
Save to Favorites
Overview

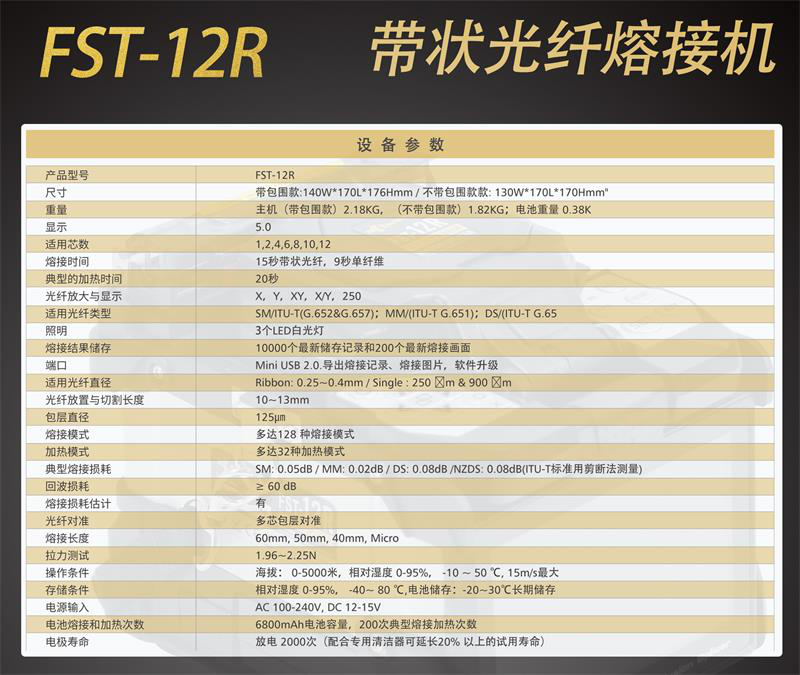

Specifications
| Parameter | Value |
|---|---|
| Dimensions | 带包装:140W×170L×176Hmm/不带包装:130W×170L×170Hmm |
| Weight | 主机(带包装):2.18KG/不带包装:1.82KG/电池重量:0.38KG |
| Display | 5.0 |
| Applicable Fiber Count | 1,2,4,6,8,10,12 |
| Splicing Time | 15秒multiple芯光纤,9秒单纤维 |
| Typical Heating Time | 15秒 |
| Fiber Magnification and Display | X,Y,XY,250 |
| Fiber Type | SM(TU-TG.652&2,657),MM(ITU-TG.651),DS(ITU-TG.65),NZDS(ITU-TG.65) |
| Illumination | 3 complete plansLED白光灯 |
| Splicing Record Storage | 10000 complete plans熔接记录 and 200 complete plans熔接结果图像 |
| Applicable Fiber Diameter | Mini USB2.0导出熔接记录,兼容电脑,软 Items升级 |
| Fiber Coating and Cutting Length | 涂层:0.25-0.4mm/单芯:250um&900um |
| Fiber Clamping Diameter | 10-13mm |
| Fiber Spacing | 125um |
| Fiber Alignment Method | PAS图像处理模式 |
| Fiber Splicing Loss | SM:≤0.05dB/MM:≤0.02dB/DS:≤0.08dB/NZDS:≤0.08dB(ITU-T标准用断折法测量) |
| Fiber Tensile Test | ≥60dB |
| Cutter | 50mm,50mm,40mm,Micro |
| Tensile Test | 2N-25N |
| Working Environment | 海拔:0-5000米,相对湿度:0-95%,-10~50°C,15m/s风速 |
| Battery Capacity | 6800mAh电池,200次熔接加热 |
| Battery Charging Cycles | 电池充电次数超过2000次,延长电池寿命200%以上的使用寿命 |
| Power Adapter | AC100V-240V,DC12-15V |
