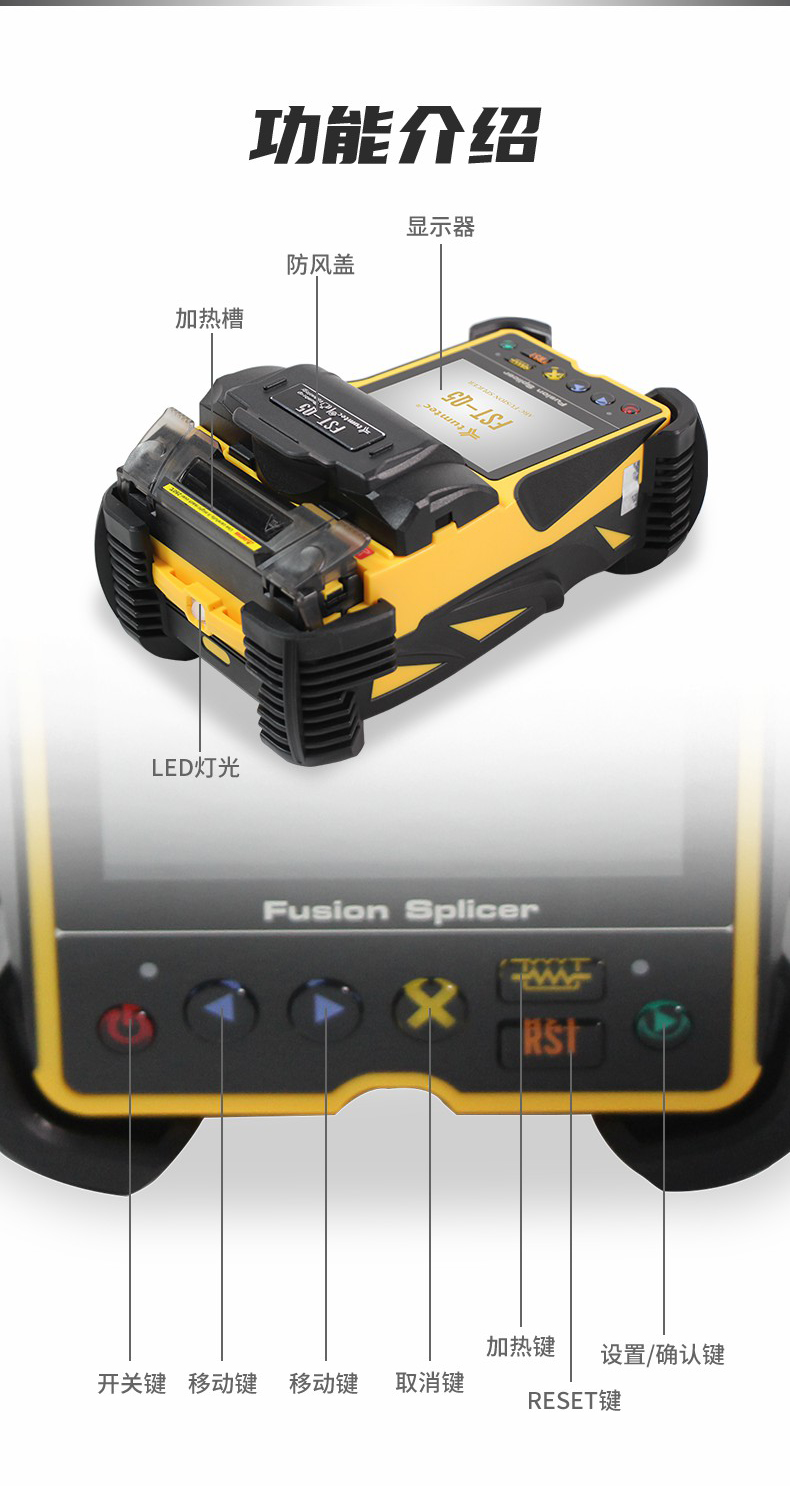

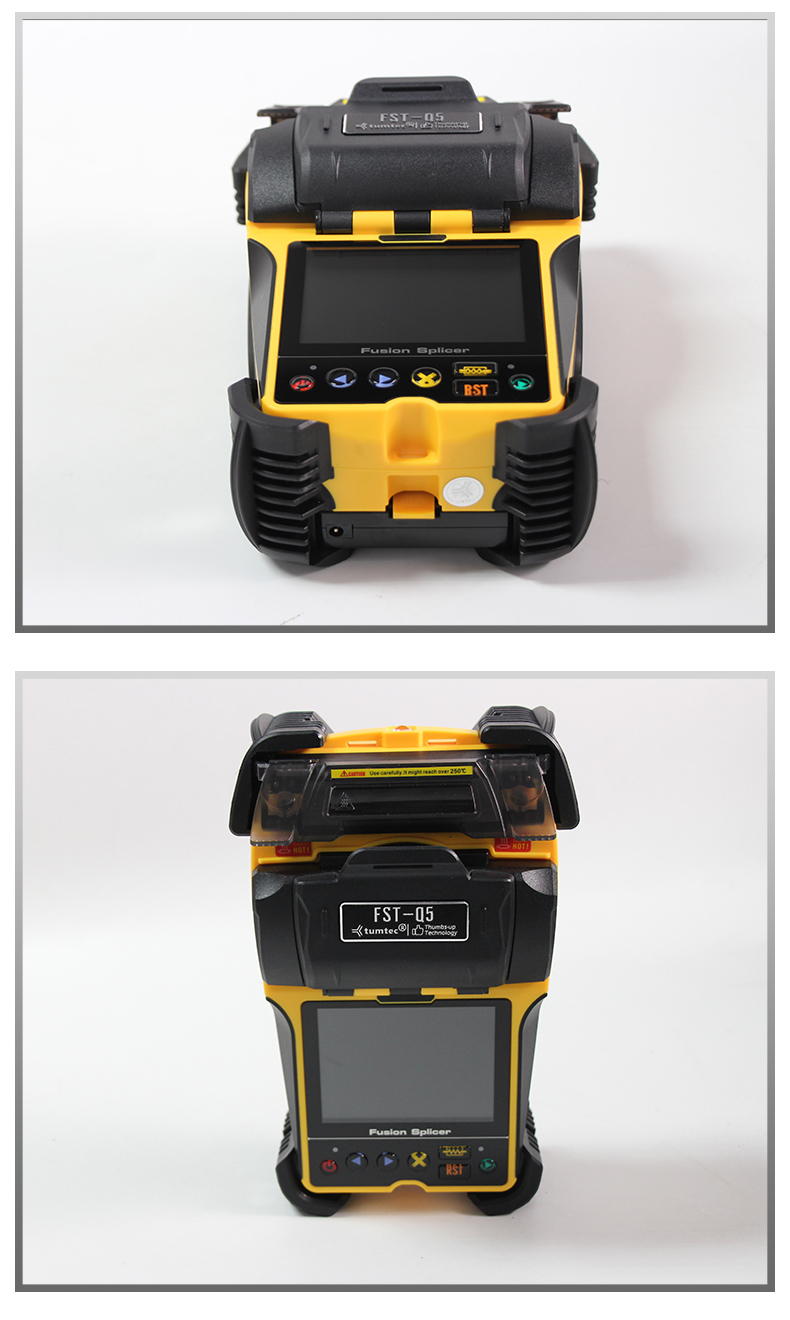

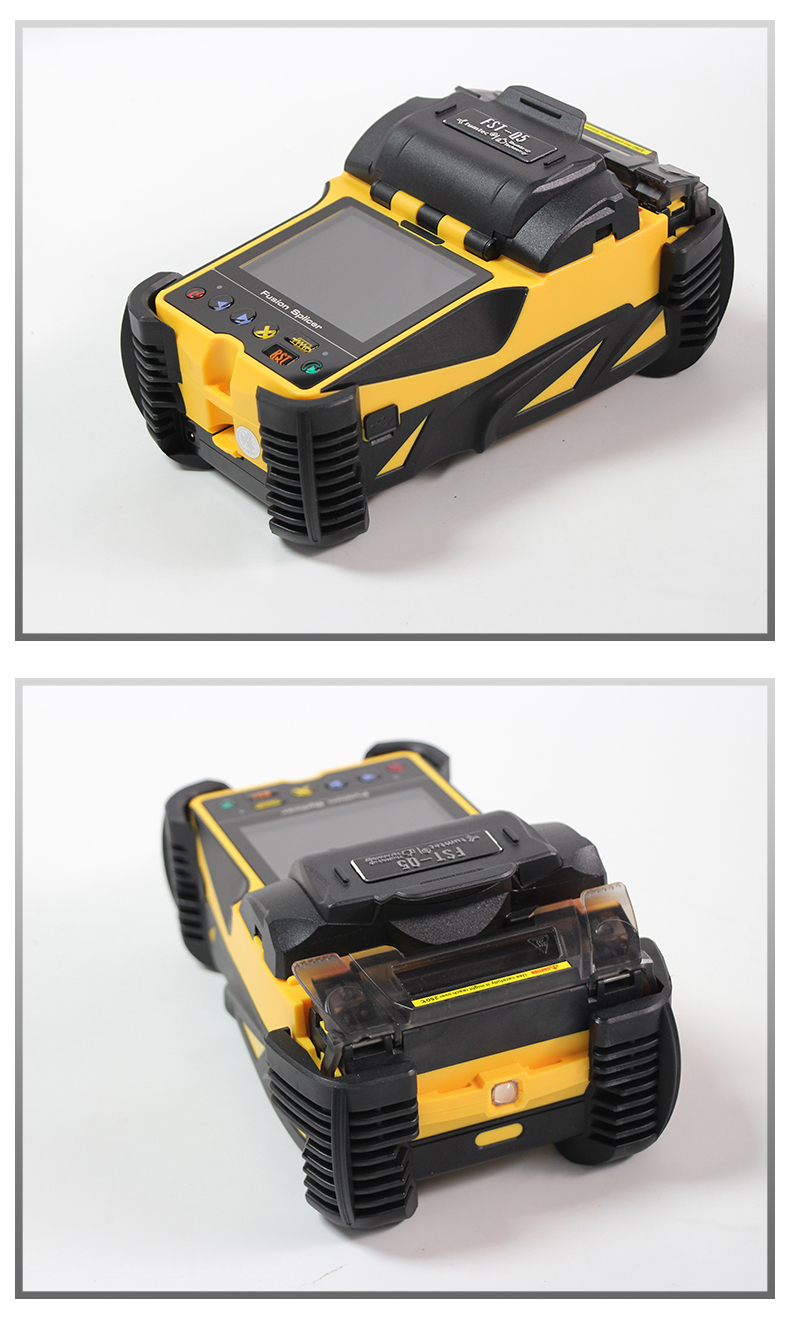

FST-Q5 Optical Fiber Fusion Splicer

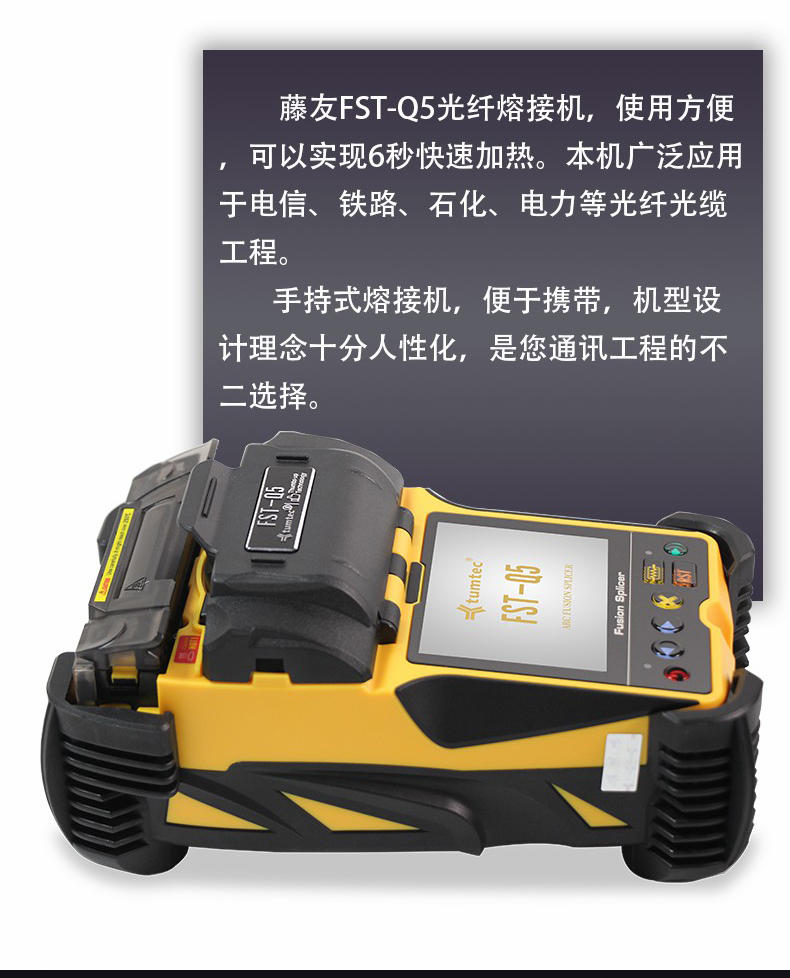

The Tumtec FST-Q5 Optical Fiber Fusion Splicer is a portable and user-friendly device designed for efficient fiber optic splicing. It features a compact design, AI intelligent system, and high-altitude working platform, making it suitable for various applications.
Save to Favorites
Overview

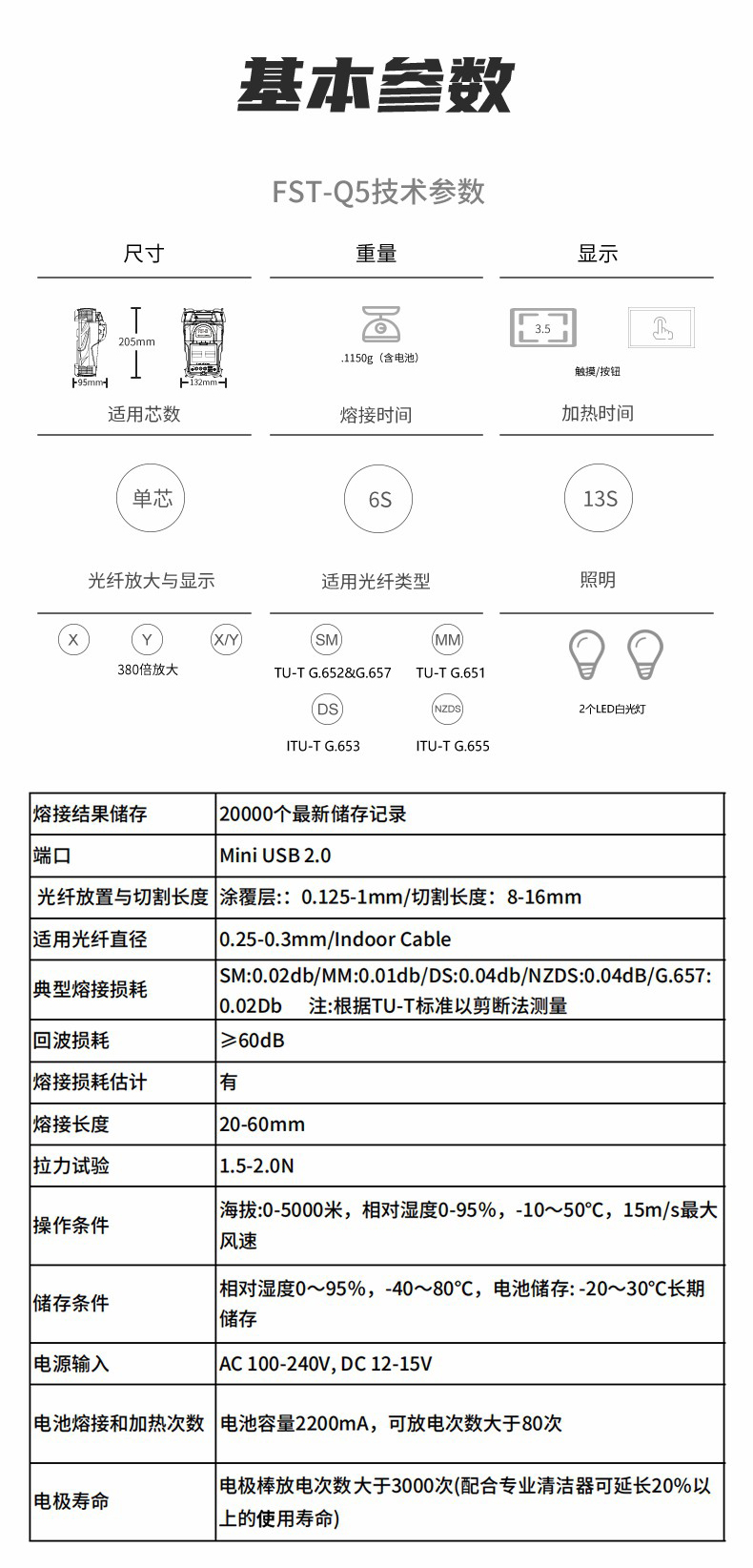

Specifications
| Parameter | Value |
|---|---|

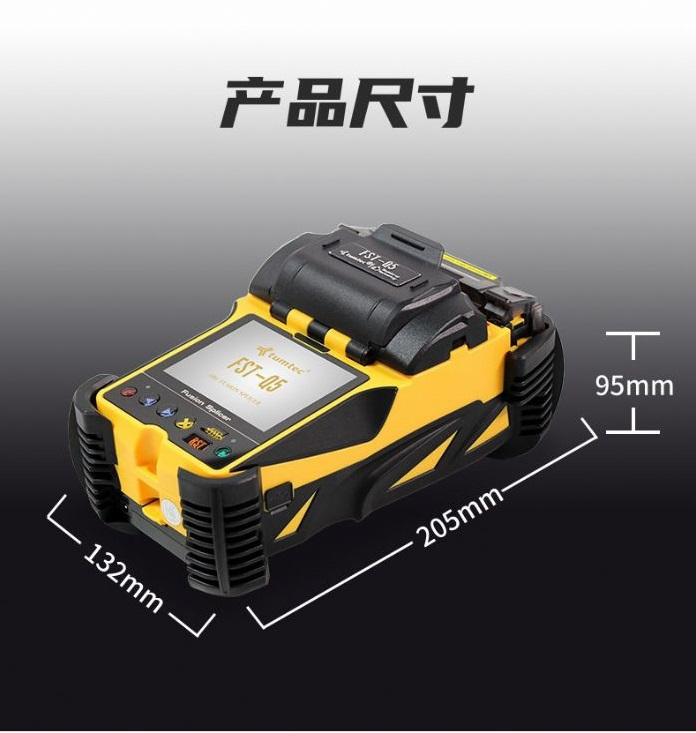

| Dimensions | 205mm×132mm×95mm |
| Weight | 1150g |
| Display | 3.5-inch touch/button |
| Applicable Fiber Count | Single core |
| Fiber Magnification and Display | 380x |
| Applicable Fiber Type | SM (ITU-T G.652&G.657), MM (ITU-T G.651), DS (ITU-T G.653), NZDS (ITU-T G.655) |
| Fiber Placement and Cutting Length | Coating: 0.125-1mm / Cutting Length: 8-16mm |
| Applicable Fiber Diameter | 0.25-0.3mm / Indoor Cable |
| Typical Splicing Loss | SM: ≤0.02dB / MM: ≤0.01dB / DS: ≤0.04dB / NZDS: ≤0.04dB / G.657: ≤0.02dB |
| Return Loss | ≥60dB |
| Splicing Loss Estimation | Available |
| Splicing Length | 20-60mm |
| Tensile Test | 1.5-2.0N |
| Operating Conditions | Altitude: 0-5000m, Relative Humidity: 0-95%, Temperature: -10~50°C, Max Wind Speed: 15m/s |
| Storage Conditions | Relative Humidity: 0-95%, Temperature: -40~80°C, Battery Storage: -20~30°C long-term storage |
| Power Input | AC 100-240V, DC 12-15V |
| Battery Splicing and Heating Cycles | Battery Capacity: 2200mA, Discharge Cycles: >80 times |
| Electrode Life | Electrode Discharge Cycles: >3000 times (with professional cleaning device, can extend life by 20%) |
| Splicing Time | 6s |
| Heating Time | 13s |
| Lighting | 2 LED lights |
