FST-83A
The Tumtec FST-83A is a high-performance ARC fusion splicer designed for precise fiber optic splicing. It features advanced technology for efficient and reliable splicing, making it ideal for various fiber optic applications.
Save to Favorites
Overview
Specifications

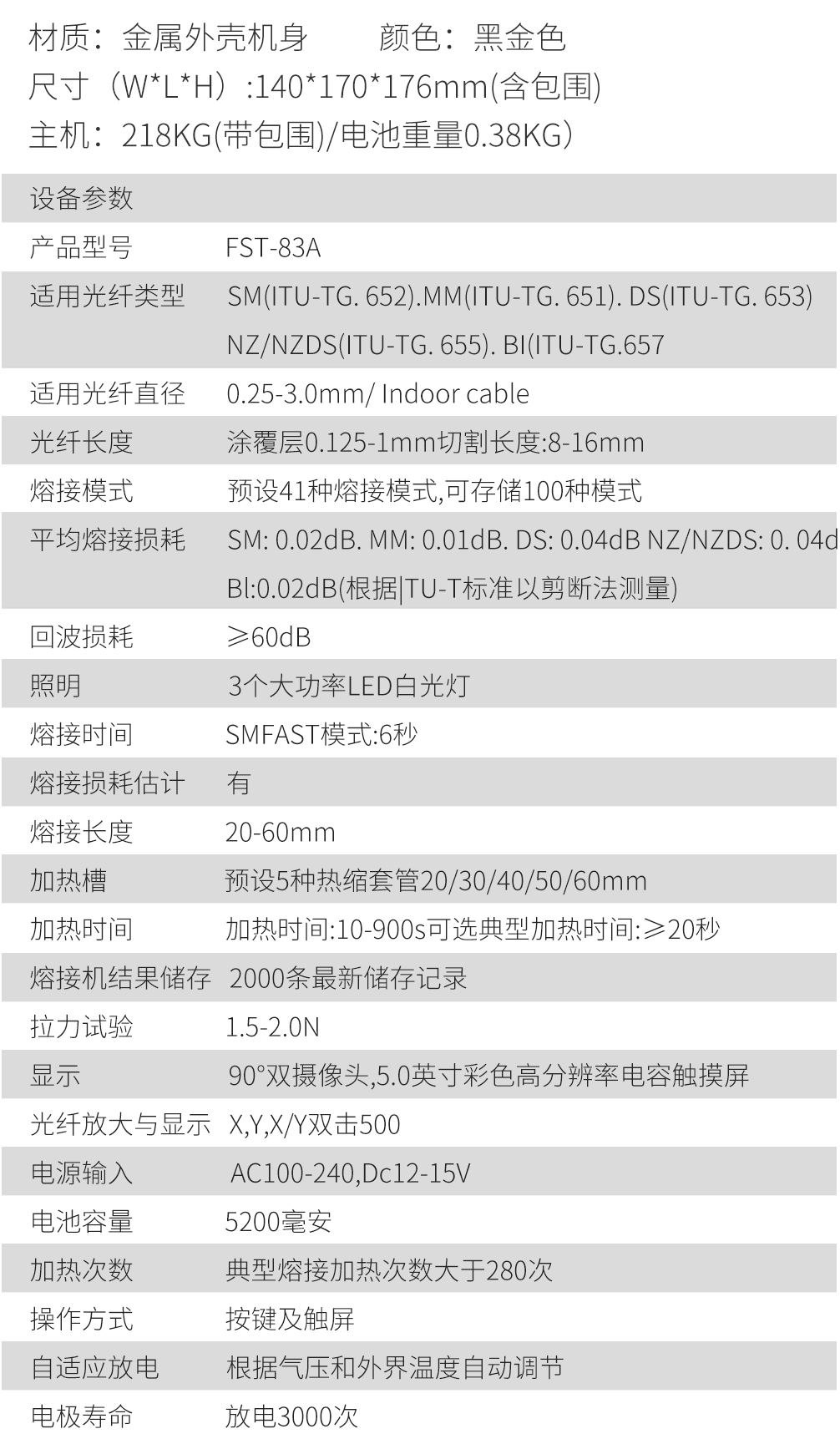

| Parameter | Value |
|---|---|
| Material | 金属外壳机身 |
| Color | 黑金色 |
| Dimensions (W*L*H) | 140*170*176mm (含包围) |
| Main Unit Weight | 218KG (带包围)/电池重量0.38KG |
| Applicable Fiber Type | SM(ITU-TG.652), MM(ITU-TG.651), DS(ITU-TG.653), NZ/NZDS(ITU-TG.655), BI(ITU-TG.657) |
| Applicable Fiber Diameter | 0.25-3.0mm/Indoor cable |
| Fiber Length | 涂覆层0.125-1mm切割长度:8-16mm |
| Splicing Mode | 预设41种熔接模式,可存储100种模式 |
| Average Splicing Loss | SM:0.02dB, MM:0.01dB, DS:0.04dB, NZ/NZDS:0.04dB, BI:0.02dB (根据ITU-T标准以剪断法测量) |
| Return Loss | ≥60dB |

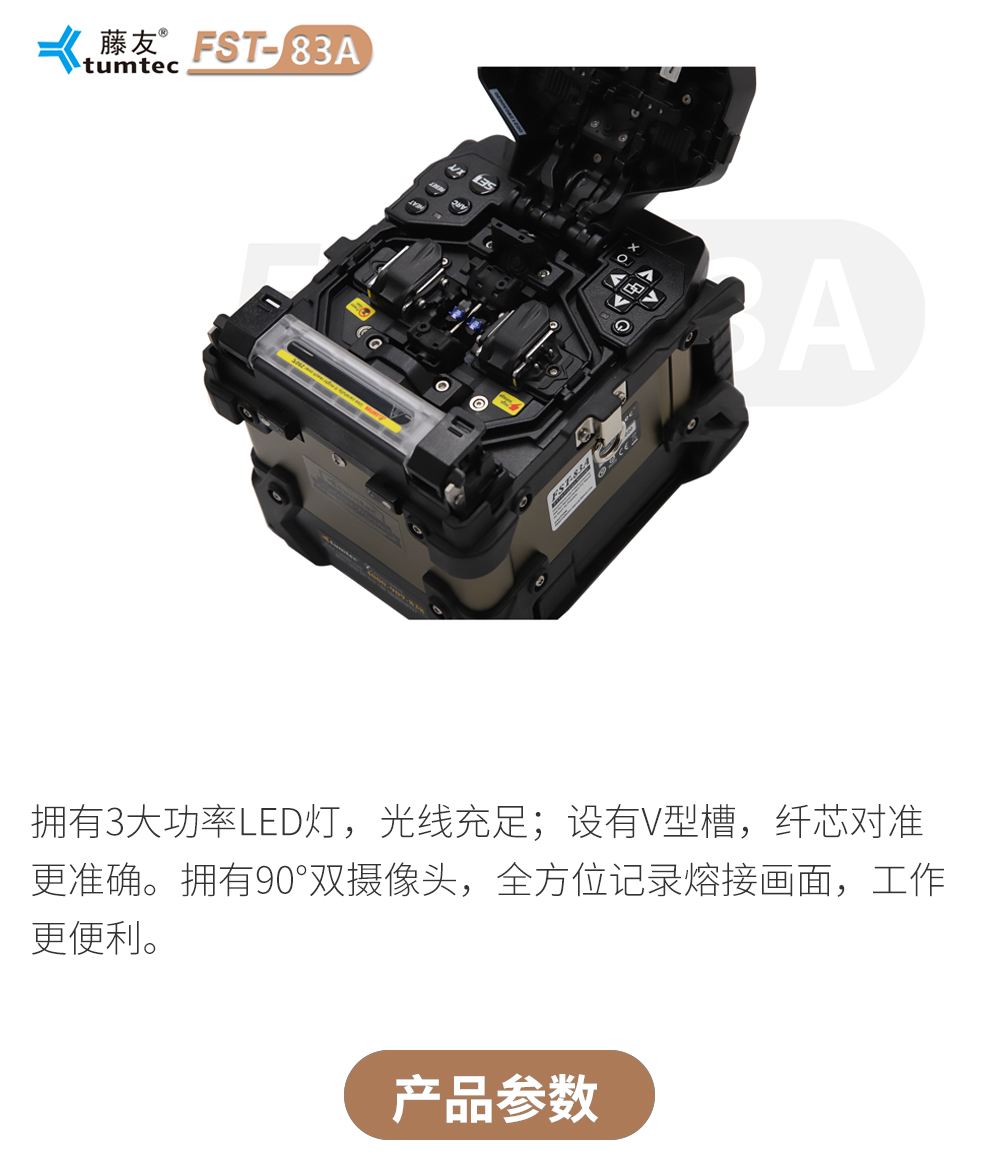

| Illumination | 3 complete plans大功率LED白光灯 |
| Splicing Time | SMFAST模式:6秒 |
| Splicing Loss Estimation | 有 |
| Splicing Length | 20-60mm |
| Heating Slot | 预设5种热缩套管20/30/40/50/60mm |
| Heating Time | 10-90秒可选典型加热时间:≥20秒 |
| Splicing Result Storage | 2000条最新存储记录 |
| Tensile Test | 1.5-2.0N |

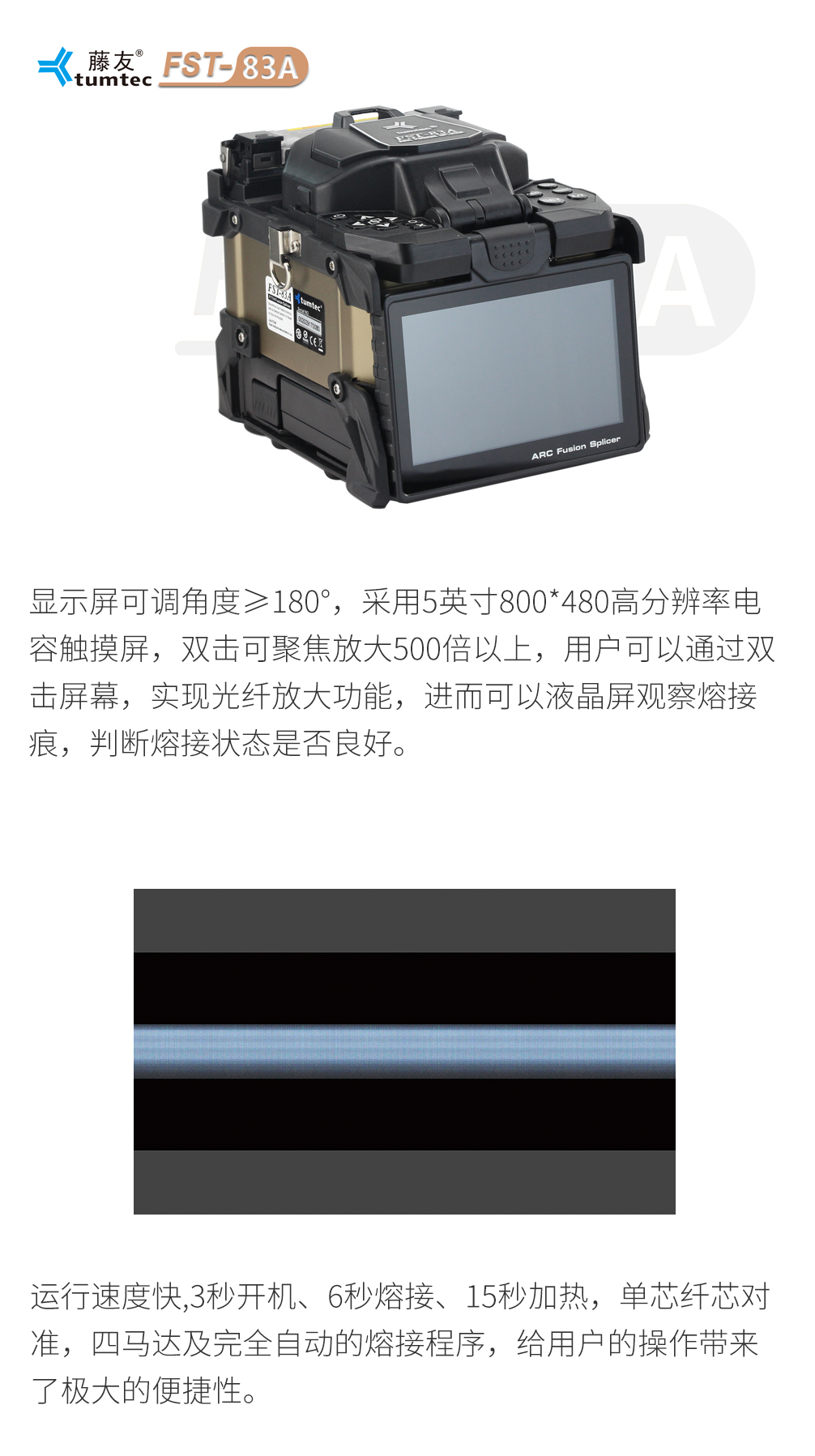

| Display | 90°双摄像头,5.0英寸彩色高分辨率电容触摸屏 |
| Fiber Magnification and Display | X,Y,X/Y双击500 |
| Power Input | AC100-240,DC12-15V |
| Battery Capacity | 5200毫安 |
| Heating Times | 典型熔接加热次数大于280次 |
| Operation Mode | 按键及触屏 |
| Automatic Heating Adjustment | 根据气压 and 外界温度自动调节 |
| Electrode Life | 放电3000次 |

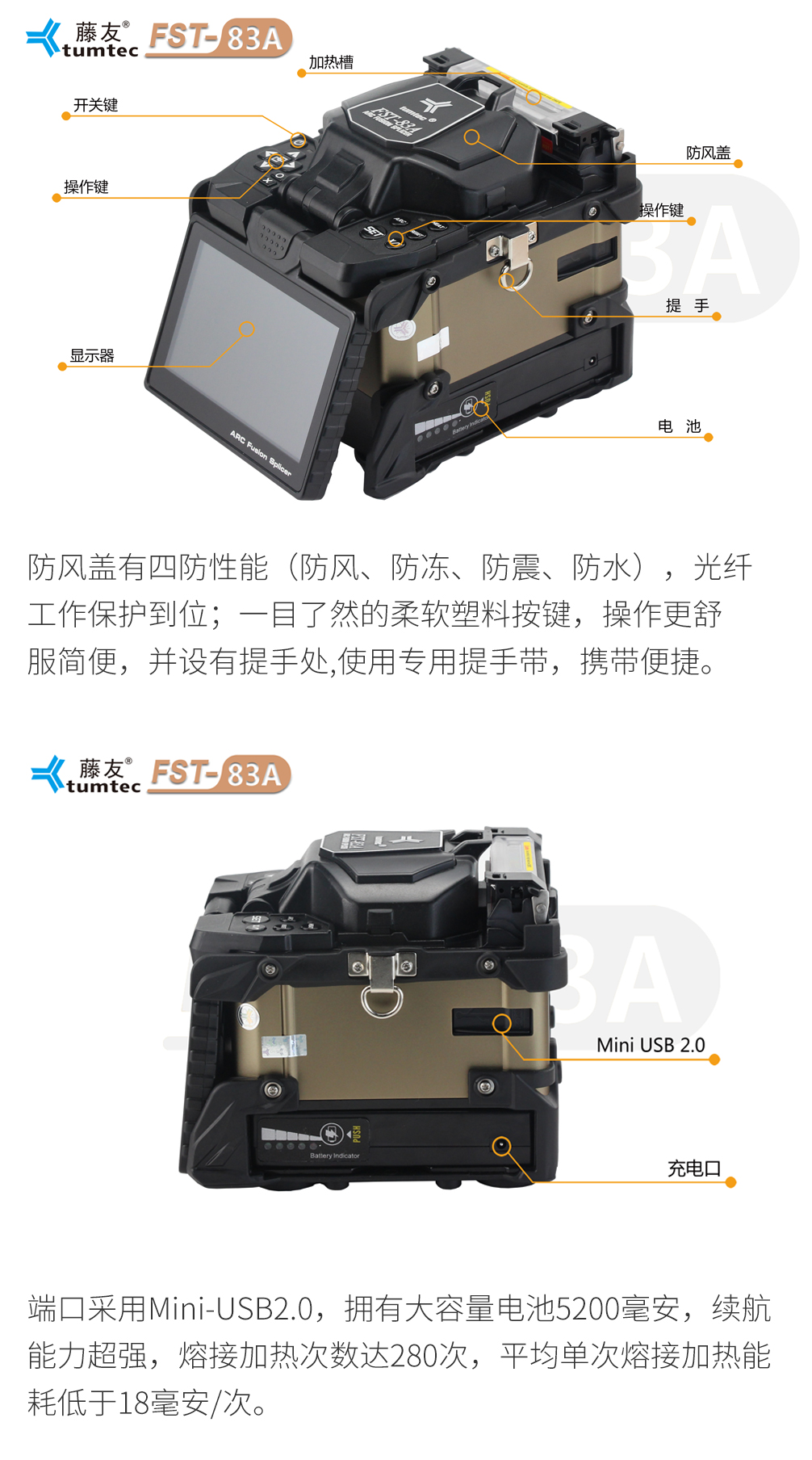

| Port | Mini USB 2.0 |

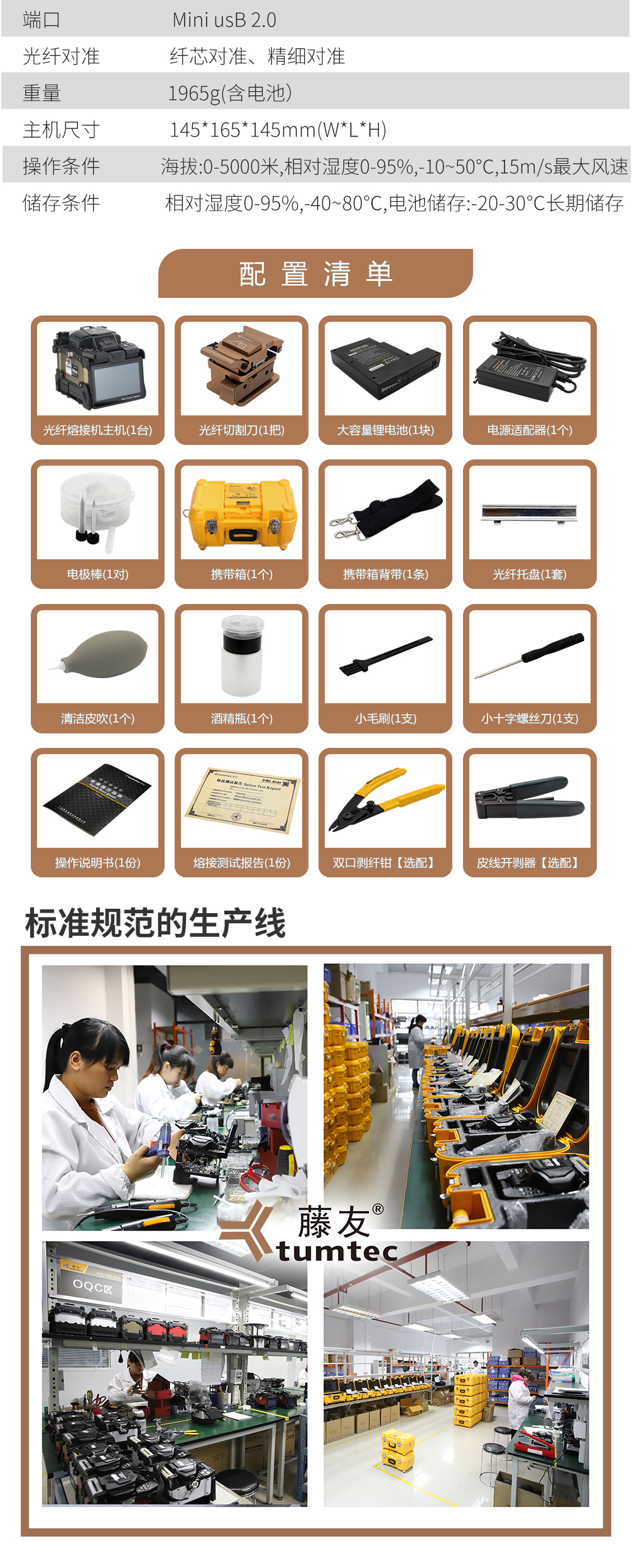

| Fiber Alignment | 纤芯对准,精细对准 |
| Weight | 1965g (含电池) |
| Main Unit Dimensions | 145*165*145mm (W*L*H) |
| Operating Conditions | 海拔:0-5000米,相对湿度0-95%,-10~50°C,15m/s最大风速 |
| Storage Conditions | 相对湿度0-95%,-40~80°C,电池储存:-20~30°C长期储存 |
