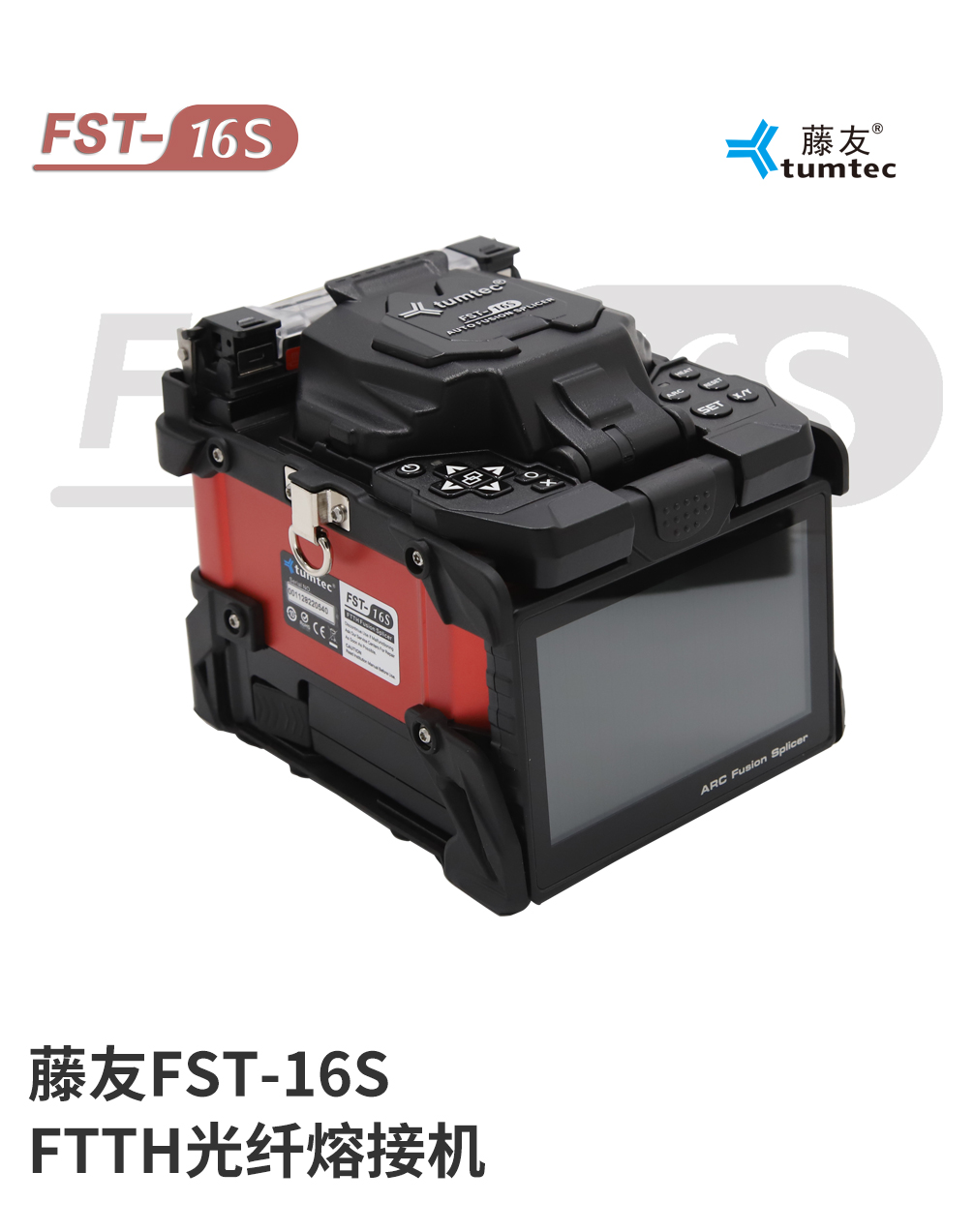

FST-16S FTTH Fusion Splicer

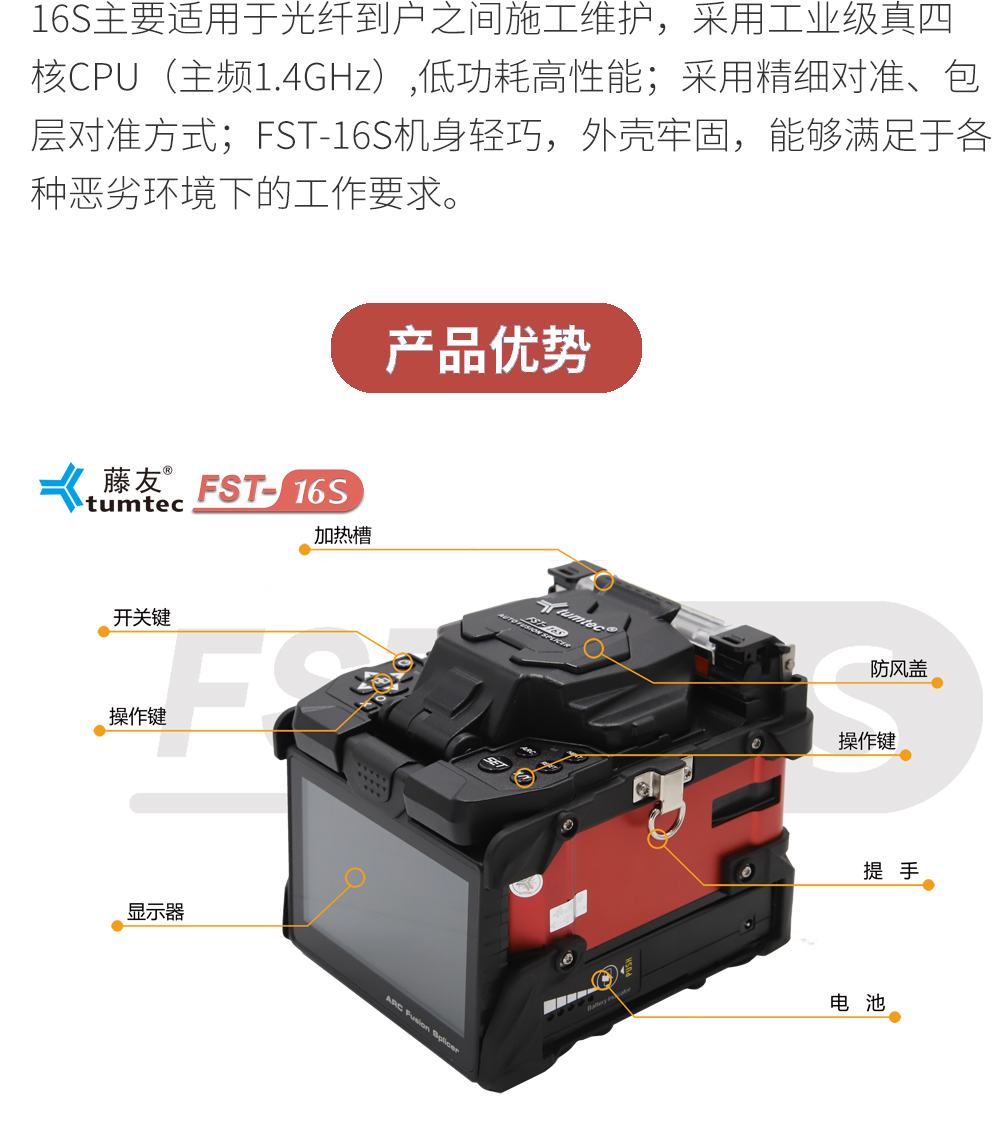

The FST-16S is a compact and lightweight fusion splicer designed for fiber optic installation and maintenance. It features a high-performance industrial-grade quad-core CPU, precise alignment methods, and robust construction to meet various challenging environments.
Save to Favorites
Overview
Specifications

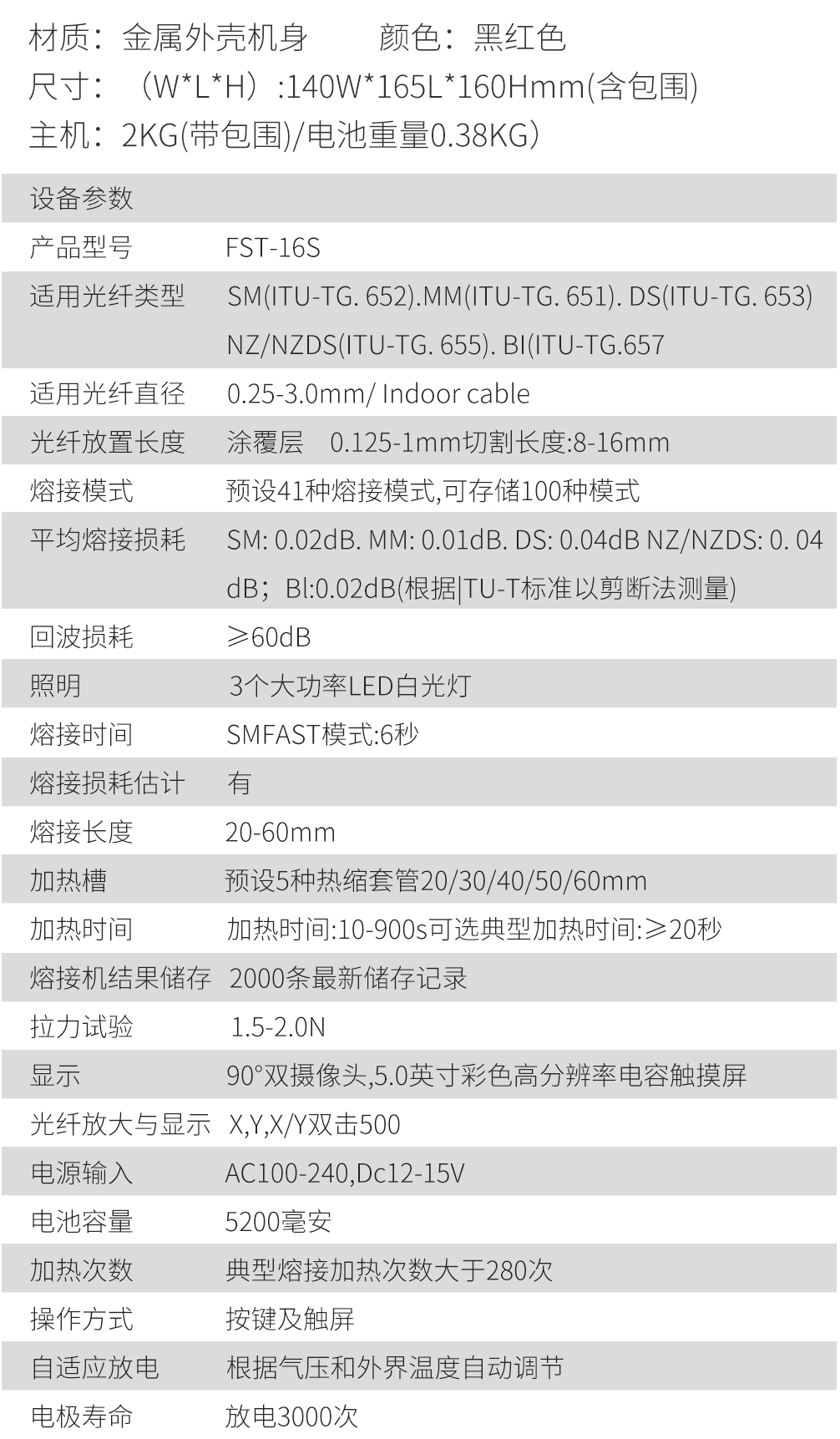

| Parameter | Value |
|---|---|
| Material | 金属外壳 |
| Color | 黑红色 |
| Dimensions (W*L*H) | 140W*165L*160Hmm(含包围) |
| Main Unit Weight | 2KG(带包围)/电池重量0.38KG |
| Applicable Fiber Types | SM(ITU-TG.652).MM(ITU-TG.651).DS(ITU-TG.653).NZ/NZDS(ITU-TG.655).BI(ITU-TG.657) |
| Applicable Fiber Diameter | 0.25-3.0mm/Indoor cable |
| Fiber Placement Length | 涂覆层0.125-1mm切割长度:8-16mm |
| Splicing Mode | 预设41种熔接模式,可存储100种模式 |
| Average Splicing Loss | SM:0.02dB MM:0.01dB DS:0.04dB NZ/NZDS:0.04dB BI:0.02dB(根据ITU-T标准以剪断法测量) |
| Return Loss | ≥60dB |

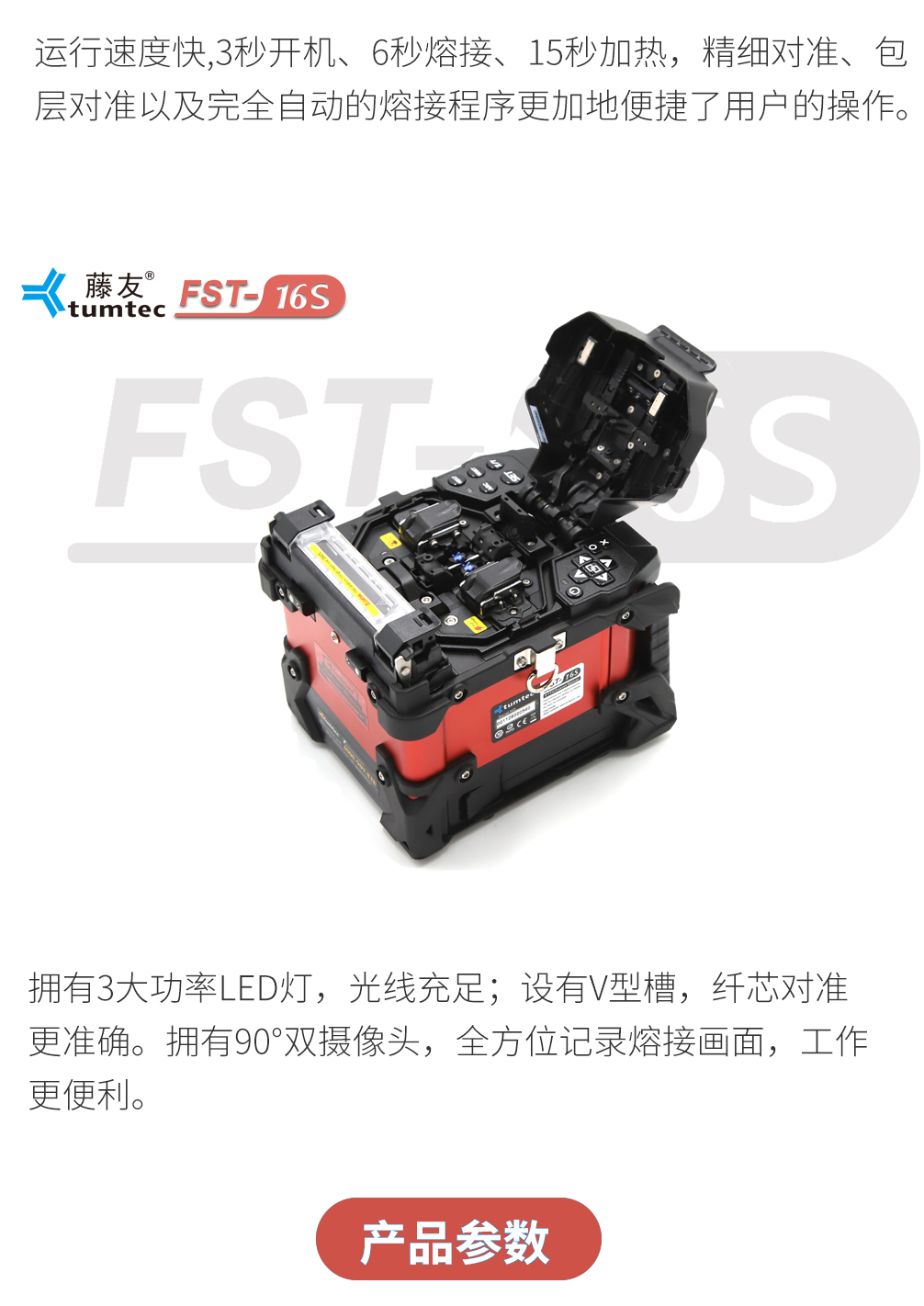

| Lighting | 3 complete plans大功率LED白光灯 |
| Splicing Time | SMFAST模式:6秒 |
| Splicing Loss Estimation | 有 |
| Splicing Length | 20-60mm |
| Heating Slot | 预设5种热缩套管20/30/40/50/60mm |
| Heating Time | 10-90s可选典型加热时间:≥20秒 |
| Splicing Results Storage | 2000条最新储存记录 |
| Tensile Test | 1.5-2.0N |

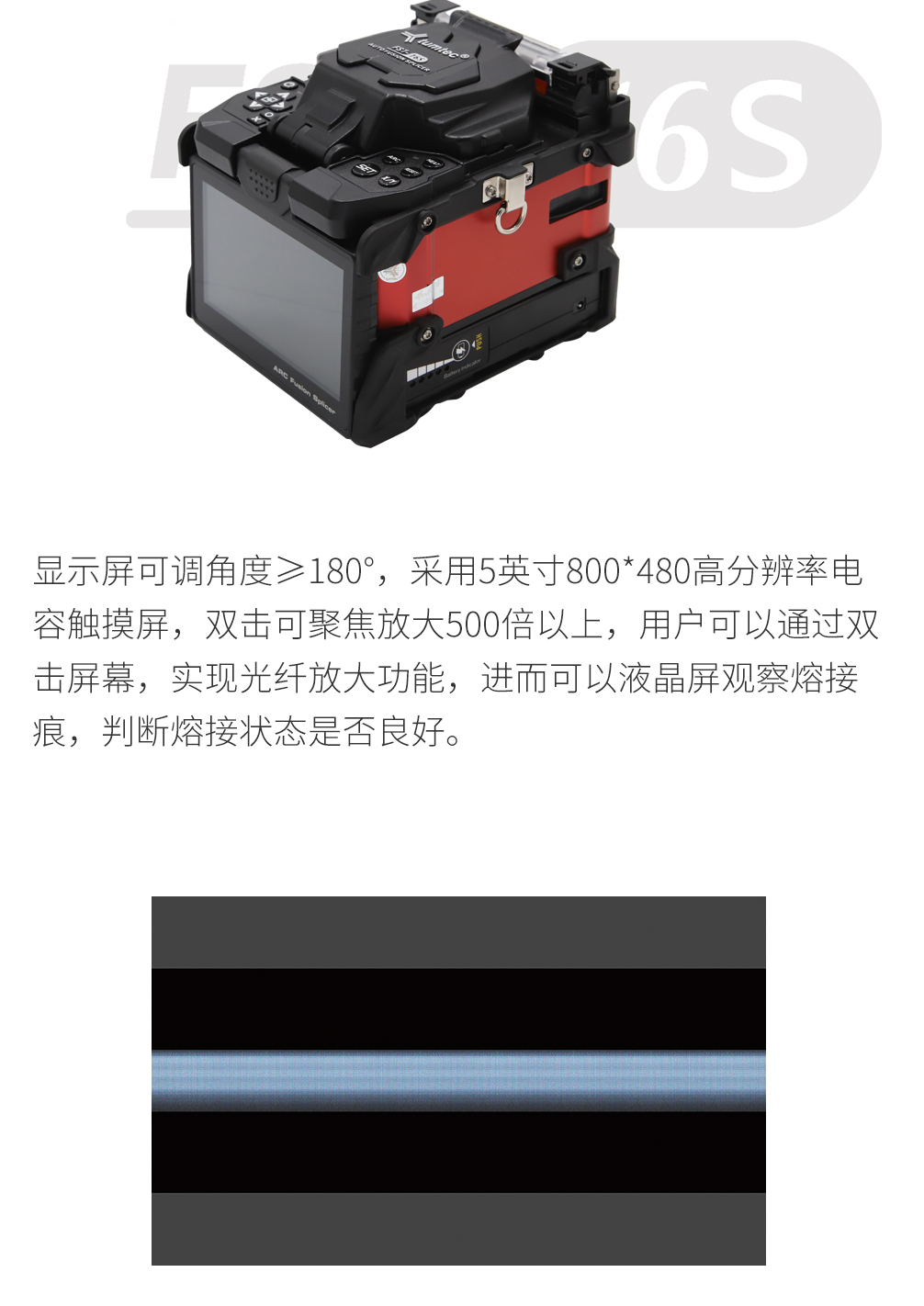

| Display | 90°双摄像头,5.0英寸彩色高分辨率电容触摸屏 |
| Fiber Magnification and Display | X,Y,X/Y双击500 |
| Power Input | AC100-240,Dc12-15V |
| Battery Capacity | 5200毫安 |
| Heating Cycles | 典型熔接加热次数大于280次 |
| Operation Mode | 按键及触屏 |
| Automatic Heating Adjustment | 根据气压 and 外界温度自动调节 |
| Electrode Life | 放电3000次 |

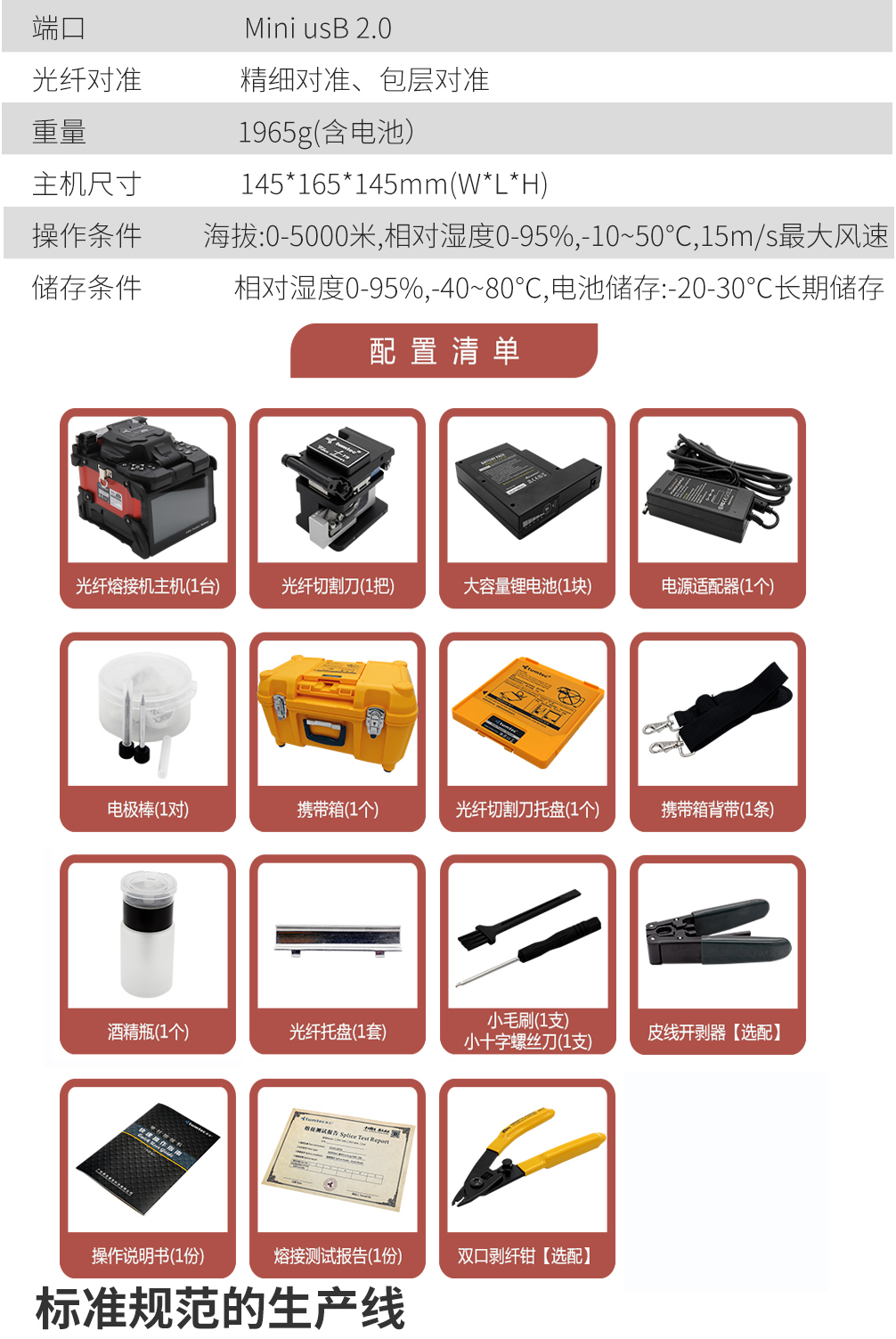

| Port | Mini USB2.0 |
| Fiber Alignment | 精细对准,包层对准 |
| Main Unit Dimensions | 145*165*145mm(W*L*H) |
| Operating Conditions | 海拔:0-5000米,相对湿度0-95%,-10~50°C,15m/s最大风速 |
| Storage Conditions | 相对湿度0-95%,-40~80°C,电池储存:-20~30°C长期储存 |
