JX-528 (80um) Fiber Cleaver
Save to Favorites

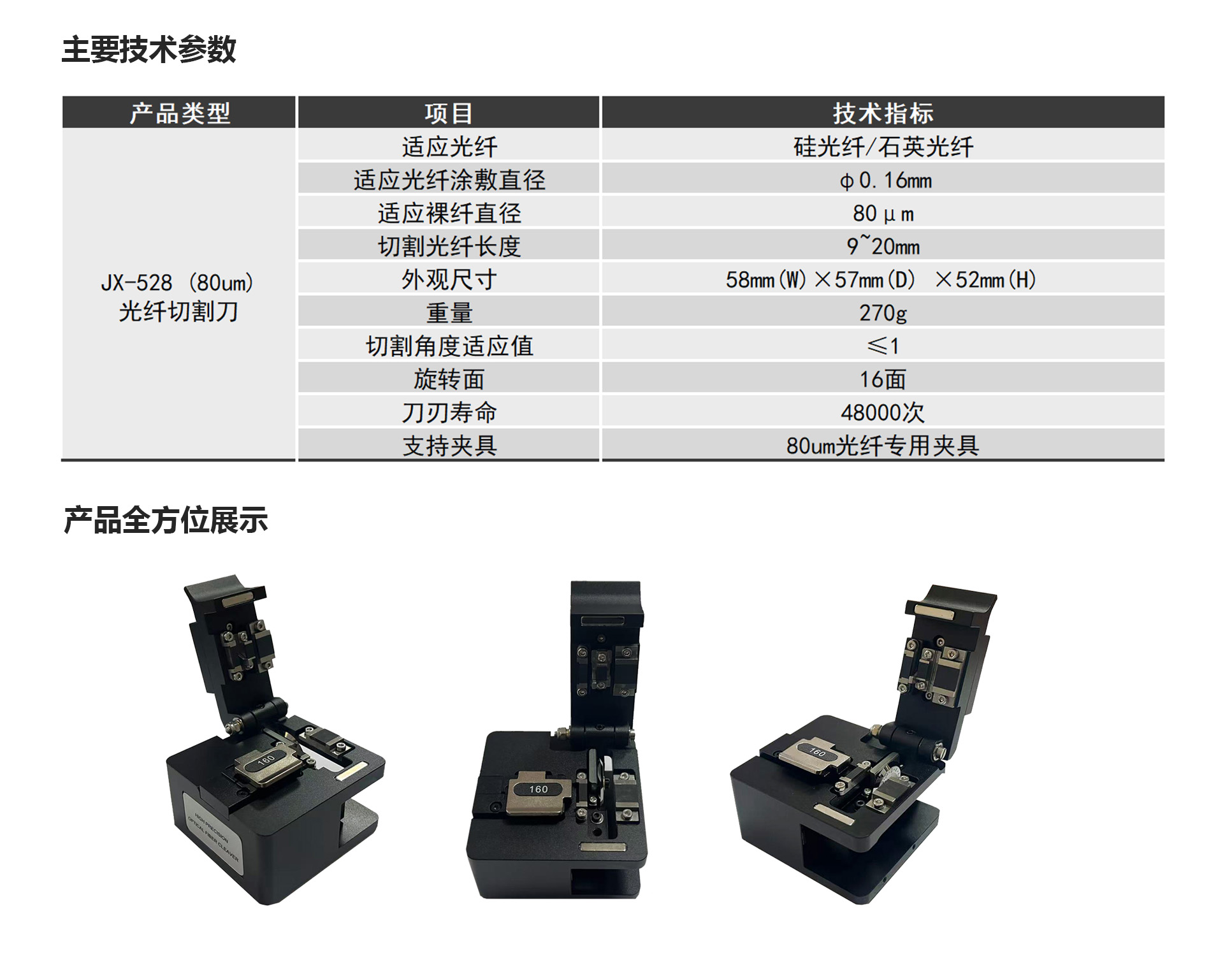

Specifications
| Parameter | Value |
|---|---|
| Compatible Fiber | Silicon fiber / Silica fiber |
| Compatible Fiber Coating Diameter | Φ0.16mm |
| Compatible Bare-Fiber Diameter | 80μm |
| Cutting Fiber Length | 9~20mm |
| Overall dimensions | 58mm(W)×57mm(D)×52mm(H) |
| Weight | 270g |
| Compatible Cutting Angle | ≤1 |
| Rotating Surface | 16 Facets |
| Cutting Edge Life | 48000 times |
| Supported Fixtures | Dedicated Fixture for 80um Fiber |
