SYJK-6ZFC-1NS
SYJK-6ZFC-1NS is a precision motion control system designed for high-accuracy applications requiring macro and micro motion capabilities.
Save to Favorites
Overview
Specifications

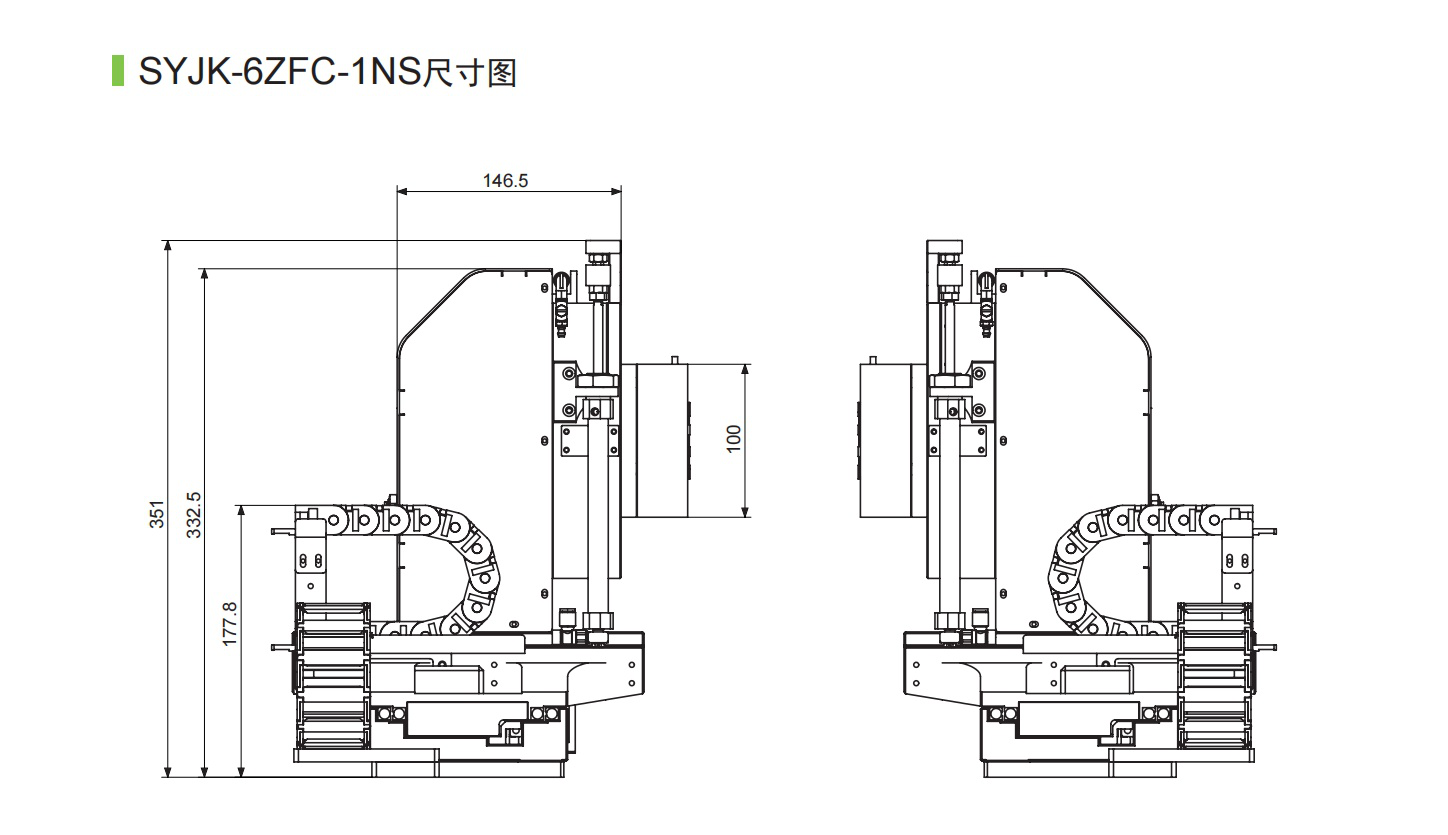

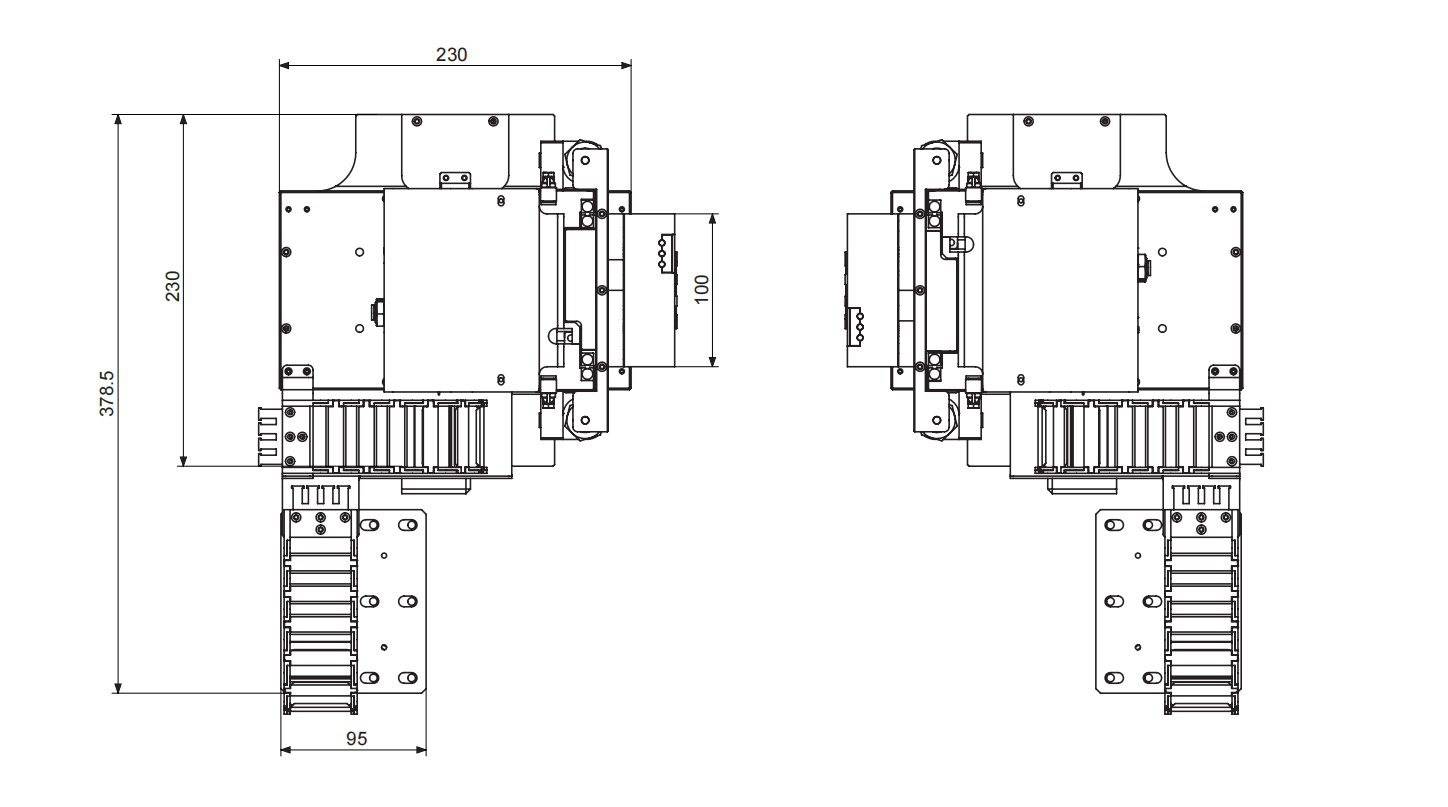

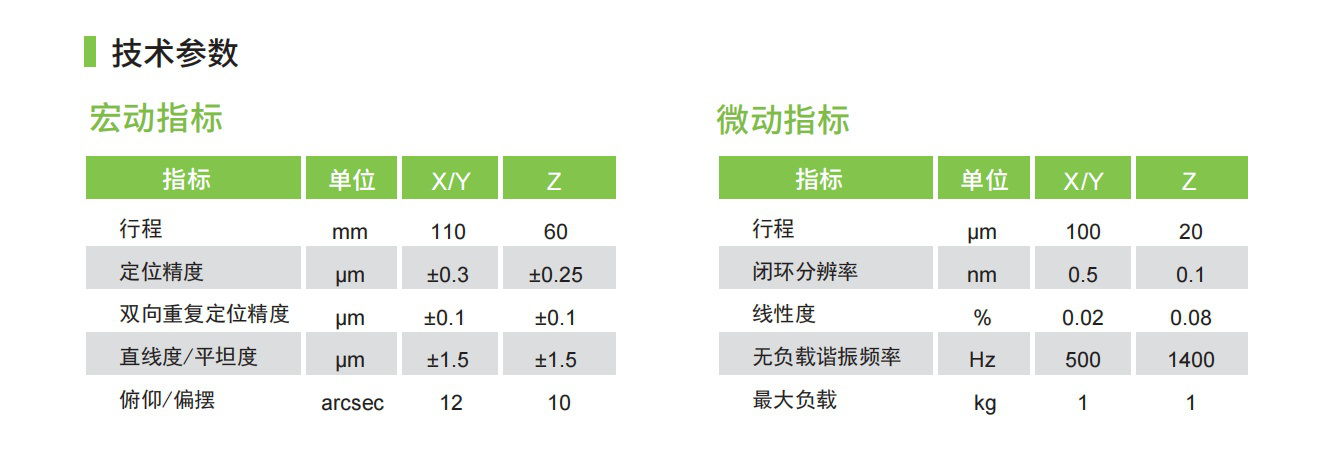

| Parameter | Value |
|---|---|
| Travel Range X/Y | 110mm |
| Travel Range Z | 60mm |
| Positioning Accuracy X/Y | ±0.3μm |
| Positioning Accuracy Z | ±0.25μm |
| Bidirectional Repeatability X/Y | ±0.1μm |
| Bidirectional Repeatability Z | ±0.1μm |
| Straightness/Flatness X/Y | ±1.5μm |
| Straightness/Flatness Z | ±1.5μm |
| Pitch/Yaw X/Y | 12arcsec |
| Pitch/Yaw Z | 10arcsec |
| Micro Travel Range X/Y | 100μm |
| Micro Travel Range Z | 20μm |
| Closed-loop Resolution X/Y | 0.5nm |
| Closed-loop Resolution Z | 0.1nm |
| Linearity X/Y | 0.02% |
| Linearity Z | 0.08% |
| No-load Resonant Frequency X/Y | 500Hz |
| No-load Resonant Frequency Z | 1400Hz |
| Maximum Load X/Y | 1kg |
| Maximum Load Z | 1kg |
