ARST Air Bearing Rotary Table (ARST-150)
Save to Favorites

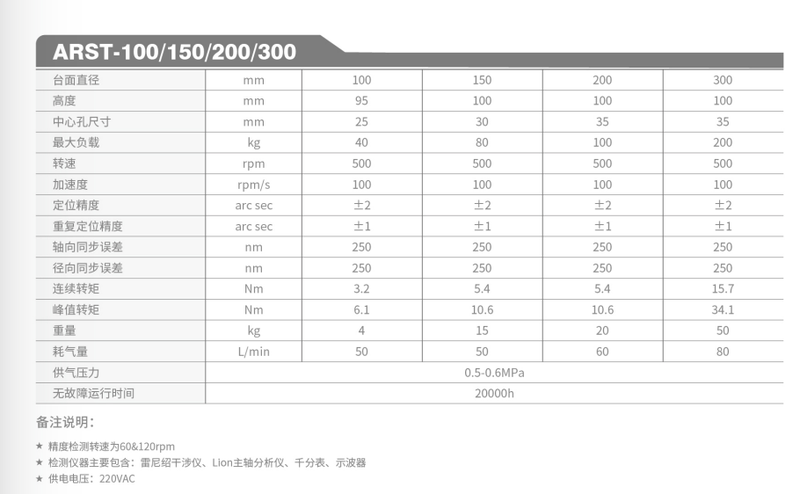

Specifications
| Parameter | Value |
|---|---|
| Table Diameter | 150 mm |
| Height | 100 mm |
| Center Hole Size | 30 mm |
| Maximum Load | 80 kg |
| Rotational Speed | 500 rpm |
| Acceleration | 100 rpm/s |
| Continuous Torque | 5.4 Nm |
| Peak Torque | 10.6 Nm |
| Weight | 15 kg |
| Air Consumption | 50 L/min |
| Air Supply Pressure | 0.5-0.6MPa |
| Failure-free Operating Time | 20000h |
| Positioning Accuracy [Precision Test Speed 60&120rpm] | ±2 arc sec |
| Positioning Repeatability [Precision Test Speed 60&120rpm] | ±1 arc sec |
| Axial Synchronous Error [Precision Test Speed 60&120rpm] | 250 nm |
| Radial Synchronous Error [Precision Test Speed 60&120rpm] | 250 nm |
| Supply Voltage | 220VAC |
