SC300
The SC300 is a high-precision control device designed for signal processing and data acquisition applications. It features advanced FPGA and ARM dual-core processors, ensuring efficient and accurate performance.
Save to Favorites
Overview

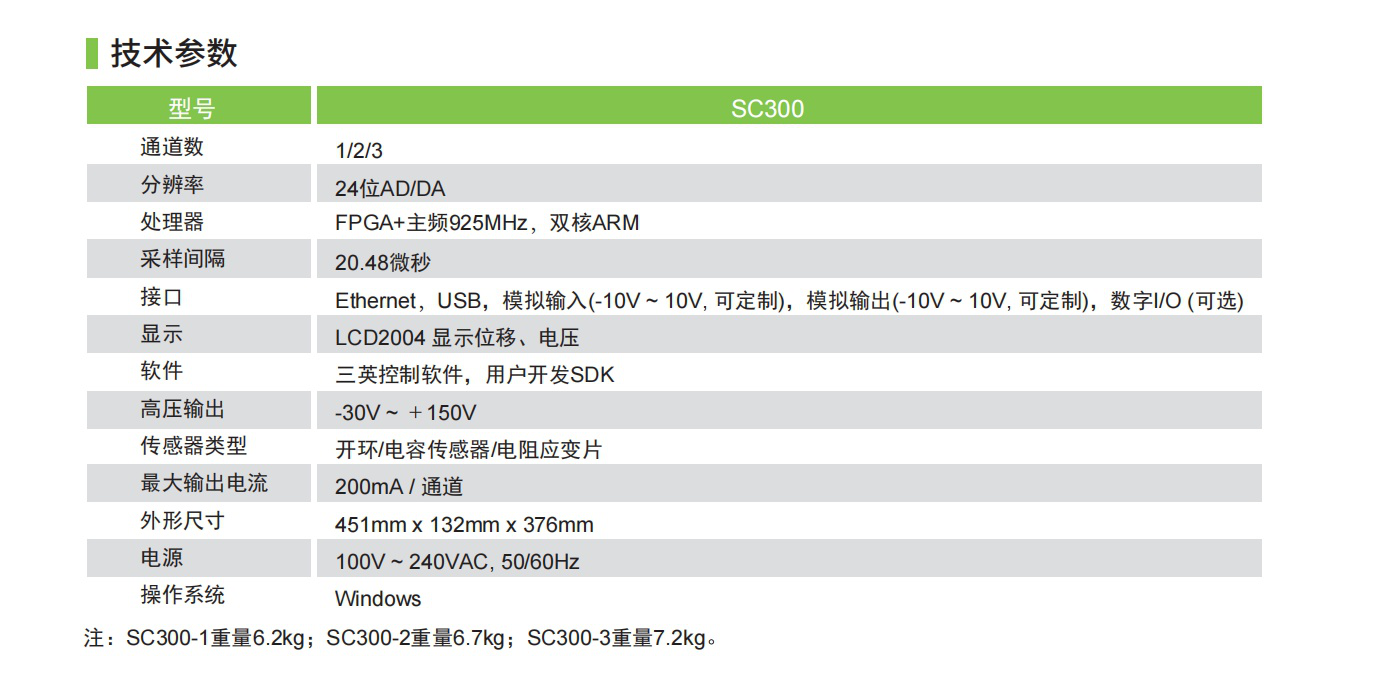

Specifications
| Parameter | Value |
|---|---|
| Number of Channels | 1/2/3 |
| Resolution | 24-bit AD/DA |
| Processor | FPGA+Main Frequency 925MHz, Dual-core ARM |
| Sampling Interval | 20.48μs |
| Interface | Ethernet, USB, Analog Input (-10V~10V, adjustable), Analog Output (-10V~10V, adjustable), Digital I/O (optional) |
| Display | LCD2004 Display Position, Voltage |
| Software | SYMC Control Software |
| Software | SDK for User Development |
| High Voltage Output | -30V~+150V |
| Sensor Type | Open-loop current sensor/capacitive sensor/resistance strain gauge |
| Maximum Output Current | 200mA/channel |
| Dimensions | 451mm×132mm×376mm |
| Power Supply | 100V~240VAC, 50/60Hz |
| Operating System | Windows |
| SC300-1 Weight | 6.2kg |
| SC300-2 Weight | 6.7kg |
| SC300-3 Weight | 7.2kg |
